R5905948 /12 Event Master Devices388
14.4 Rear I/O and Link Cards
Flow chart
Image 14-3

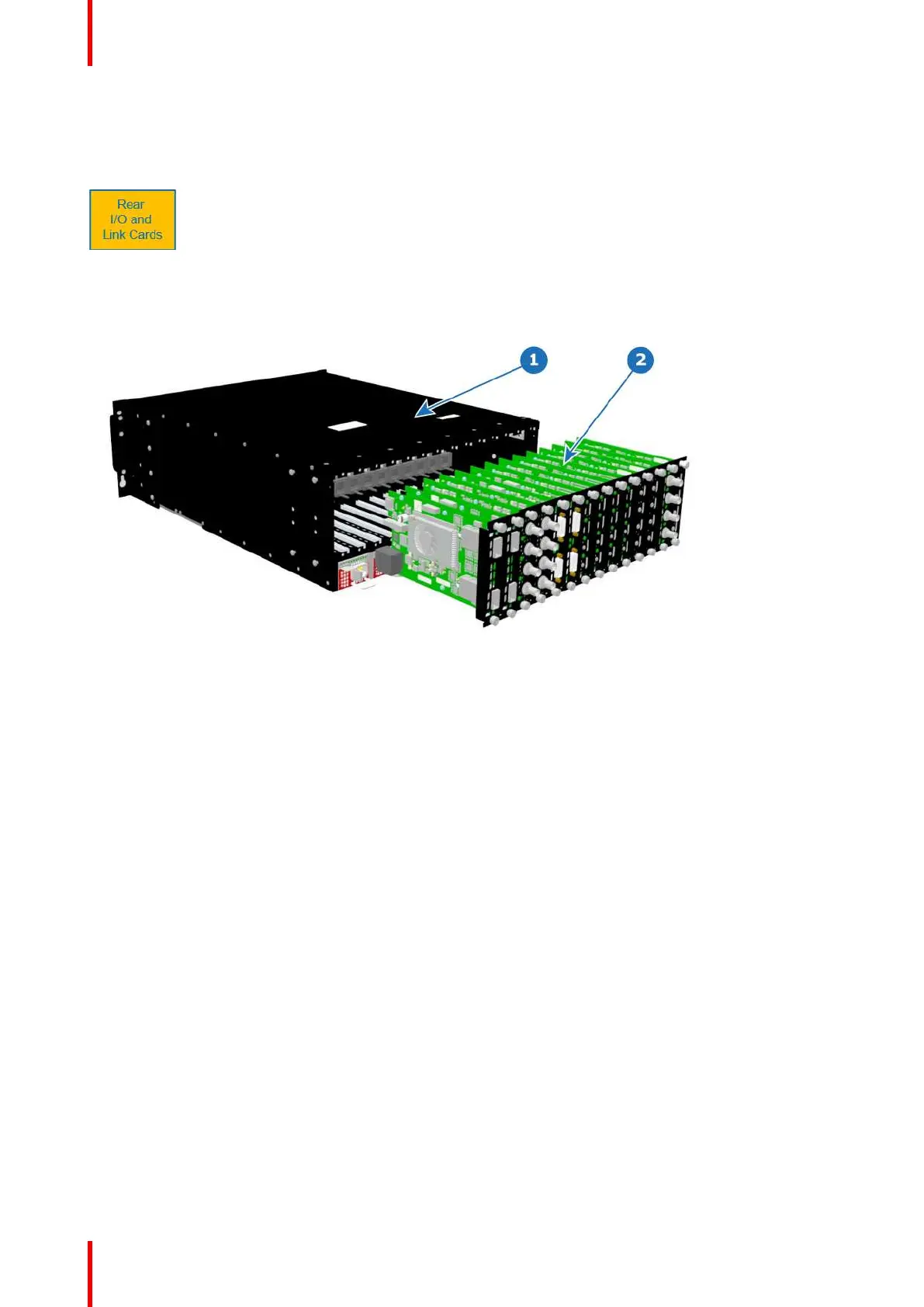

Overview
Image 14-4
1 Chassis
2 I/O and Link Cards
Concerned parts
R9004740 DVI Input
R9004741 SDI Output
R9004742 SDI Input
R9004743 HDMI Output
R9004744 DP/HDMI Input
R9004745 DVI Output
R9004746 Link Card
R9004765 Quad DP 1.2 Output
Board
R9004785 Tri-Combo Input
R9004786 Tri-Combo Output
R9004791 Quad HDMI Input Board
R9004792 Quad HDMI 2.0 Output
Board
R9004793 Quad DP 1.2 Input Board
Necessary tools
Phillips Screwdriver #2.
How to remove a card
1. Locate the card you wish to replace.
