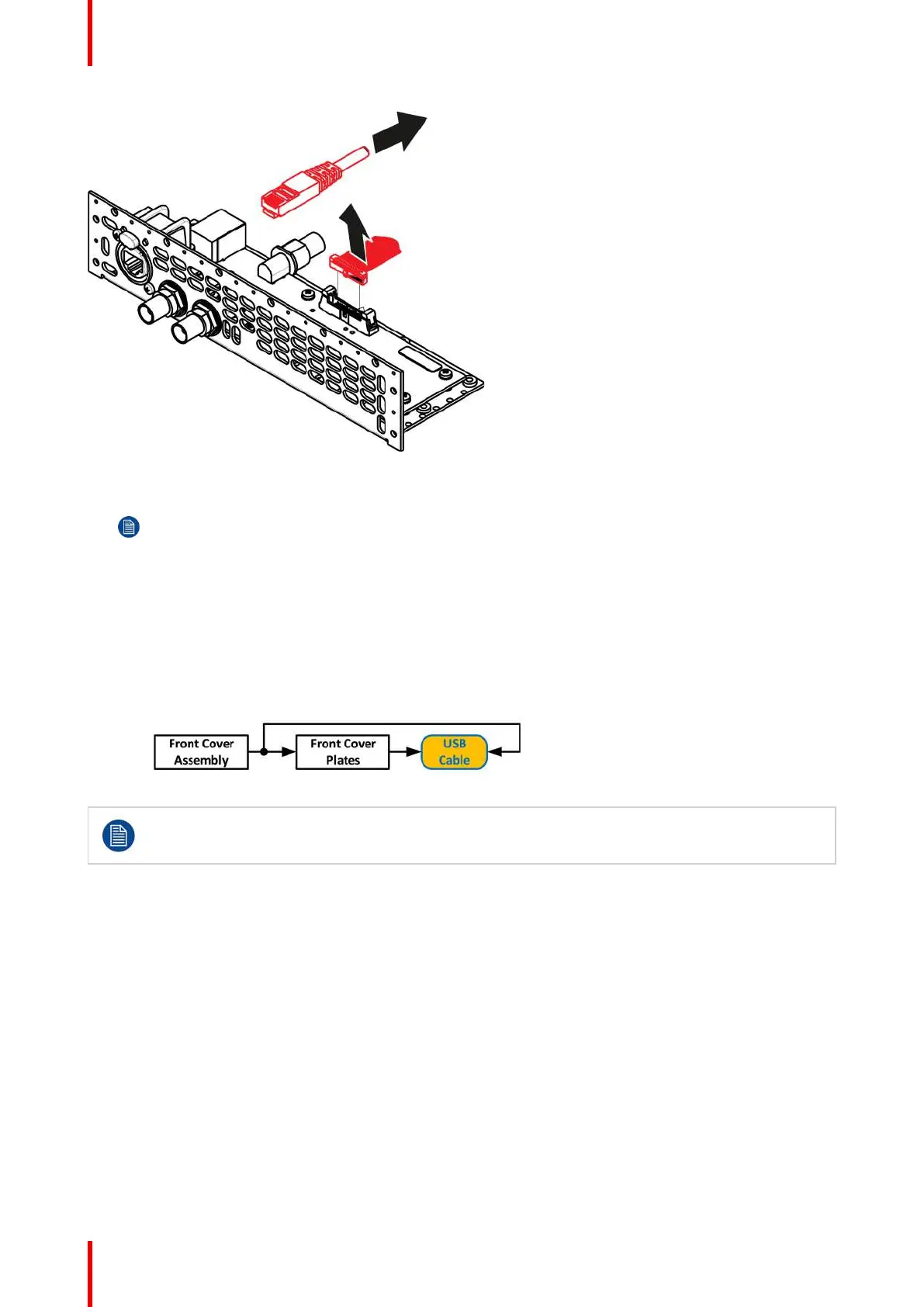

5. Unlatch the Ethernet cable from the connector and pull back and away from the Genlock board.
Note: This cable connects the Genlock board to the System-Power board.
How to install the Genlock Assembly
To install the Genlock Assembly follow the same procedure in the reverse order.
14.24 USB Cable
Flow chart
Image 14-66
The USB cable is connected to the USB extension cable (the cable that is connected to the System-
Power board). This procedure provides instructions how to disconnect it from both sides of the
cable.
Concerned parts
R767269K Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
• Nut socket.
How to remove the USB cable
1. Completely detach and pull the Front Cover assembly away from the unit (refer to the related procedure).
2. Disconnect the USB cable from the USB Extension cable (the other side of the cable is connected to the
System-Power board).
3. Disconnect the VFD and Front Keyboard Panel cables from the VFD assembly and Front panel boards.
E2 Maintenance
To Next Page
