R5905948 /12 Event Master Devices 421

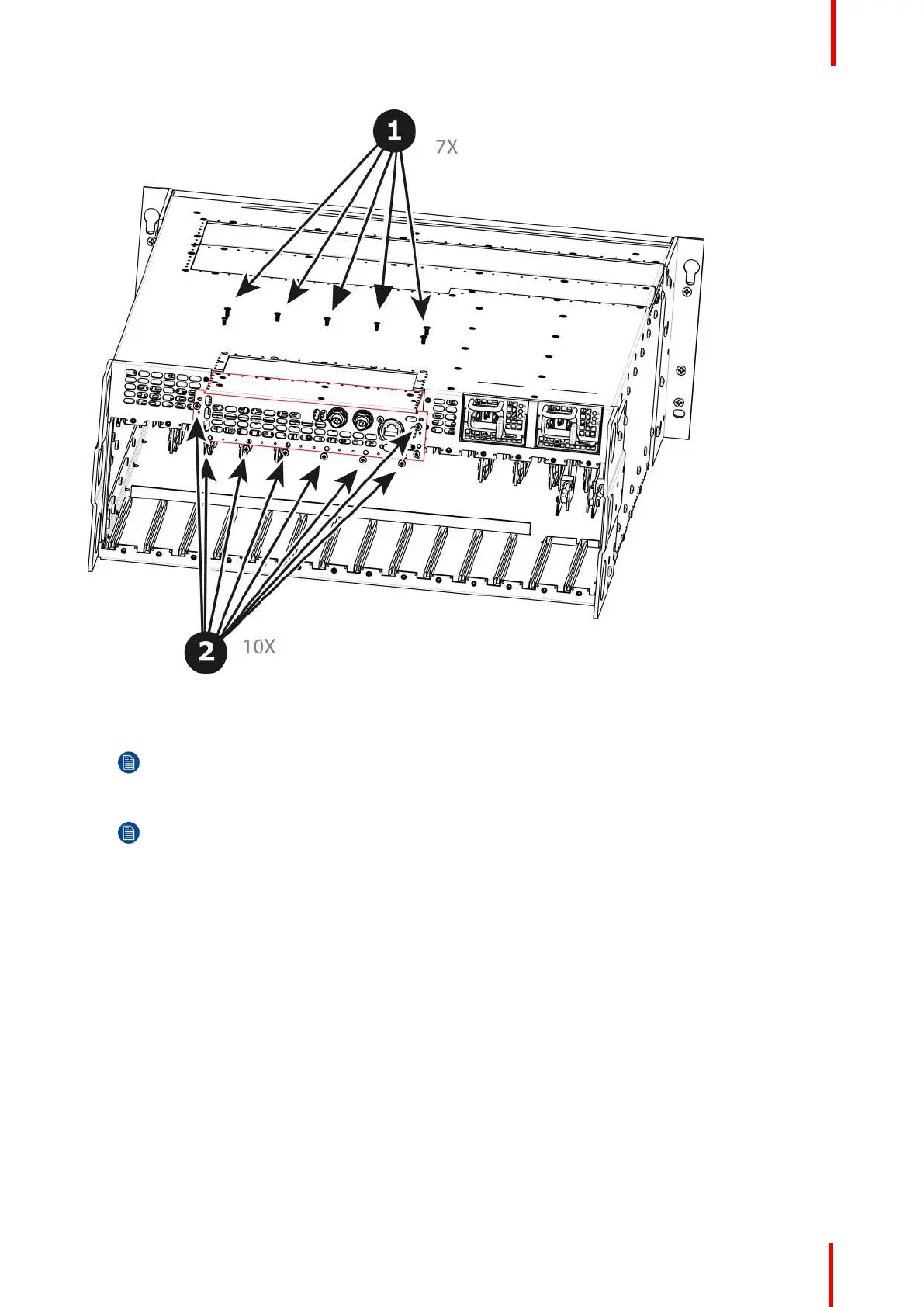

Image 14-64
3. Gently pull the Genlock assembly away from the unit . Don't pull the assembly too far back because there are
still 2 cables attached.
Note: At this point there are still 2 cables connecting the Genlock Assembly to the unit.
4. Unlatch the VFD ribbon cable from the connector and pull it up and away from the Genlock board.
Note: This cable connects the Genlock board to the System-Power board.
E2 Maintenance
