Overview

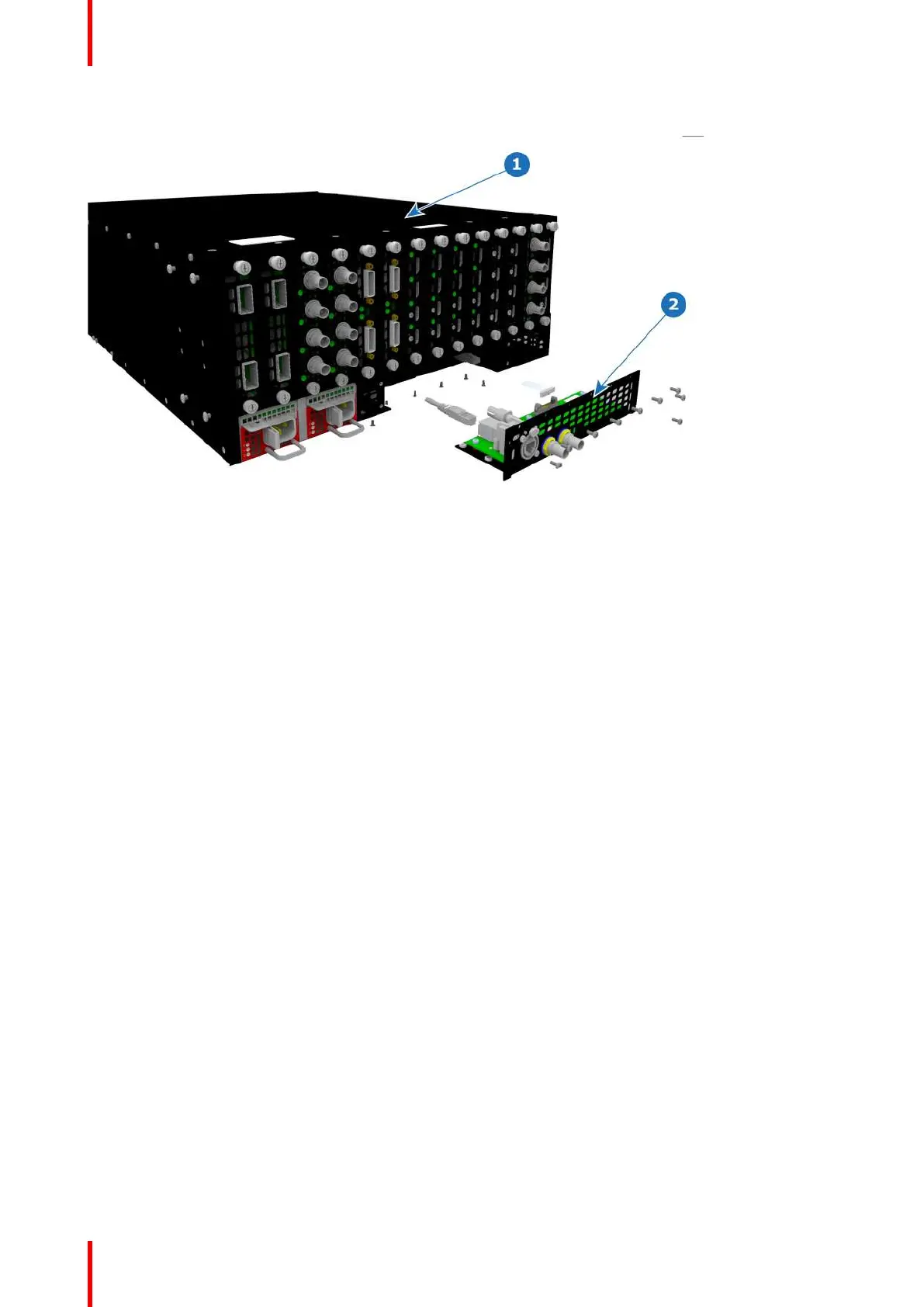

Image 14-63
1 Chassis
2 Genlock Assembly
Concerned parts
R9004748 Genlock Assembly
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Genlock Assembly
1. Remove the seven flat head screws (4-40 X .25) that attach the Genlock assembly to the rear side of the
chassis.
2. Remove the ten pan head screws (4-40 X .25) that attach the Genlock assembly to the rear of the chassis.
E2 Maintenance
