Description
The 12 destinations buttons have several pages which allows an operator to define custom orders and layouts
of mapped Destinations.
The name of the destination is displayed at the bottom of the GUI on the touchscreen. It can be shown or
hidden on preference.
The Display above button 12 will show the current page (1 – 8) of Destinations. Use the Arrow (up and down)
to change the page.
LED color under the Destinations buttons are BLUE. This indicates the Destination is selected when lit.
10.11 Layer buttons
Overview

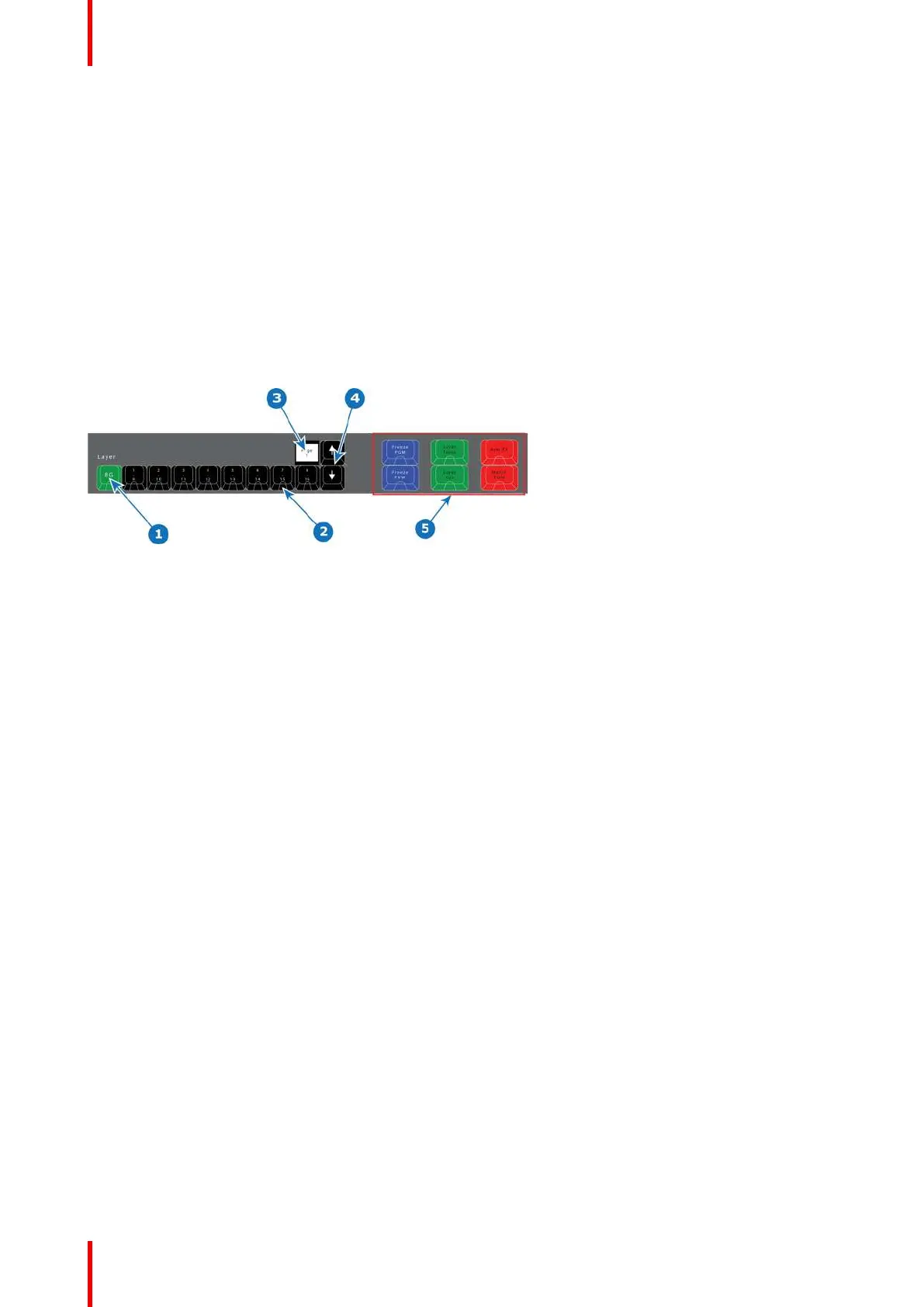

Image 10-11
1 Background button + 8 Layer buttons.
2 LED (Red or Green).
3 Layer range display (show the range of buttons — 1–8, 9–16,
etc.).
4 Arrow buttons (Layer range: up and down).
5 Layer Operator buttons.
Description
The system supports 9 Layer buttons with 13 pages (up to Layer 104). The red or green LEDs under these
buttons indicate the selection of layers. The first button is ALWAYS background layer and therefore marked
BG.
LED color under Layer buttons are RED and GREEN:
LED color
Description
Red Selected on PGM
Green Selected on PVW
Buttons 2 – 9 are marked 1 through 8 along the top row and 9 through 16 along the bottom row of their labels.
The Layer range display above the button marked 8/16 will show the range of buttons 1 – 8, 9 – 16, etc. Use
the Arrow (up and down) to change the range.
Layer Operator Buttons
The six larger buttons to the left of the Layer buttons are Layer Executor buttons mapped to the corresponding
functions in the EMTS. These are further explained below in chapter “Controller Operation”, page 359.
