R5905948 /12 Event Master Devices 507
16.5 Tri-Combo Input and Tri-Combo Output Card
Disassembly and Assembly
TCI and TCO card disassembly and assembly
See “Tri-Combo Input and Tri-Combo Output Card Disassembly and Assembly”, page 391 for details.
16.6 Top Cover
Flow chart
Image 16-6: Top cover
Overview

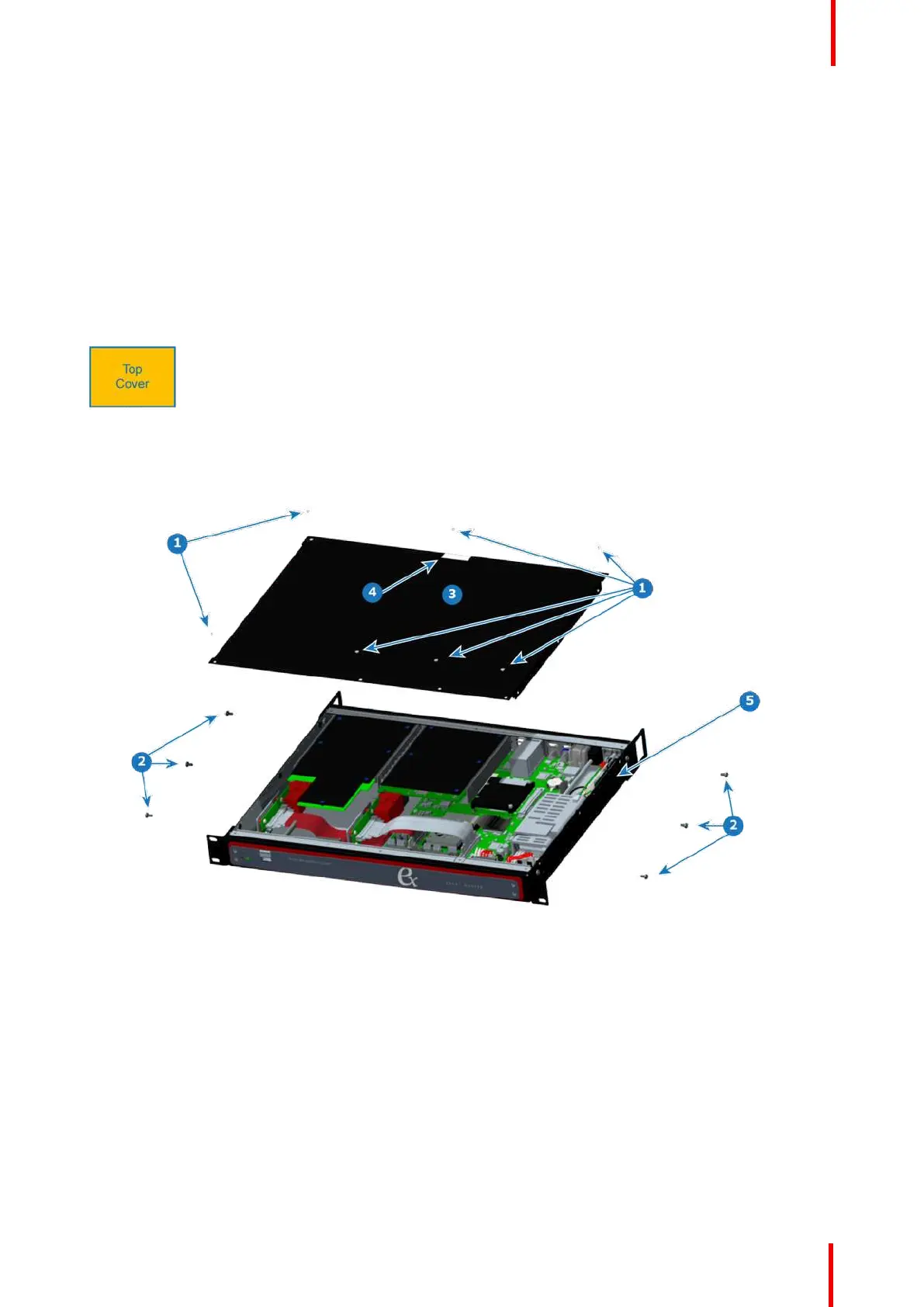

Image 16-7: Removal of EX top cover
1 Flat Head, 82° UC, 4-40 Screws
2 Pan Head, 6-32 Screws
3 Top cover
4 Tamper-evident label
5 Chassis
Concerned parts
Part Number
Description
02-1502002-90 EX Chassis
09-1502016-90 EX Chassis Cover
13-9850011-00 Tamper-evident Label
13-0280606-90 Flat Head, 82° UC, 4-40 Screw
13-0210808-90 Pan Head, 6-32 Screw
EX Maintenance
