Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices396
5. Install the six screws, but leave them loose.
6. Install the standoff through the front plate of the bracket.
7. Install the BNC washers and nuts.
8. Tighten the standoff to 5 in-lbs.
9. Tighten the BNC nuts to 12 in-lbs.
10. Tighten the six screws to 5 in-lbs.
11. Install the zip-tie mount and the zip tie.
12. Secure the fan cable with the zip tie.

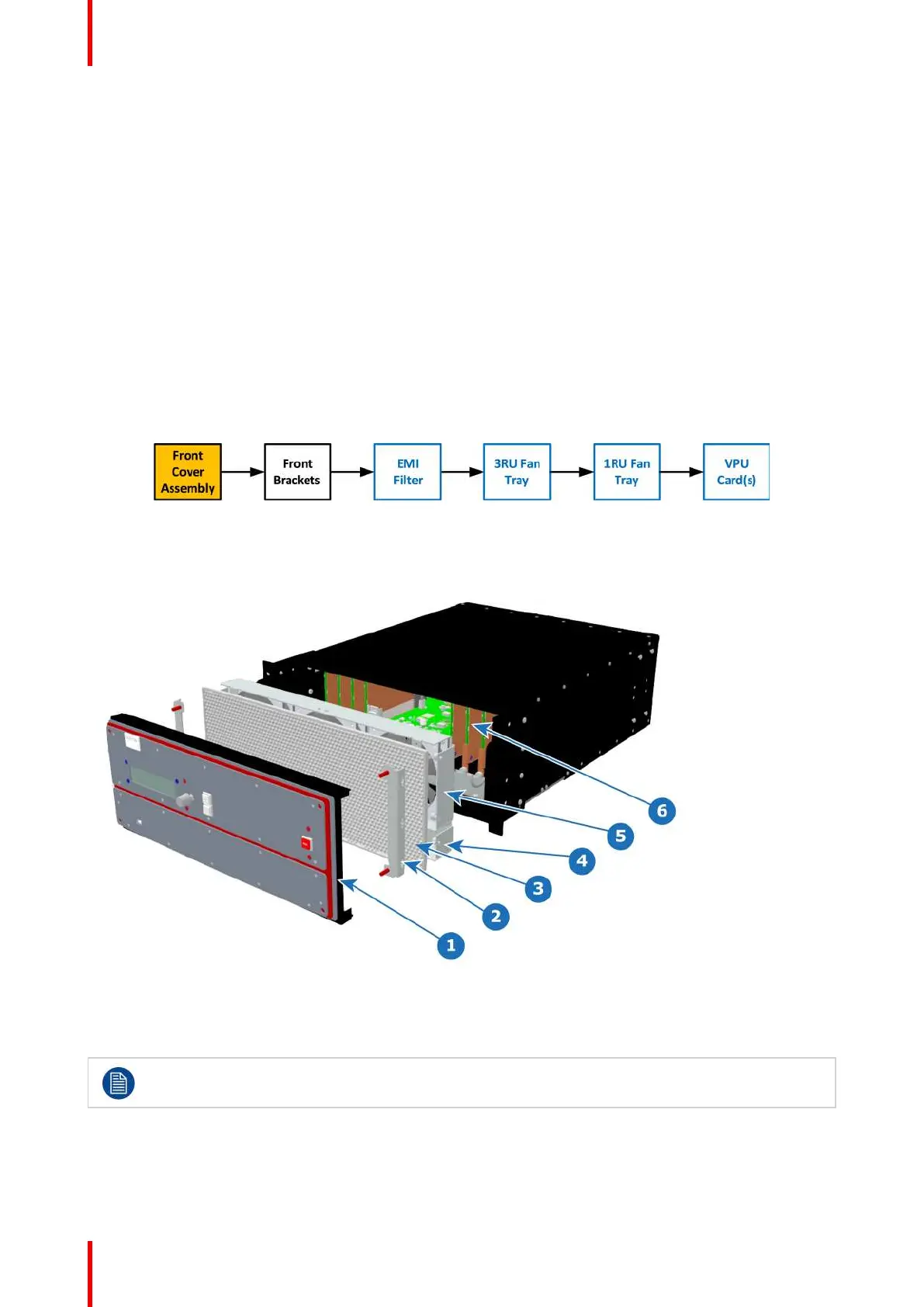

14.7 Front Cover Assembly
Flow chart
Image 14-17
Overview
Image 14-18
1 Front Cover Assembly
2 Front Brackets
3 EMI Filter
4 1RU Fan Tray
5 3RU Fan Tray
6 VPU Cards
The EMI filter is no longer needed, and it can be removed. If the EMI filter is left in place, it requires
servicing. See “E2 maintenance actions”, page 380.
Necessary tools
1 x Screwdriver HEX 0.05" 7.05" (Provide by Barco in the original package).
E2 Maintenance
