On the TCI card, make sure that the LED's length is a maximum of 1.2 mm below the bottom surface of the
PCBA.

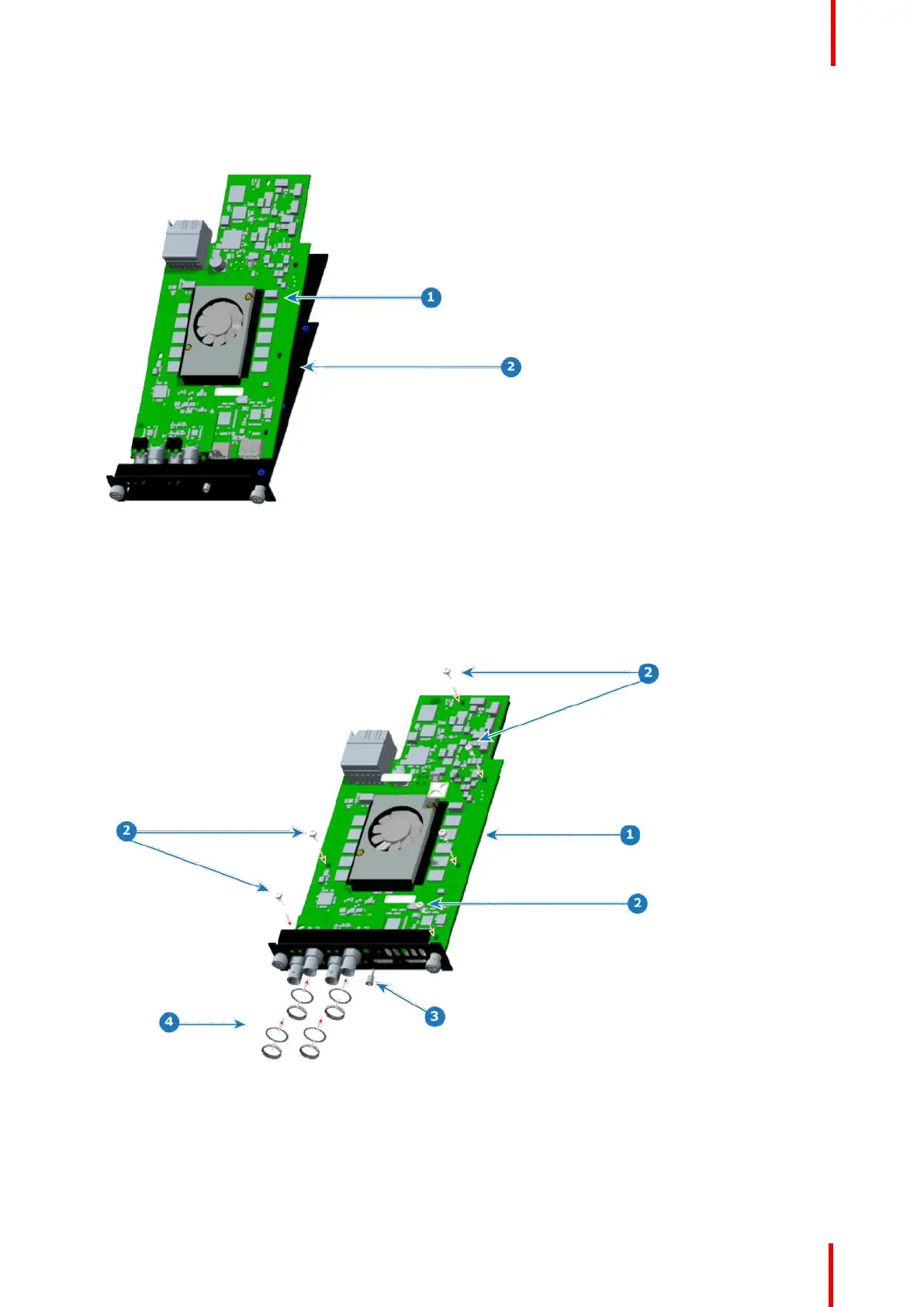

Image 14-15: PCBA and mounting bracket
1
PCBA (with mezzanine and fansink installed)
2
Mounting bracket
4. Place the PCBA on the sheet metal bracket, aligning the screw holes of the PCBA with the screw holes of the
bracket.
Image 14-16: Screws, standoff, washers, and nuts
1
PCBA (on mounting bracket)
2
Screws
3
Standoff
4
BNC washers and nuts
