R5905948 /12 Event Master Devices 487
Concerned parts
R9801120 Motherboard Battery Kit
Necessary tools
None.
How to remove the System battery
1. Carefully remove the battery from its socket.
How to install the System battery
To install the System battery follow the same procedure in the reverse order.
When a new battery is installed, the user need to place a sticker on the motherboard mount that
indicates when the battery was last replaced. The absence of sticker means the battery has never
been replaced. In this case the S/N sticker can be used for the reference date.

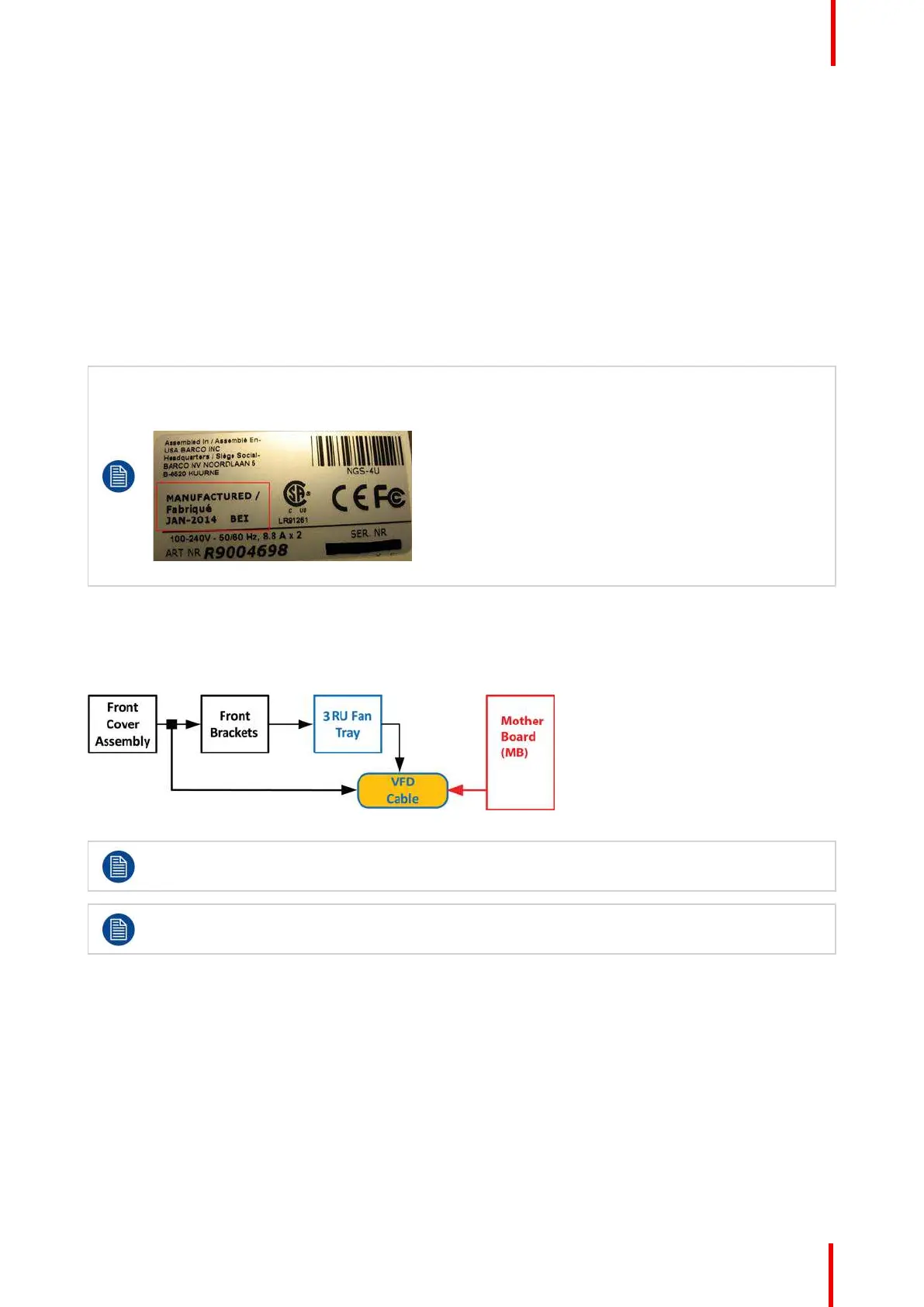

Image 15-76: e.g. E2 S/N sticker — Manufacturing date
15.31 VFD Cable
Flow chart
Image 15-77
The flat ribbon VFD cable connects the VFD assembly (front face) to the Motherboard.
One end of the flat ribbon VFD cable is clamped between the Motherboard and the Motherboard
mount. Remove this cable requires to separate these parts.
Concerned parts
R767283K S3 Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the VFD Cable
1. Remove the front panel assembly and pull it away to expose the cables behind it (refer to the related
procedure).
S3 Maintenance
