Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 145

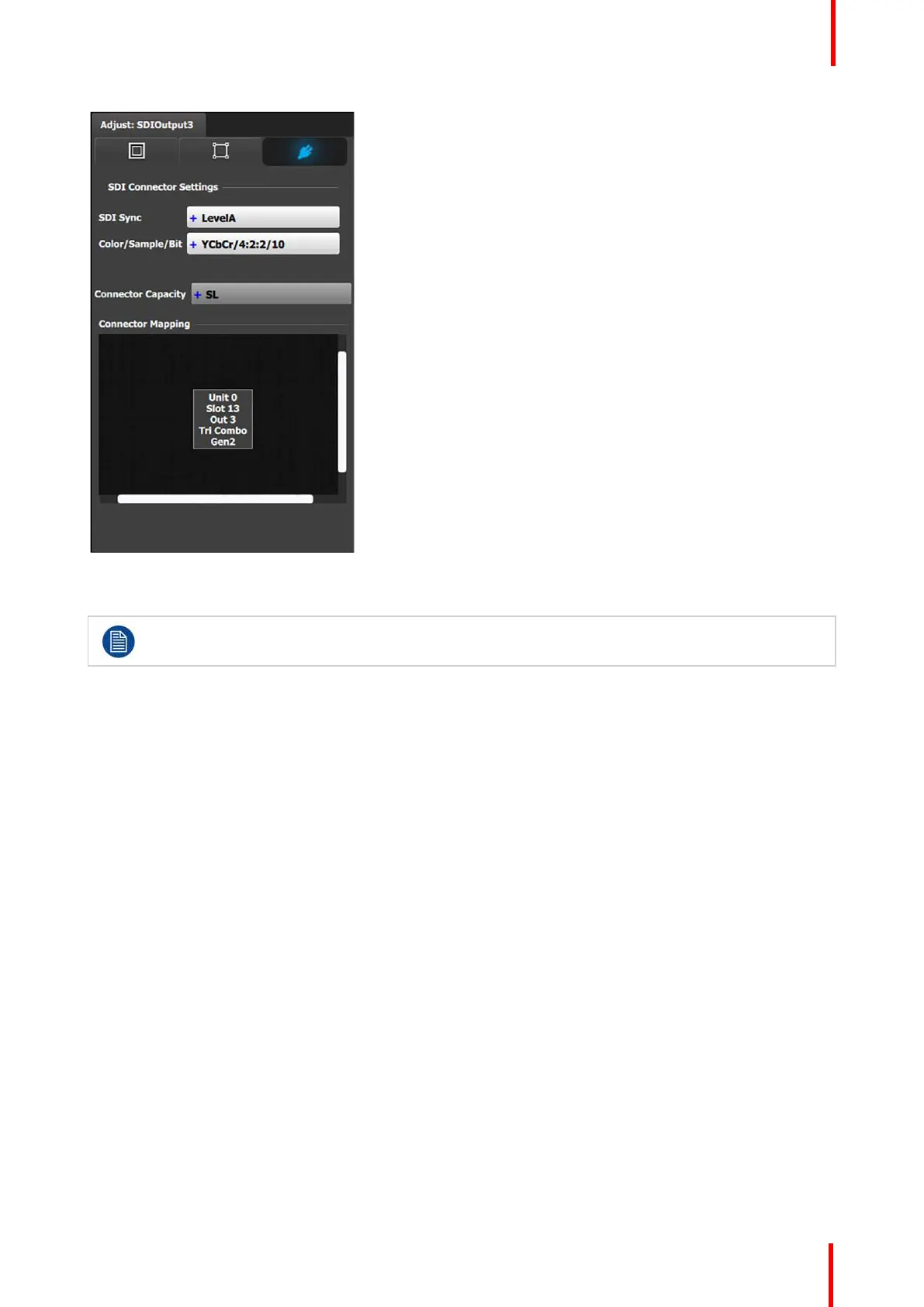

Connector Menu: Output Adjustment—SDI
For SDI outputs:
• SDI Sync (available with SDI connector type) :
allows a choice between HD (1.5Gb), 3G (3Gb)
Level A, Level B, Level A 2SI, or Level B 2SI.
• The SDI Sync options vary, depending on the
format of the Outputs. For example, for:
- NTSC/PAL—the SDI Type can be only SD.
- 1080i or 1080p, with a refresh rate less than or
equal to 30 Hz—the SDI Type can be only HD.
- 1080p, with a refresh rate greater than 30 Hz—
the SDI Type can be:
◦ Level A (default)
◦ Level B
◦ Level A 2SI
◦ Level B 2SI
The 2SI options are available only if the Input/
Output configuration has 4 SDI connectors
from the same card, and the Output format is
either 1920 x 1080 or 2048 x 1080.
• Color/Sample/Bit: Adjusts the color space
(YCbCr), sampling rate (4:2:2) and bit depth (10)
of the output signal.
• Connector Capacity: If the connector is not
assigned to a destination the capacity can be
changed. Once included in a Destination
configuration this needs to be managed thru the
Adjust pane of the Destination.
The selection of HD (1080i) or 3G SDI (1080P) actually happens when the format type is selected in
the main tab.
6.16 Configuration Menu > Adjustment >
Destination Configuration
General
Output configurations that are created in the previous menus are assigned to destination in the Destination
Panel.
Description
Destination configuration menu is accessed by clicking on the Destination tab.
EM GUI orientation
