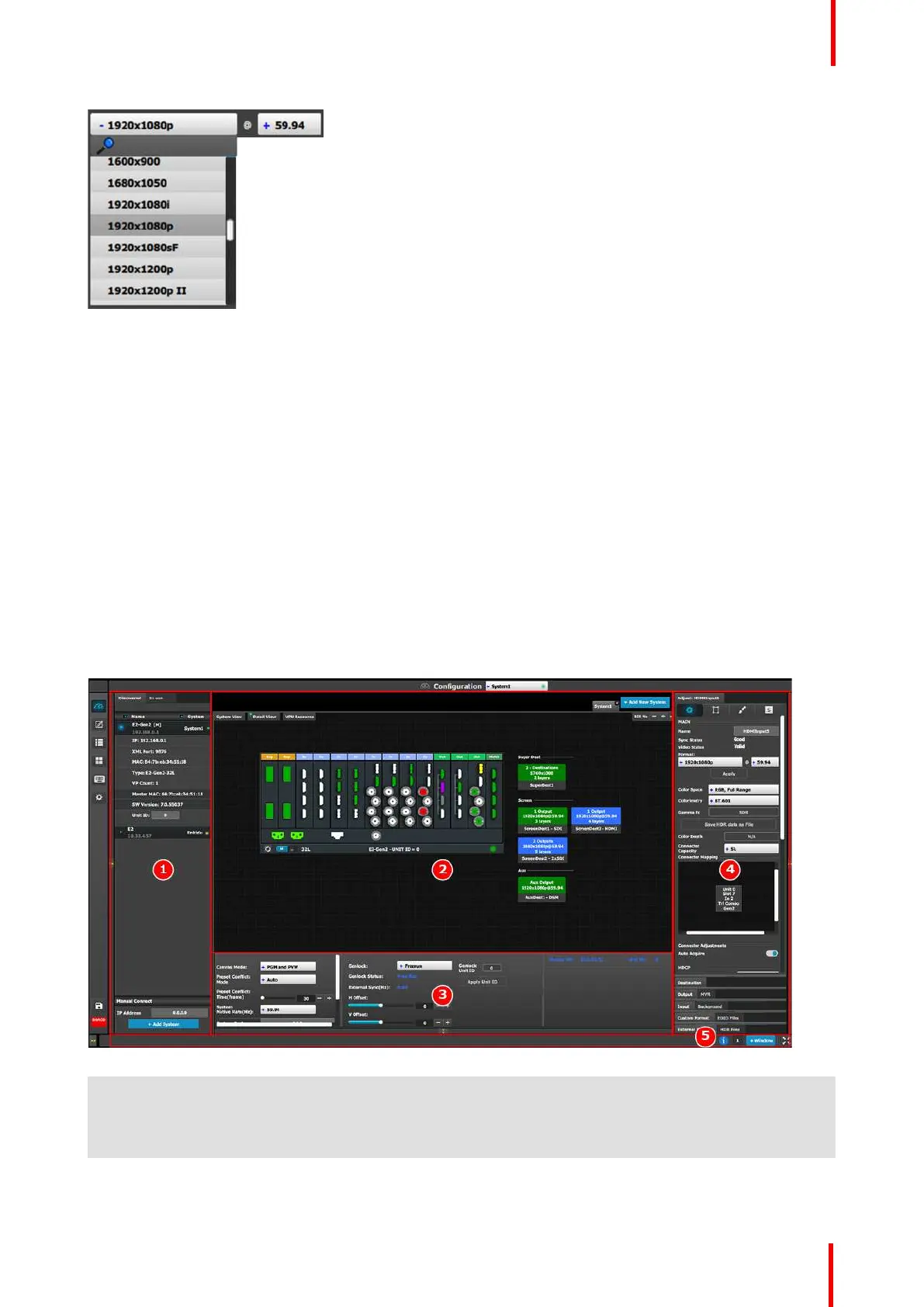

Image 6-5: Active drop-down
Properties:
• When clicking on the + symbol, a drop-down menu appears with the available choices.
• By typing in the space next to the magnifying glass all of the available numbers that match the typed text
appear, simplifying the search effort.
6.7 Configuration Menu
General
The Configuration menu is the module used to edit the Presentation Systems (creation, modification,
deletion). This page is the first page that appears when you launch the EM GUI software.
The user will use this page to add or remove devices to the selected system. The user also could modify the
parameters of these devices like inputs, backgrounds, outputs and destinations.
Description
The System configuration Menu is divided in 5 parts:
Image 6-6: System Configuration Menu
1 Network resource area Available resources on the network are listed in
this area. There are 2 tabs in this section:
• Devices in use in the selected system.
• Discovered devices on the local network.
2 System diagram area The workspace has three different views:
System, Detail, and VPU Resource.
EM GUI orientation
