Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 157
2. Drag the inner box of the selection box over the AUXes to be covered.
For example, drag the selection box over the other AUXes in the same row or column.

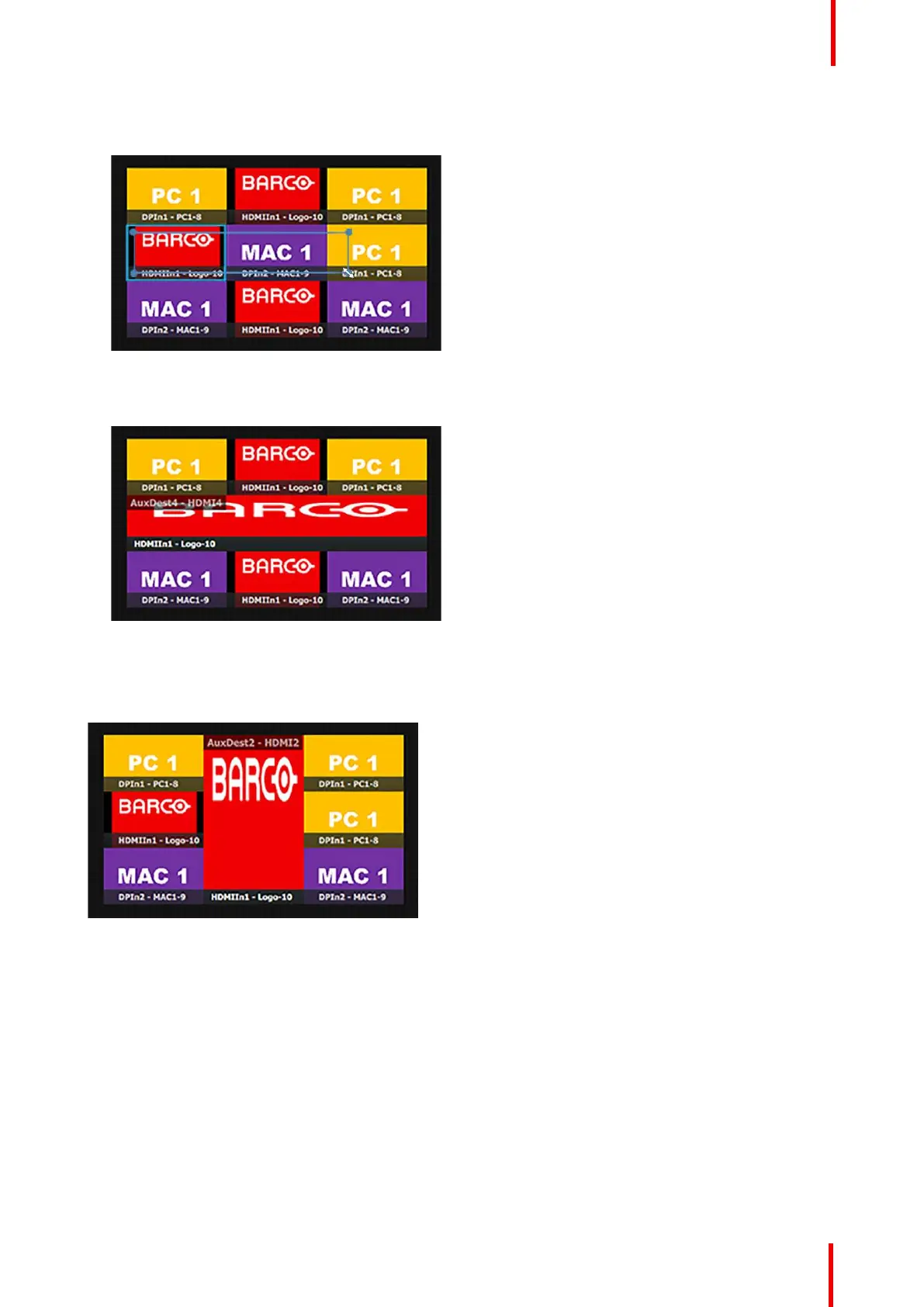

Image 6-37: AUX horizontal selection
3. Release the selection box.
The selected source covers the other AUXes in the same row or column.
Image 6-38: AUX horizontally scaled
4. Double-click on the scaled source to return it to its original size and starting AUX location in the Super
AUX.
In the same manner an AUX can be vertically scaled in the Super AUX.
Image 6-39: AUX vertically scaled
6.17 Configuration Menu > Adjustment >
Destination Configuration > Adjust Panel
General
Add, delete, and adjust Destinations with the Destination tab and Destination Adjust panels.
How to add Destination(s)
To assign an output configuration to a destination...
1. Select the output configuration (Output tab).
EM GUI orientation
