R5905948 /12 Event Master Devices424

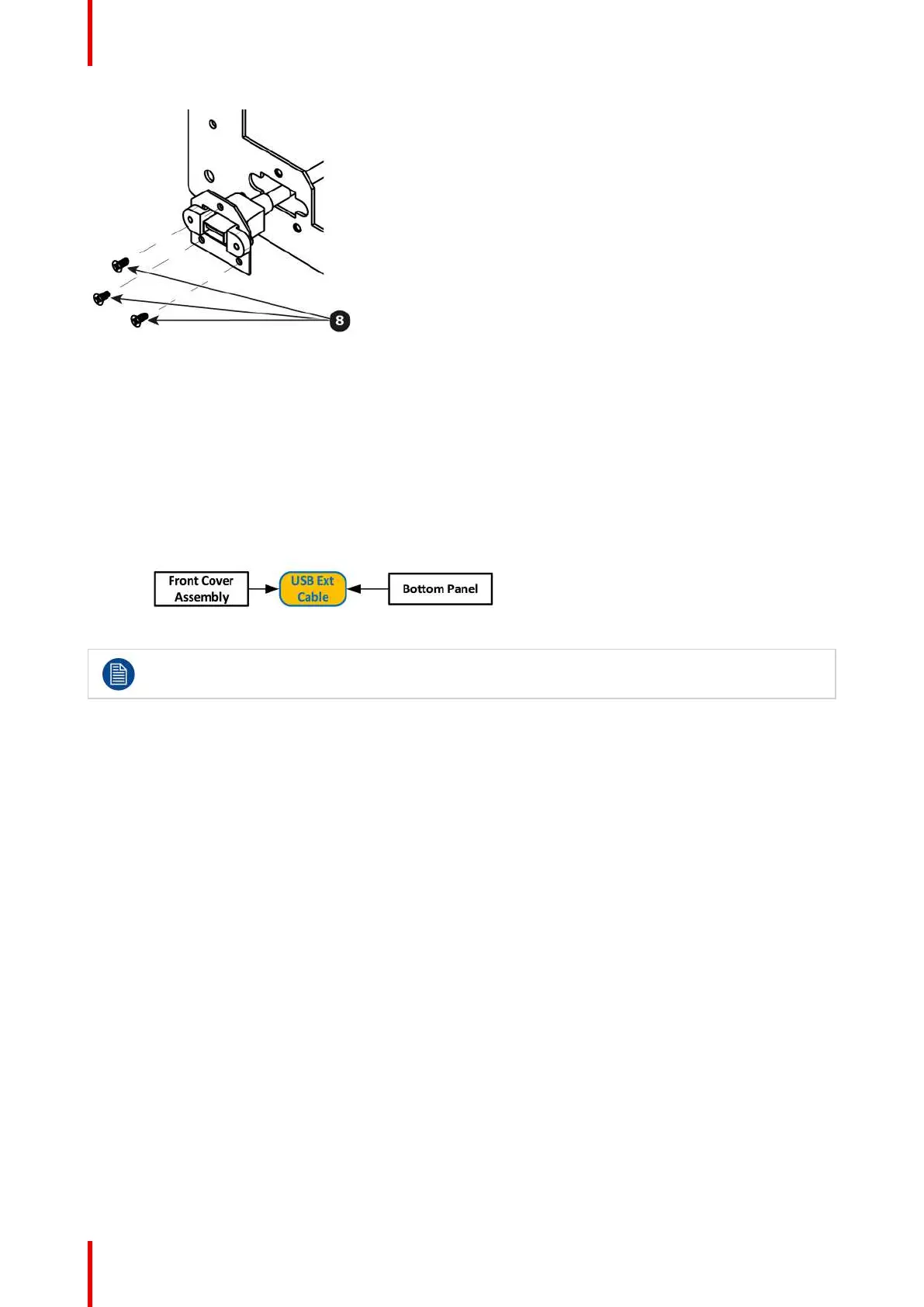

Image 14-68
9. Remove the USB cable.
How to install the USB cable
To install the USB cable follow the same procedure in the reverse order.
14.25 USB Extension Cable
Flow chart
Image 14-69
The USB Extension cable connects the USB cable to the System Power board. This procedure
provides instructions on how to disconnect the cable on both sides.
Concerned parts
R767269K Cable Kit Set
Necessary tools
1 x Phillips Screwdriver #2
How to remove the USB Extension cable
1. Partially remove the front panel assembly and pull it away to expose the cables behind it (refer to the related
procedure).
2. Disconnect the USB Extension cable from the USB cable.
3. Gently push the cable through the grommet located in the 1RU tray.
