R5905948 /12 Event Master Devices 511
Concerned parts
Part Number
Description
B3248009D Motherboard fansink
Necessary tools
1x Phillips Screwdriver #1
How to remove the CPU module
1. Remove the top cover.
2. Remove the two screws from the side of the CPU module that is closest to the Event Master card slots.

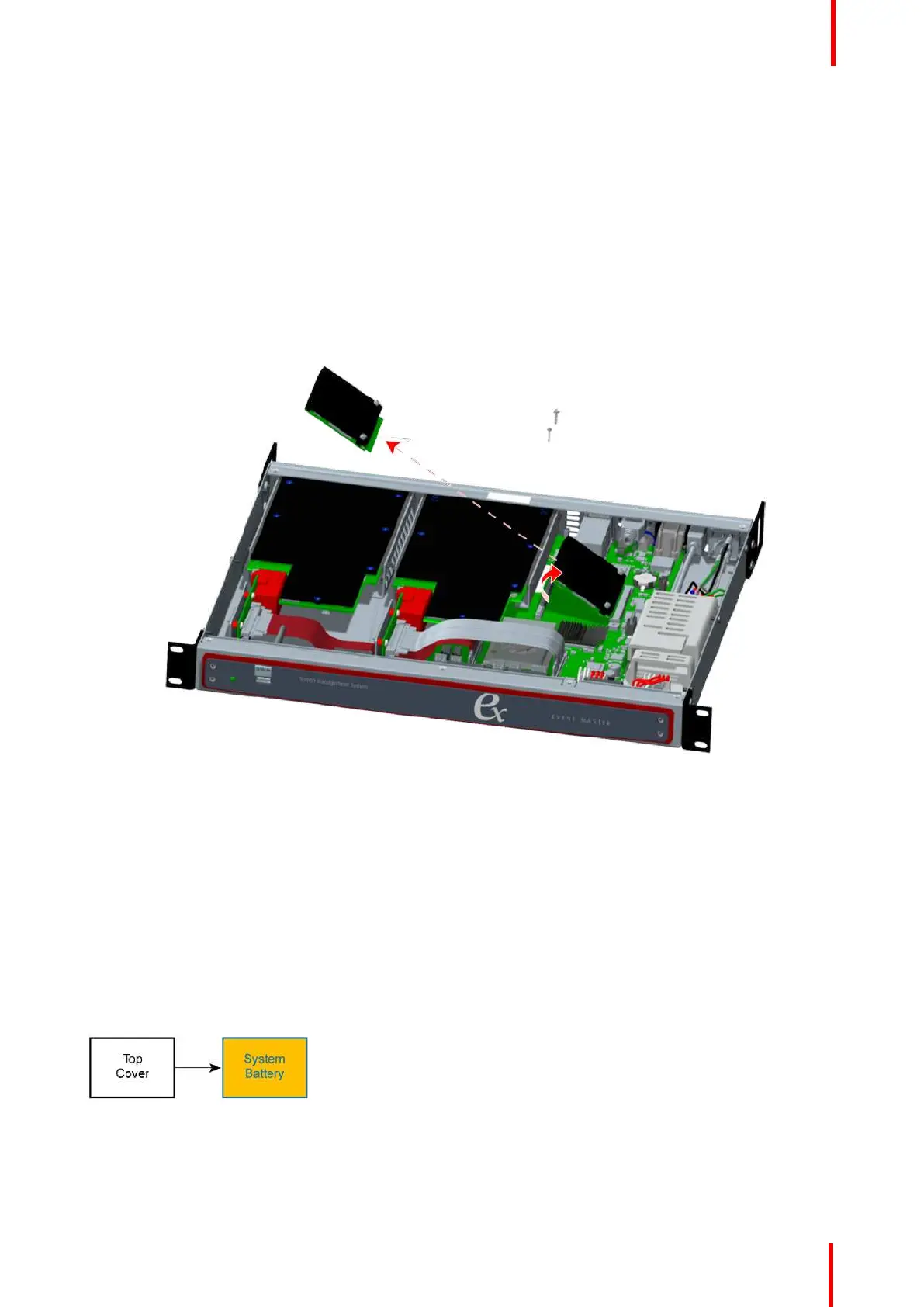

Image 16-13
3. Lift the freed edge of the CPU module, and pull it gently from the CPU-module connector on the
motherboard.
4. Remove the CPU module from the chassis.
How to install the CPU module
To install the CPU module in the EX chassis, follow the steps of the removal procedure in reverse order.
16.9 System Battery
Flow chart
Image 16-14: System battery
EX Maintenance
To Next Page
