R5905948 /12 Event Master Devices 493
15.33 3RU Fan Cable

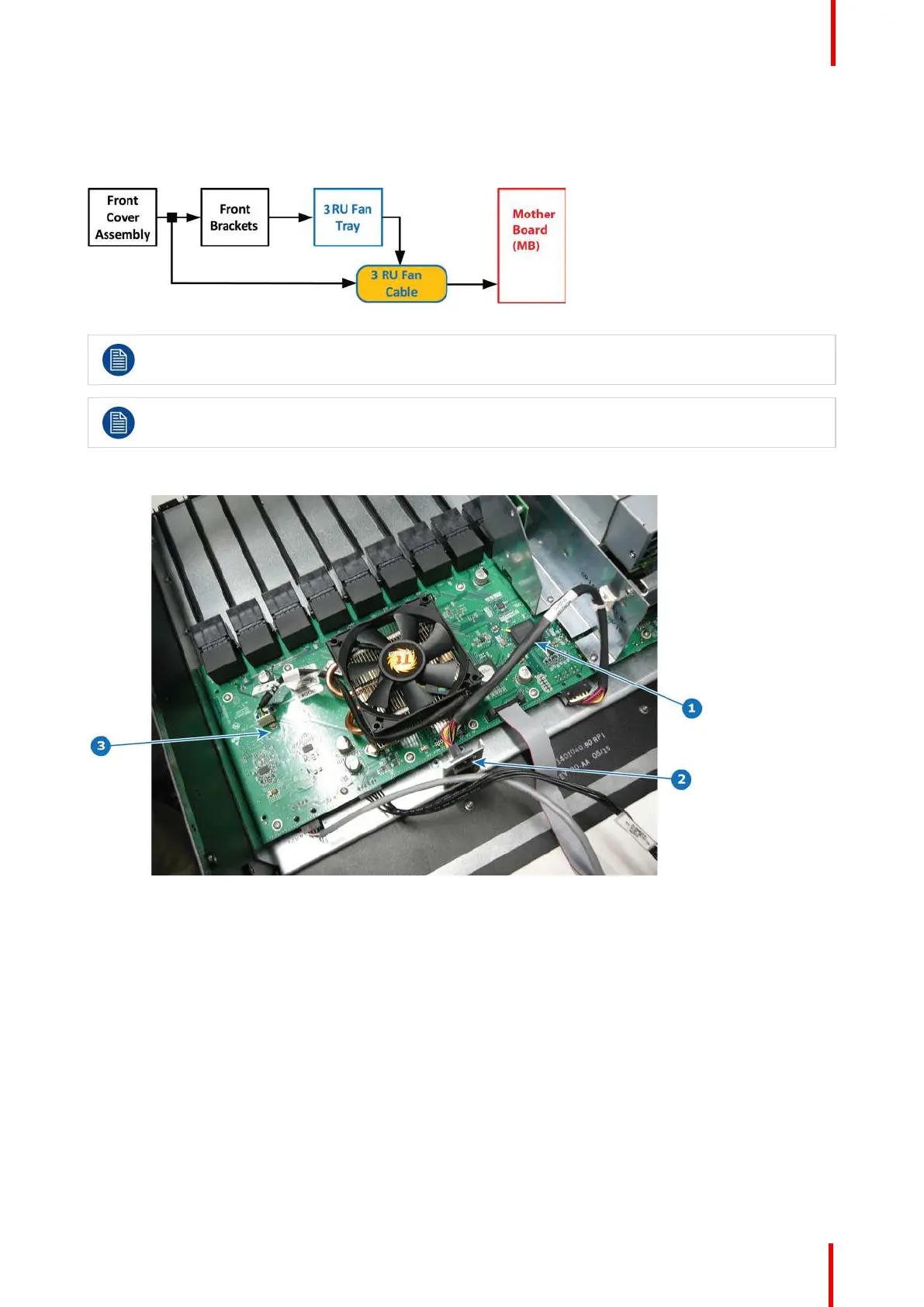

Flow chart
Image 15-86
The 3RU cable assembly provides power to the 3RU fans from the Motherboard.
One side of the cable is attached to a metal bracket that is accessible after the 3RU fan tray is
removed. The other side of the cable assembly connects to the Motherboard.
Overview
Image 15-87
1 3RU Fan cable
2 3RU Fan connector
3 Motherboard
Concerned parts
R767283K S3 Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the 3RU Fan cable
1. In order to access the motherboard, follow the steps detailed in the other procedures to remove the Front
Cover Assembly, Front brackets and 3RU Fan Tray.
S3 Maintenance
