R5905948 /12 Event Master Devices94
How to set a static IP address?
1. Ensure that the DHCP setting is Off.
2. From your network administrator, obtain a valid IP address, including subnet and gateway.
3. On the Ethernet submenu, select Set Static IP.
4. On the Set IP submenu, select SUB(net). The last character in the first field becomes available, as indicated
by the empty field and an underscore.
Note: You must change the SUB parameter before editing either of the other parameters.
5. Turn the ADJUST knob to change the first value. As you continue turning the knob, you can change all three
values in this field. Values range from 000 to 255 in all four fields.
6. Press SEL to accept your change in the first field. The last character in the next field becomes available.
7. Continue until you have created the subnet value you want. Press SEL.
8. Make similar changes in the GW and IP fields.
9. Press SEL to accept your final change.
If you press ESC at any time before accepting your final change, all your edits will be removed, and
the original values restored.
5.10 System menu > VFD brightness (display
brightness)
General
The VFD Brightness submenu adjust the intensity of the front panel vacuum fluorescent display (VFD)
screen. The adjustment range is +0 to +6, with +6 being the brightest. The default setting is +3.
5.11 System menu > Diagnostics
General

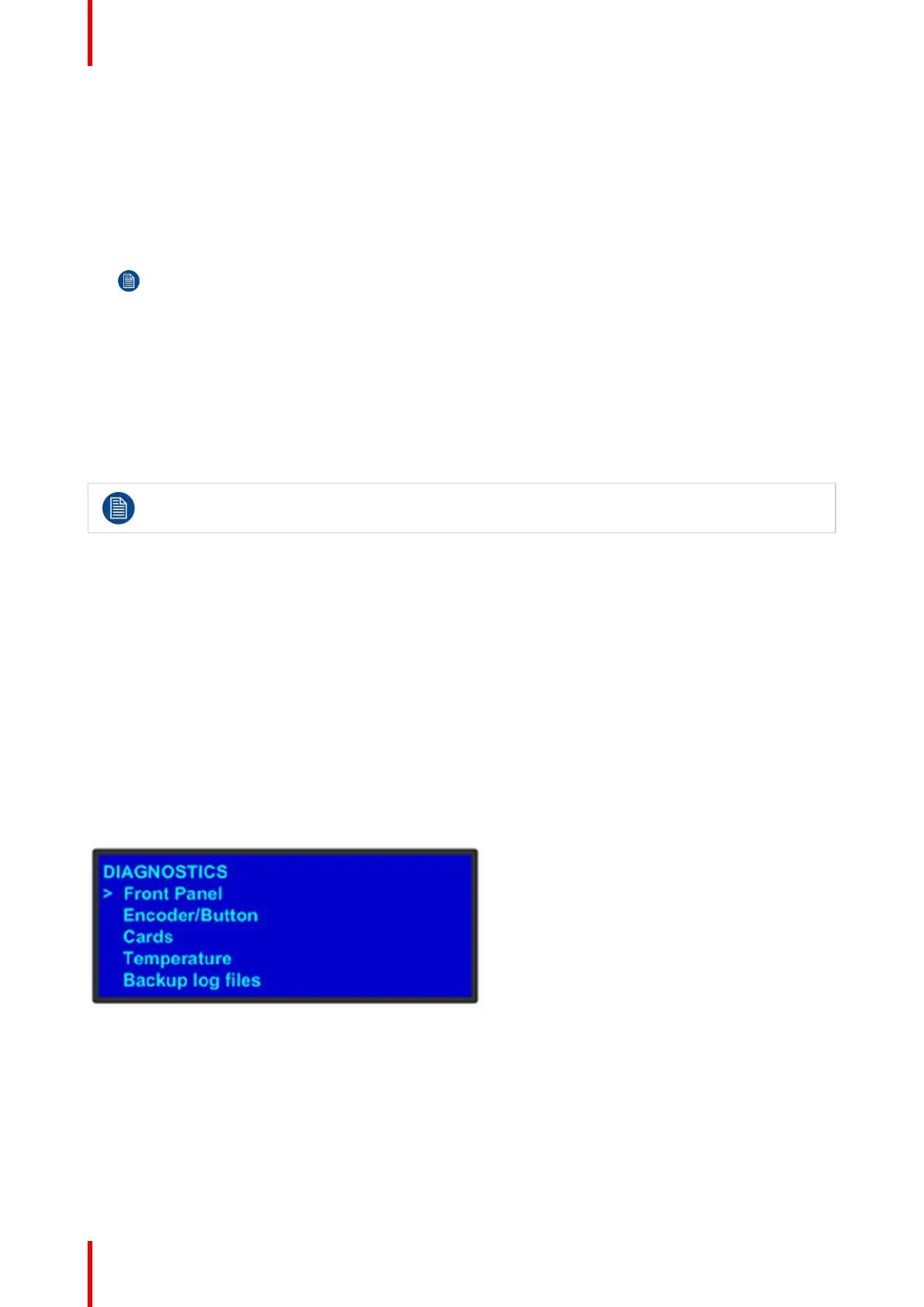

The following illustration shows the Diagnostics submenu, which you access from the System menu.
Image 5-19
The Diagnostics options allow a user to check if the Event Master unit is functioning normally. Front panel and
card operations can be checked. Various system temperatures can be monitored and backup log files can be
saved for customer service troubleshooting.
Front Panel
When Front Panel is selected to be tested, the VFD display will initially be blanked. Then the 24 x 4 character
grid will start to show from the dimmest setting to the brightest setting. At this point a user can determine if any
of the pixels or if a character segment is bad in the display.
Front Panel Menu orientation
