Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 95
After several seconds of showing all pixels on at the brightest setting, the system will automatically advance to
the ENCODER/BUTTON TEST menu (the next menu).
Directly select “Encoder/Button” from the Diagnostic menu will allow the user to test the keys and
knob without the need to see the VFD being tested.
Encoder/Button

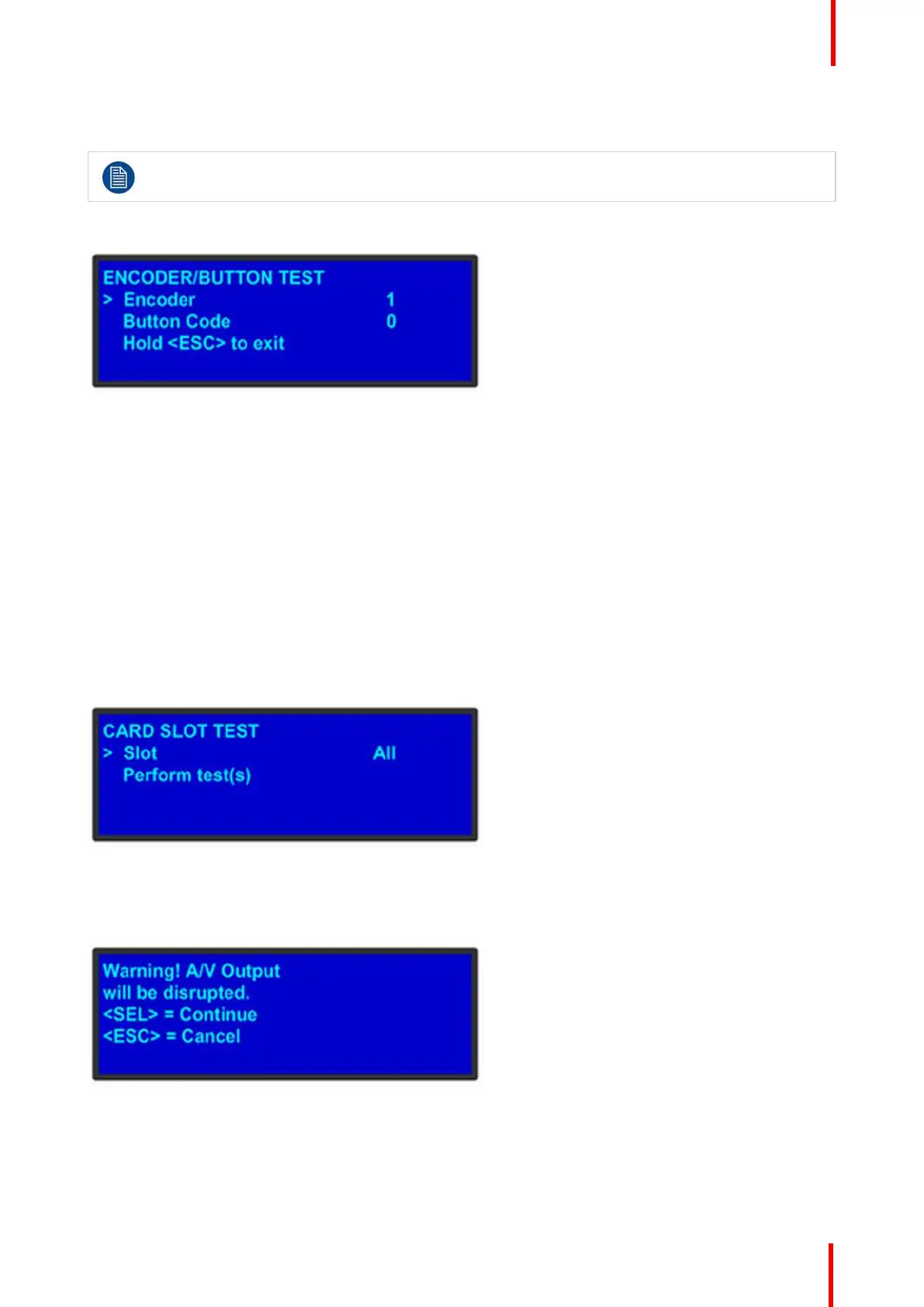

Image 5-20
The ENCODER/BUTTON TEST menu allow the user to test the keys and knob.
When the knob on the front panel is rotated, a number will be displayed on the encoder line. The larger the
number, the faster the knob was rotated. The number will show as positive or negative depending on the
direction the knob was turned.
Pressing any key on the front panel will show the Button Code for the key.
Button Code
ESC 0
PWR 7
SEL 14
Hold ESC to exit and return to the DIAGNOSTIC menu.
Cards
Image 5-21
The Card Slot test will perform a variety of diagnostics for an individual card or for all cards. This is a quick way
to determine if a given card is having a problem. After selecting a Slot number or choosing All cards to be
tested, the following message will be displayed.
Image 5-22
Pressing SEL to continue will start the diagnostic testing. The following message will be displayed.
Front Panel Menu orientation
