R5905948 /12 Event Master Devices96

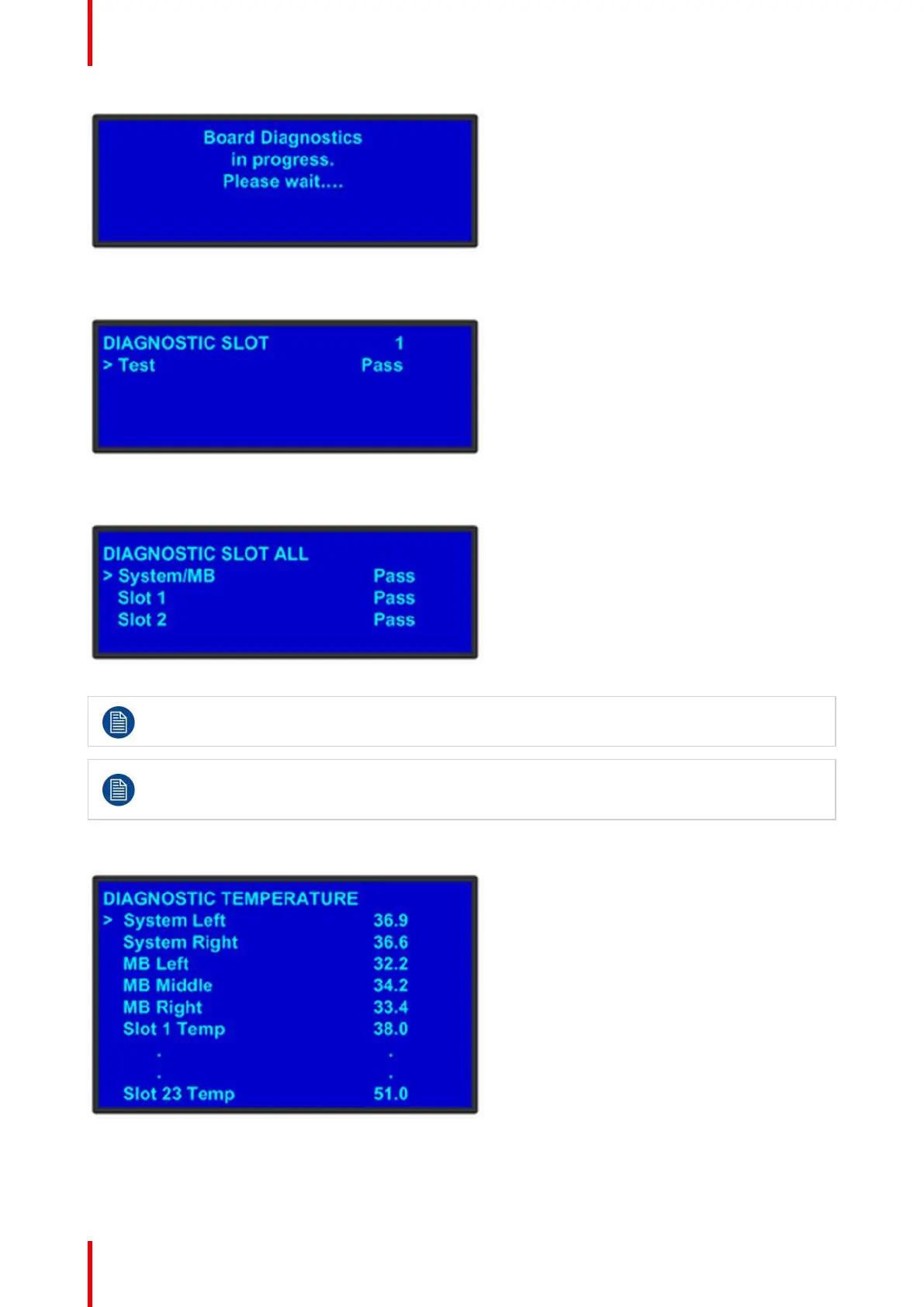

Image 5-23
If only one slot was selected for testing, a simply PASS/FAIL result will be shown for that slot.
Image 5-24
If all slots were selected for testing, the PASS/FAIL result will be shown for all slots.
Image 5-25
If a slot is not populated with a card, the result will show EMPTY.
To see more detailed results of diagnostic testing, run diagnostics from the Event Master Toolset
Software. For details on this function, please refer to chapter “Settings Menu > Web App area >
Dashboard”, page 259
Temperature
Image 5-26
The DIAGNOSTIC TEMPERATURE menu will show real time measurements for the System, Motherboard
and all card slots. All temperatures are shown in degrees Celsius.
