6.39 Multiviewer Menu > Multiviewer Layout area
General
This part of the Multiviewer Menu allows a user to add and position sources in Multiviewer outputs.
Description

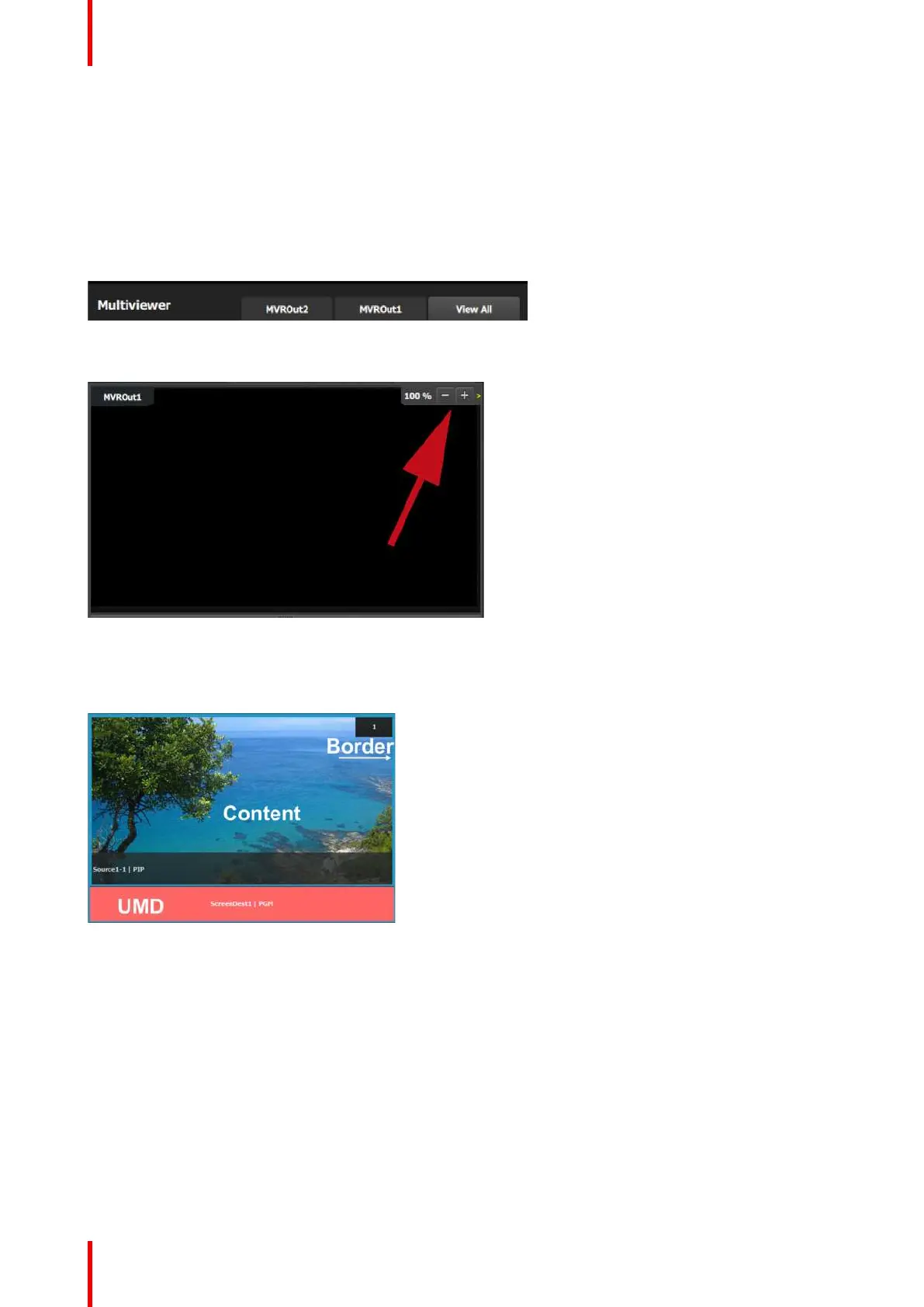

The tabs on the top of the layout panel area allow the user to view the layouts together or individually.
Image 6-108
Users can zoom in / out each output individually, from 25% to 150%, in 25% increments.
Image 6-109
Multiviewer windows, also called Image windows, are composed from Inputs, Backgrounds, and Destination
resources. There are 3 elements that make up a multiviewer image window: Content area, border and UMD
(Under-Monitor-Display).
Image 6-110
Content area
The Image window's aspect ratio follows that of the first resource that occupies it. If a new resource is dropped
onto the Image window, the resource's aspect ratio will constrain horizontally to fit into the Content area.
If the aspect ratio of a resource is changed after it is placed in the MVR, the change will not reshape the Image
window in the MVR. To reshape the window to the new resource, click the "Refit" button in the Modifier area,
then resize the window to the desired size.
UMD
The text tracks the name of the resource in the display area. If the resource is renamed, the UMD will also
change to the new name. The UMD text can be edited to override the system's resource name in the
adjustment panel.
