R5905948 /12 Event Master Devices 409
5. Push on the edge of the piece that is in the middle of the chassis until it's loosened and release from the unit.
Carefully remove this piece from the unit.
6. Remove the other piece.

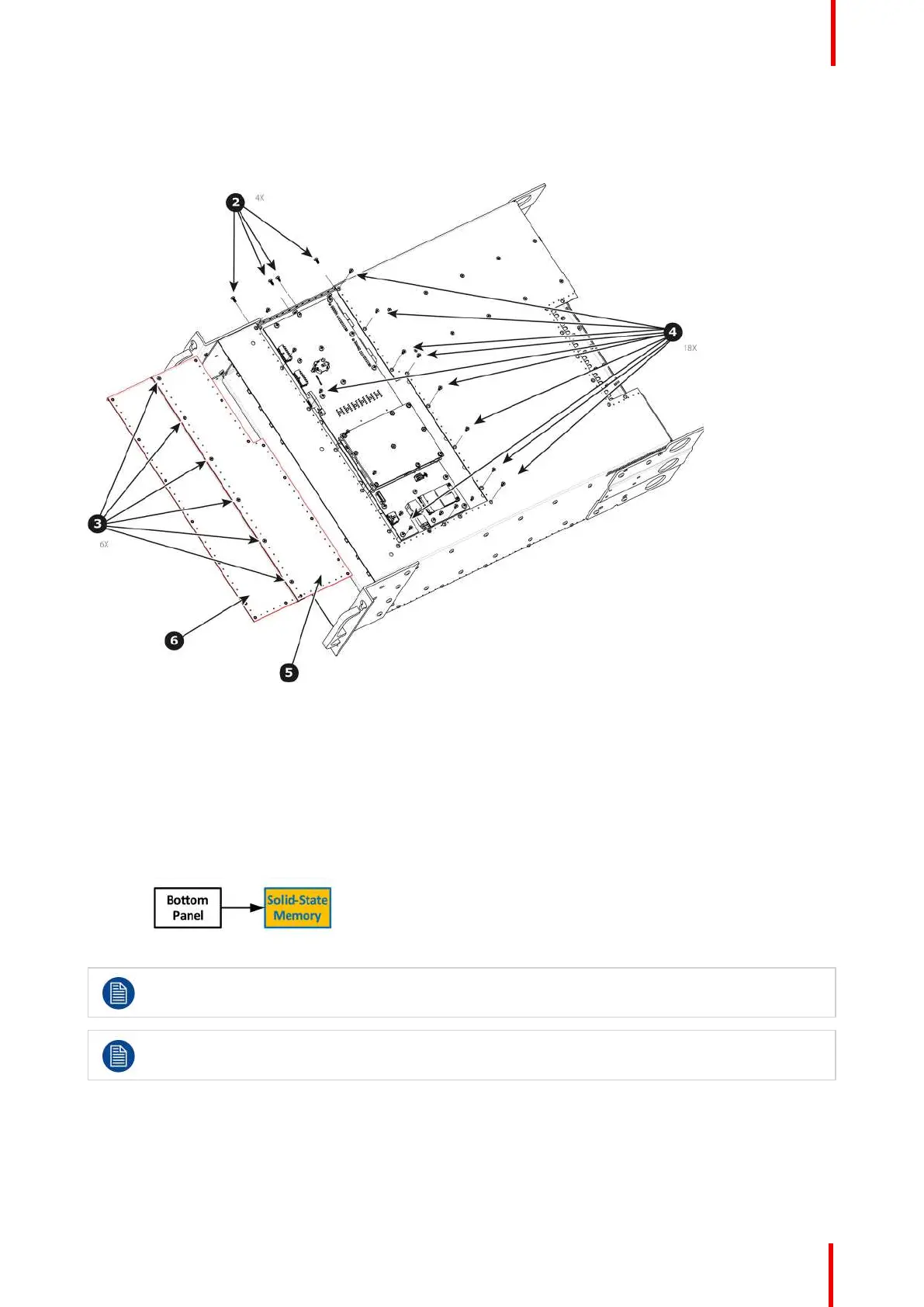

Image 14-46
How to install the Bottom Panel
To install the Bottom Panel follow the same procedure in the reverse order.
14.18 Solid-State Memory
Flow chart
Image 14-47
Before you proceed removing the Solid State Memory you need to remove the Bottom Panel as
outlined in the related procedure.
The solid-state memory can also be replaced after the System Power board is removed from the
unit.
E2 Maintenance
