Overview

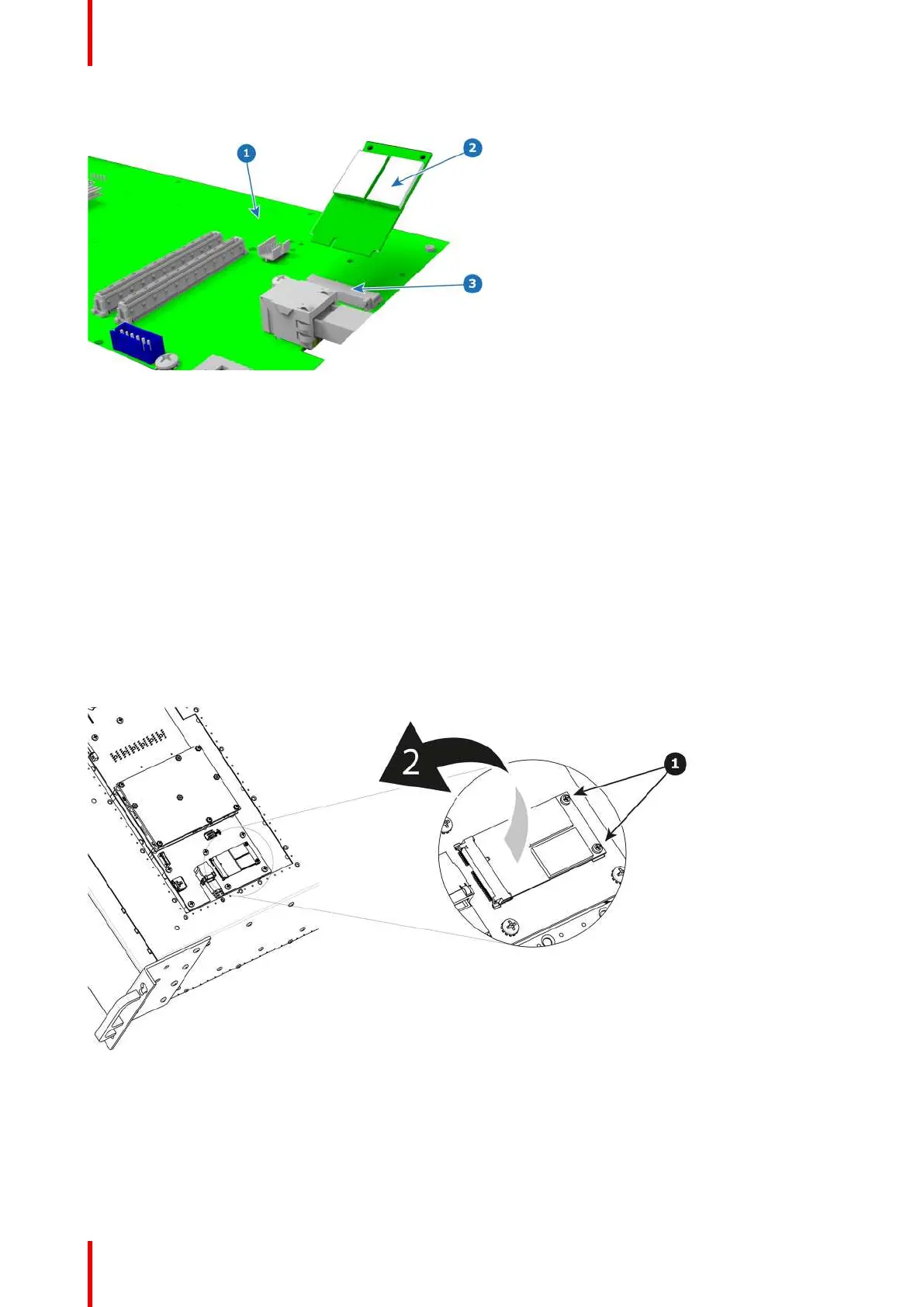

Image 14-48
1 System Power board
2 Solid State Memory card
3 Socket
Concerned parts
R767275K Solid State Memory
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Solid State Memory
1. Remove the 2 screws that hold the memory card.
2. Carefully remove the memory card from the socket.
Image 14-49
How to install the Solid State Memory
To install the Solid State Memory follow the same procedure in the reverse order.
