R5905948 /12 Event Master Devices440

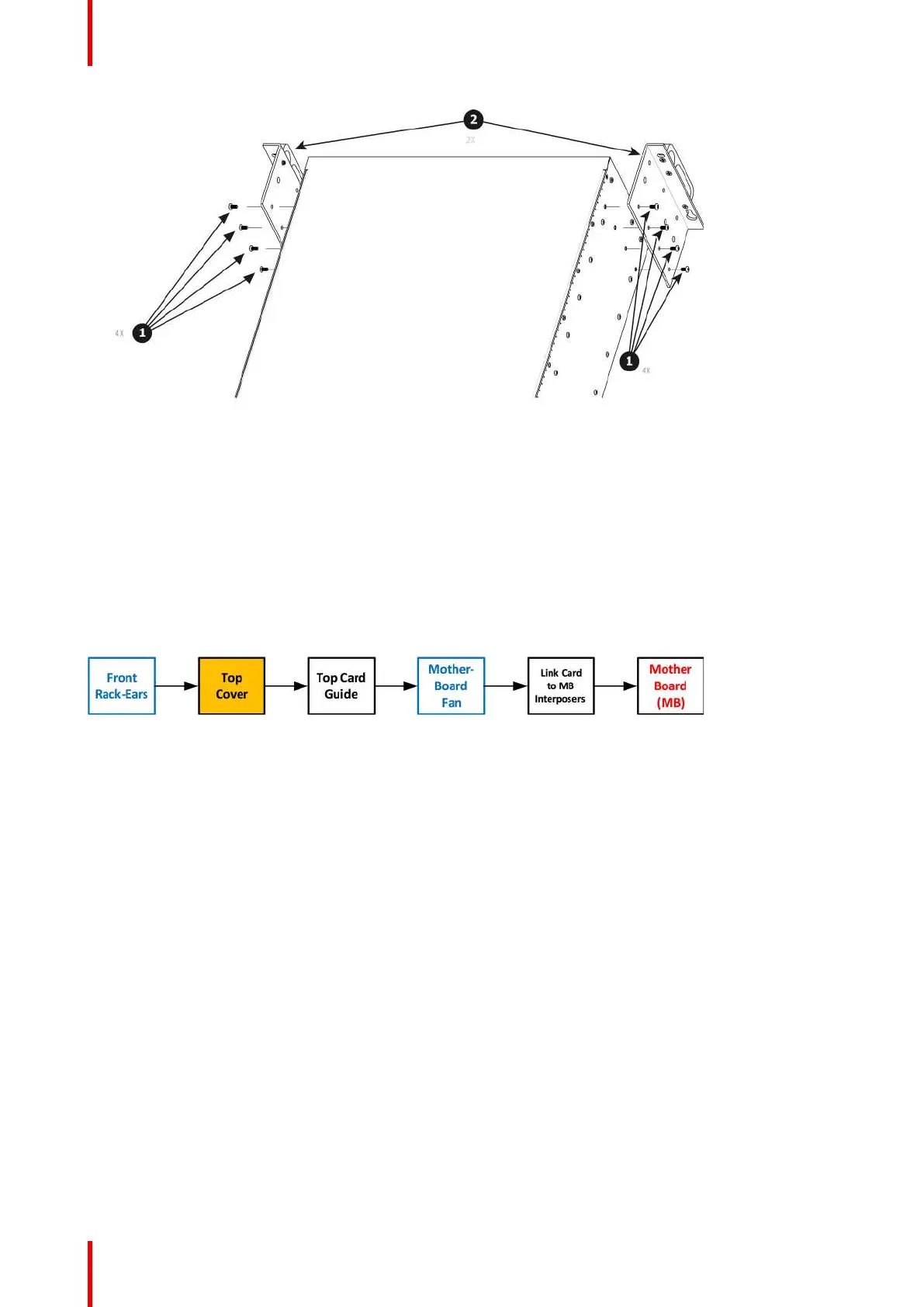

Image 14-96
2. Remove the Rack-Mount Brackets from the Chassis.
How to install Side Rack-Ears
To install the Side Rack-Ears follow the same procedure in the reverse order.
14.34 Top Cover
Flow chart
Image 14-97
Necessary tools
1 x Phillips Screwdriver #2
How to remove Top Cover
1. Remove the 12 screws from the two sides (6 in each side, 4-40x0.25) that are located towards the top side of
the unit.
2. Remove the two (2) screws (4-40x0.25) located closer to the rear end of the unit. These are flat head screws.
3. Remove the 8 screws (6-32x0.25) located on the top at the back of the chassis.
4. Remove the cover by gently pulling it away from the E2
E2 Maintenance
