How to install the CPU module
To install the CPU module follow the same procedure in the reverse order.
Install the CPU Module by rocking left and right while applying pressure on the connectors.
15.29 Solid-State Memory
Flow chart
Image 15-71

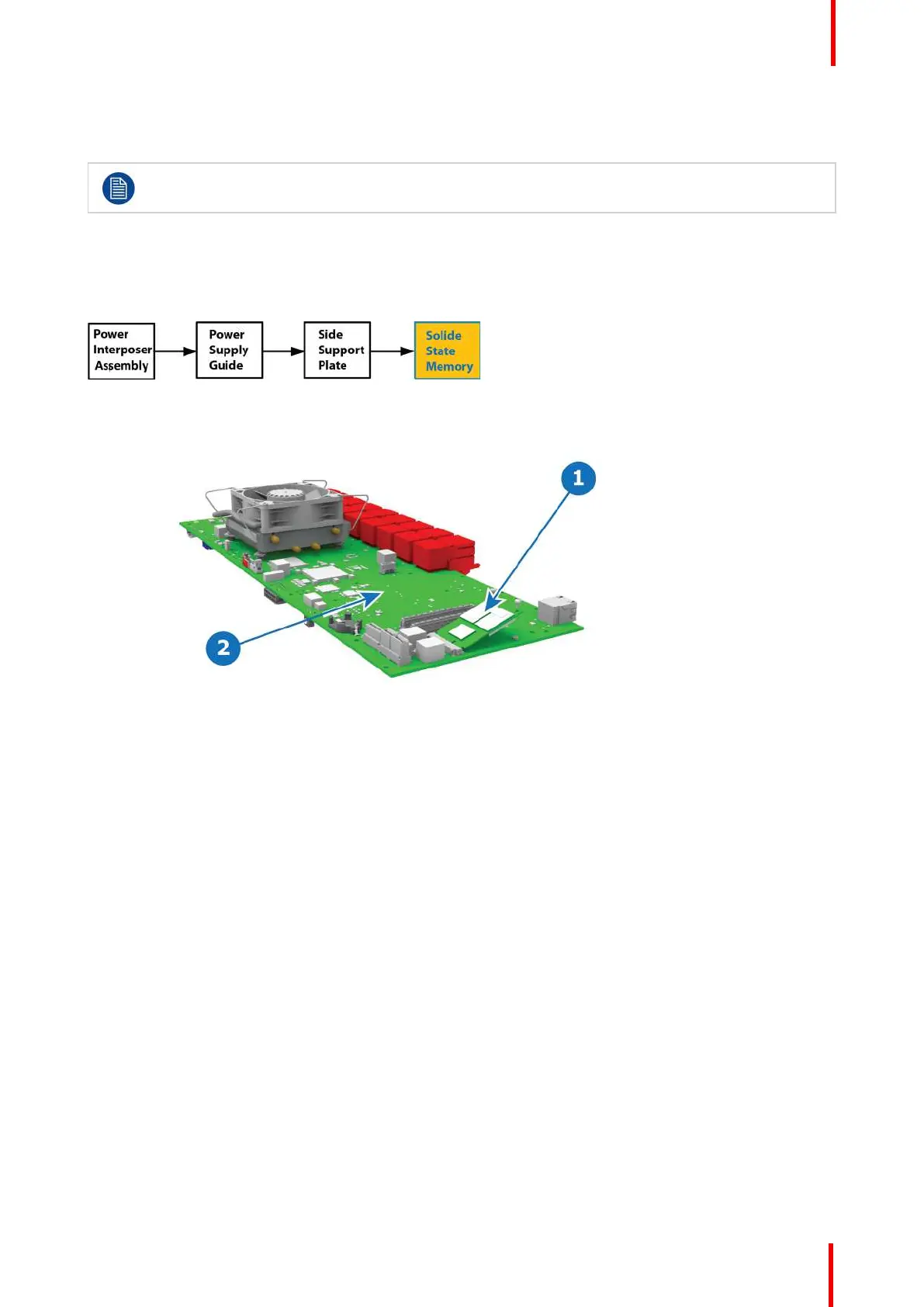

Overview
Image 15-72
1 Solid State Memory card
2 MotherBoard
Concerned parts
R767275K Solid State Memory
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Solid State Memory
1. Remove the 2 screws that hold the memory card.
2. Carefully remove the memory card from the socket.
