R5905948 /12 Event Master Devices484
Overview

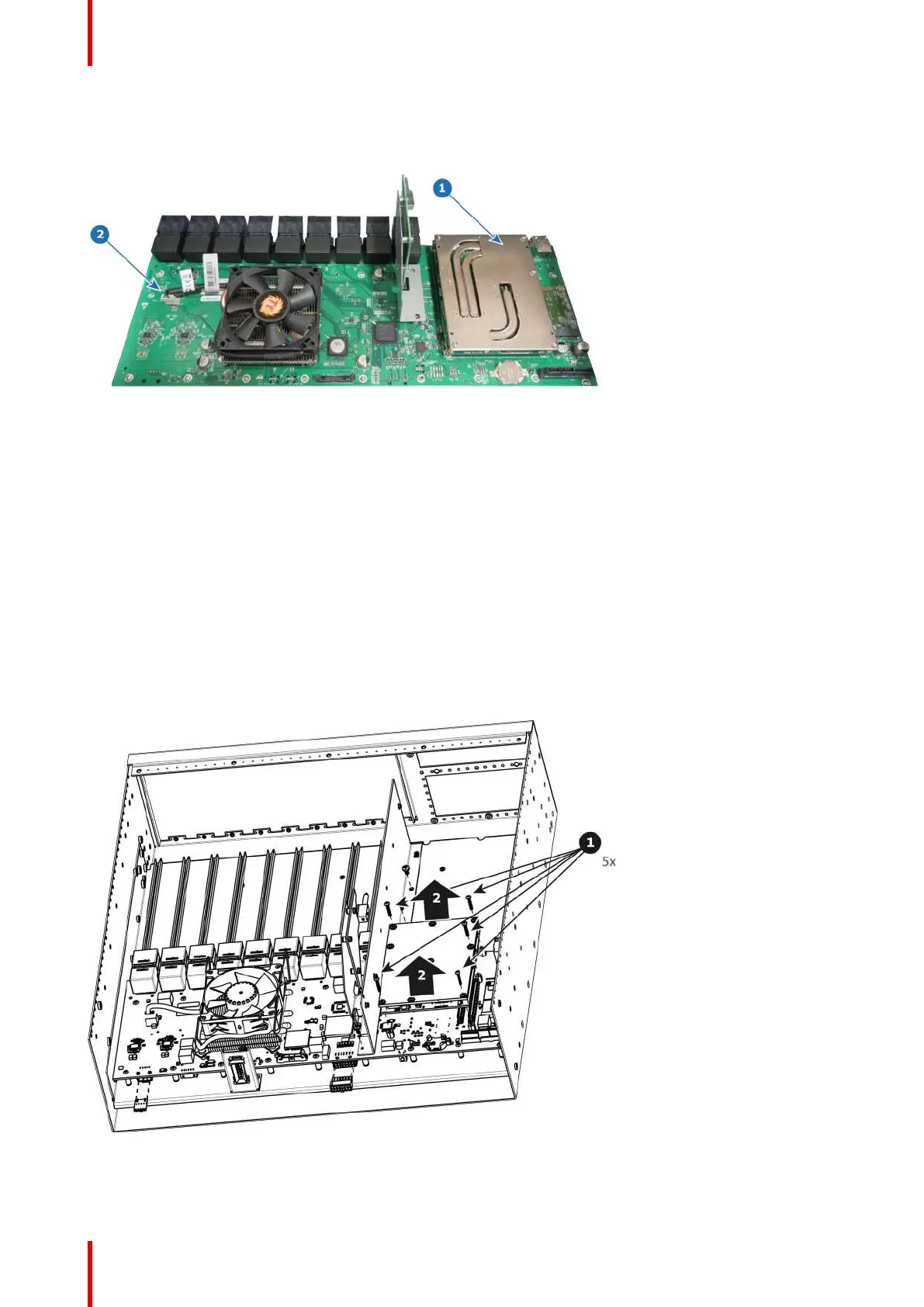

Image 15-69
1 CPU module
2 Motherboard
Concerned parts
R767264K CPU module
Necessary tools
1 x Phillips Screwdriver #2
How to remove CPU Module
1. Remove the five screws that attach CPU module to the system card.
2. Carefully remove the CPU module by lifting it up.
Image 15-70
S3 Maintenance
