R5905948 /12 Event Master Devices480

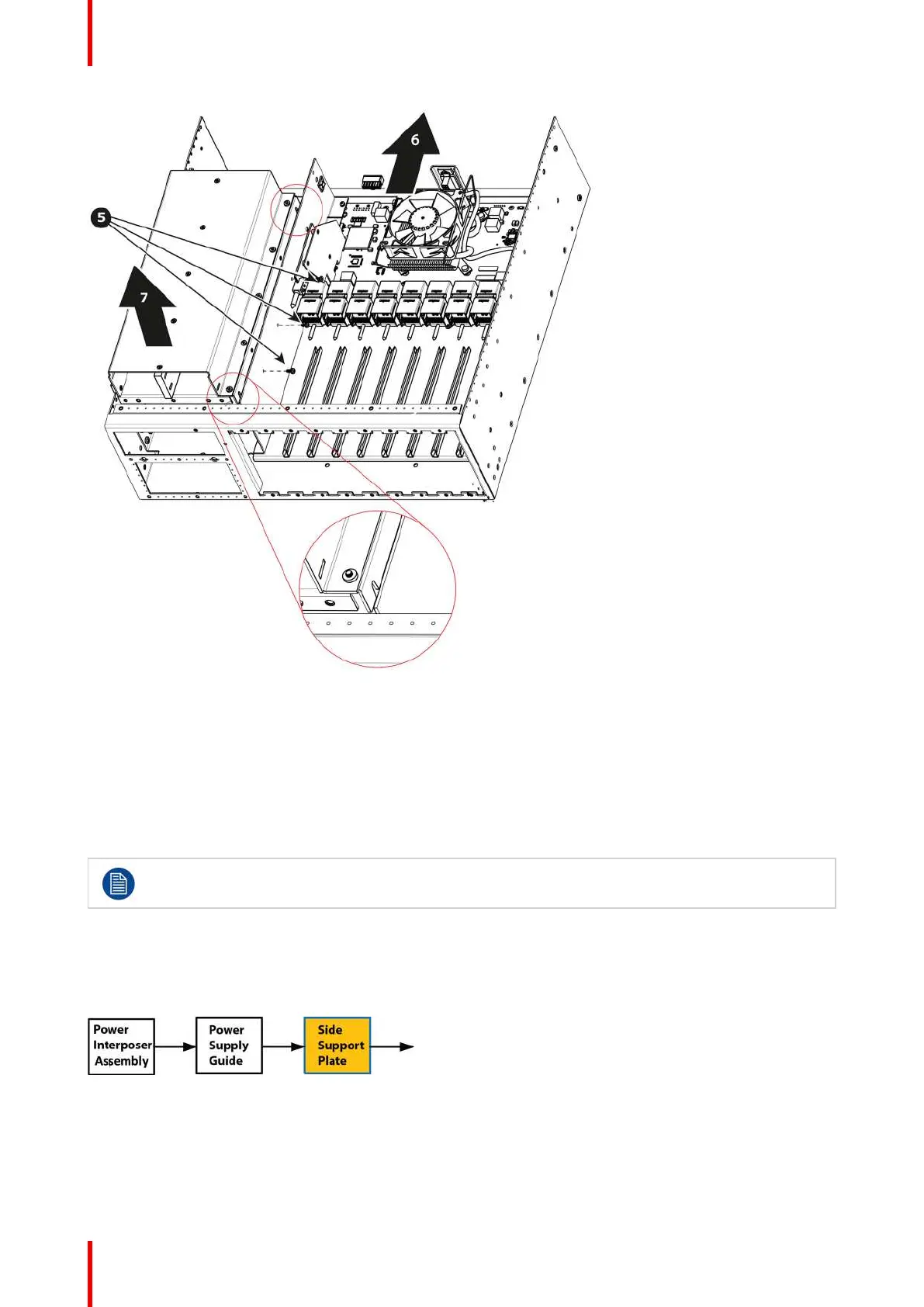

Image 15-62

6. Move the entire motherboard mount forward

7. Gently pull the Power Supply Guide away from the unit.

How to install Power Supply Guide

To install the Power Supply Guide follow the same procedure in the reverse order.

There are slots cut into the bottom which will make installation of the guide much easier. See detail

on the previous drawing.

15.26 Side support plate

Flow chart

Image 15-63

S3 Maintenance
