R5905948 /12 Event Master Devices 481
Overview

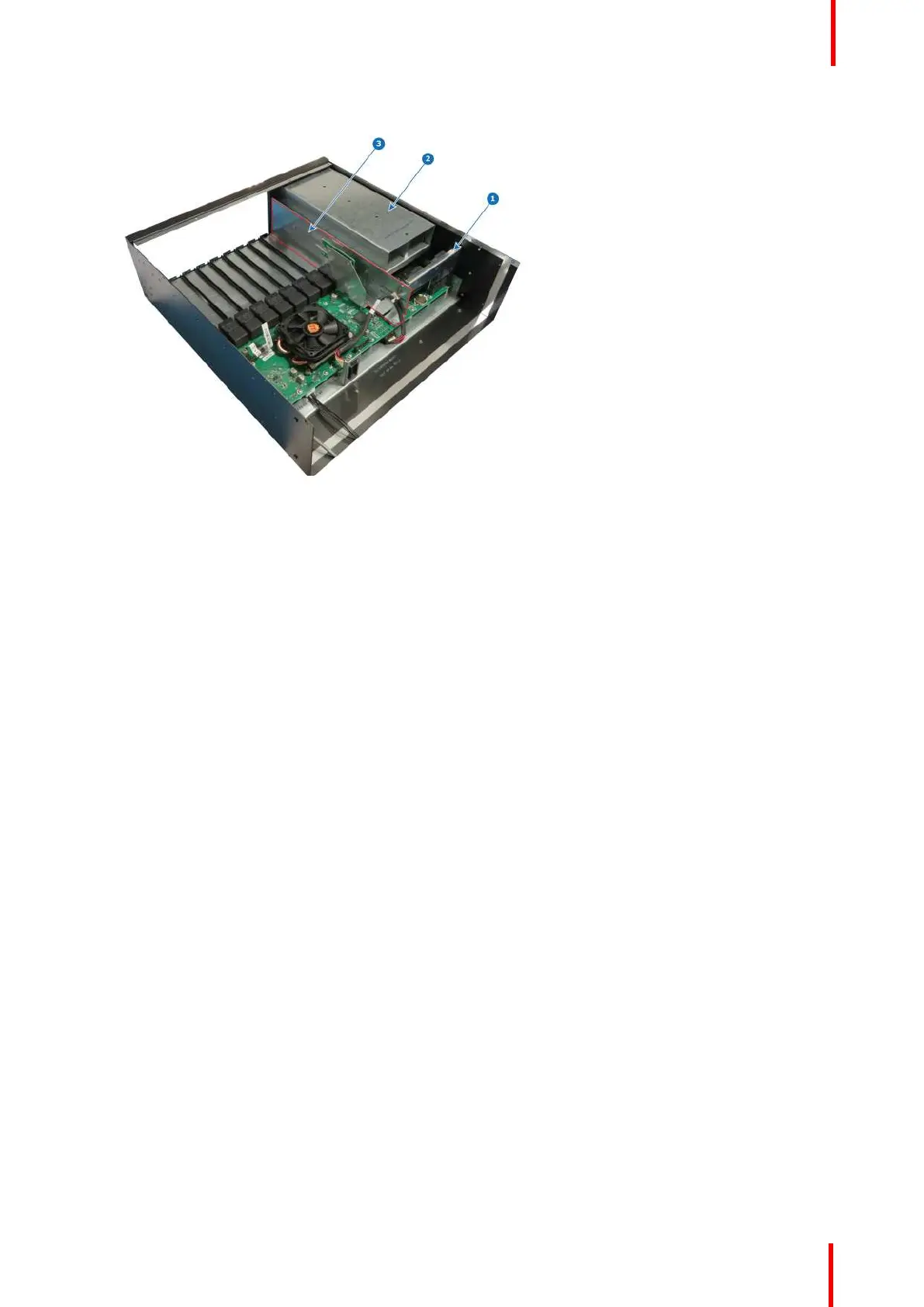

Image 15-64
1 Power Interposer
2 Power supply guide
3 Side Support Plate
Necessary tools
1 x Phillips Screwdriver #2
How to remove Side Support Plate
1. Remove the two pan head SEMS screws (6-32x0.25 — Stainless steel) that attach the Side Support Plate to
the Motherboard Mount.
2. Remove the three pan head SEMS screws (4-40x0.25 — Stainless steel) that attach the Side Support Plate to
the Motherboard Mount.
3. Move forward the Side Support Plate (this item is align with the Motherboard Mount via key holes), and gently
pull the Side Support Plate away from the unit.
S3 Maintenance
