Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices344
10.17 System Function Button Group (EC-200/EC-
210 only)
Overview
These buttons are present only on the large controllers (EC-200 and EC-210).

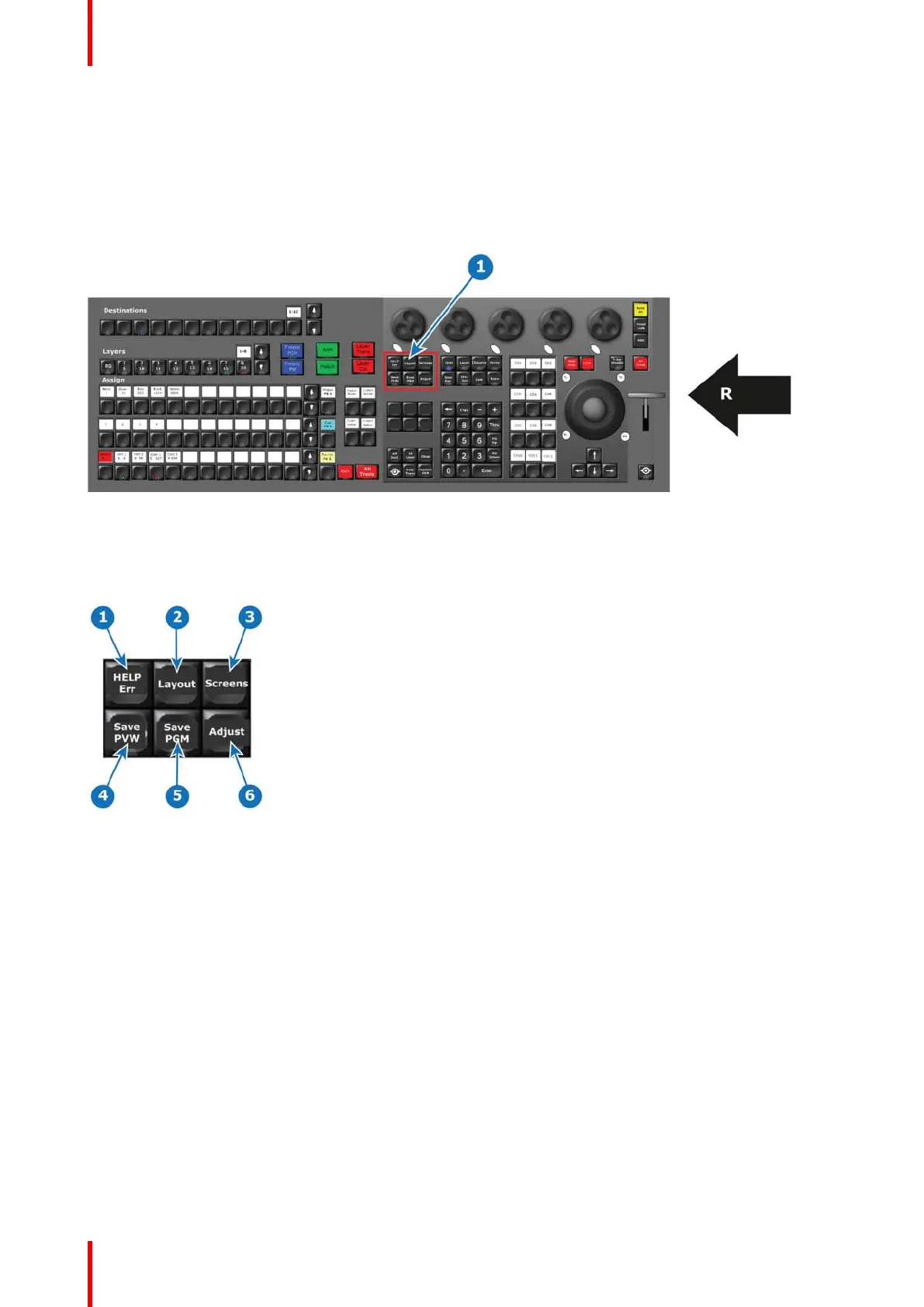

Image 10-21
1 System function Button Group
R Right Side of the Controller
Description
Image 10-22
Button Name
Description
1 HELP Err This button has currently no function.
2 Layout The Layout Function Button allows for recalling layouts where applicable
like Multiviewer, Programming menu, and controller (Assign side) benefit
from this function.
3 Screens This is the function to change the active page of the GUI to the
touchscreens and the HDMI output (EC-210).
4 Save PVW
(Save Preview)
Latches and lights a RED LED and activates a Store/Record Mode with
applicable functions from Preview. The Save PVW of the GUI will be RED
as long this mode is active.
5 Save PGM
(Save Program)
Latches and activates a Store/Record Mode with applicable functions from
Preview. The Save PGM of the GUI will be RED as long this mode is
active.
6 Adjust Pressing the Adjust Button opens the Adjust tab on the active
touchscreen.
Controller Orientation
