10.7 EC-200/EC-210 backside overview
Overview

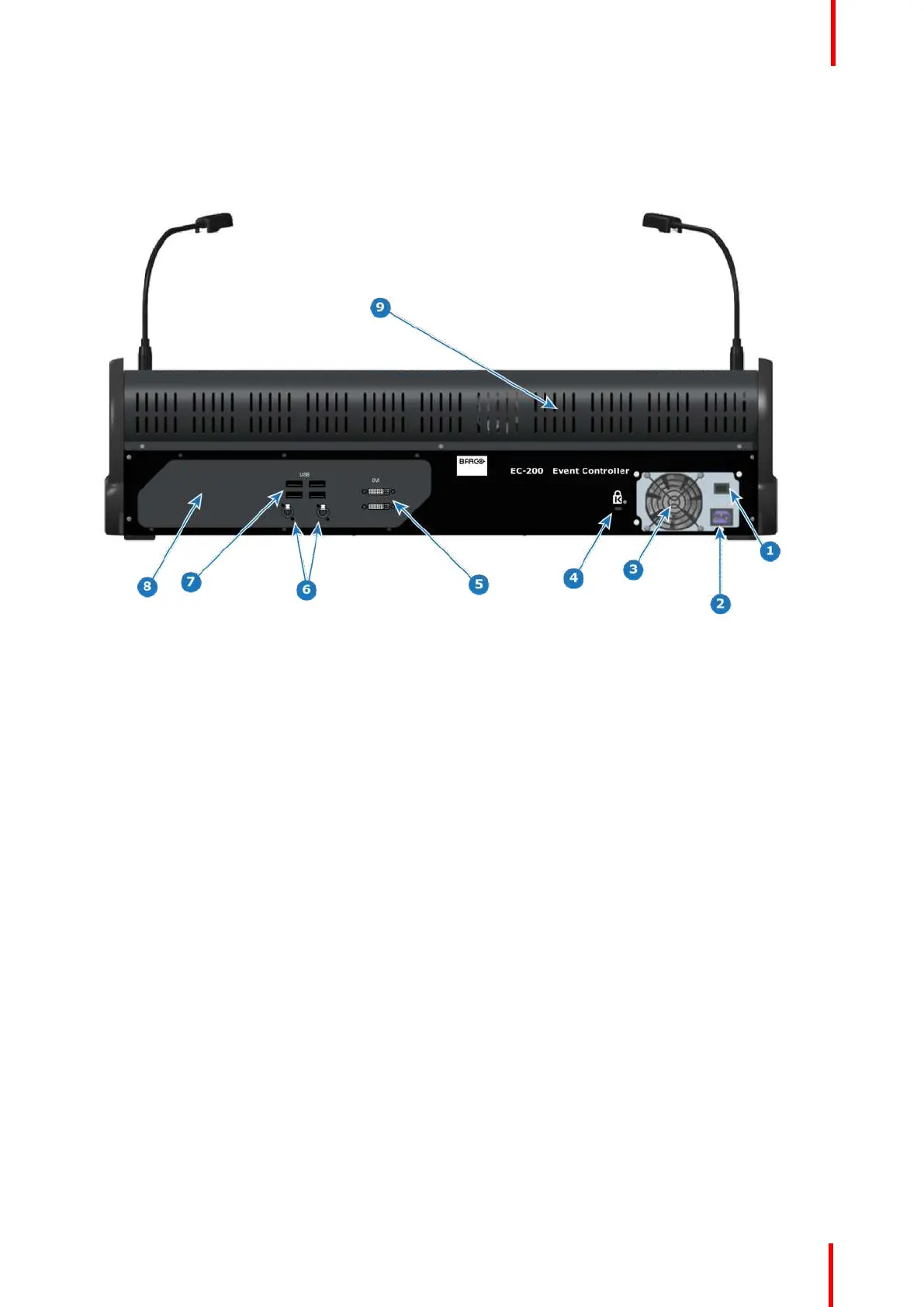

Image 10-7: EC-200 backside overview
1 Power switch
2 Power receptacle
3 PSU fan outlet, not to be blocked
4 Kensington Lock attachment point
5 2x DVI Output connector for a standard HD DVI signal
6 2x Ethernet RJ45 network connectors
7 4x USB A connectors for USB peripherals, such as mouse
and keyboard
8 Rear I/O plate
9 Red effects light (located behind rear vent holes)
