Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 441

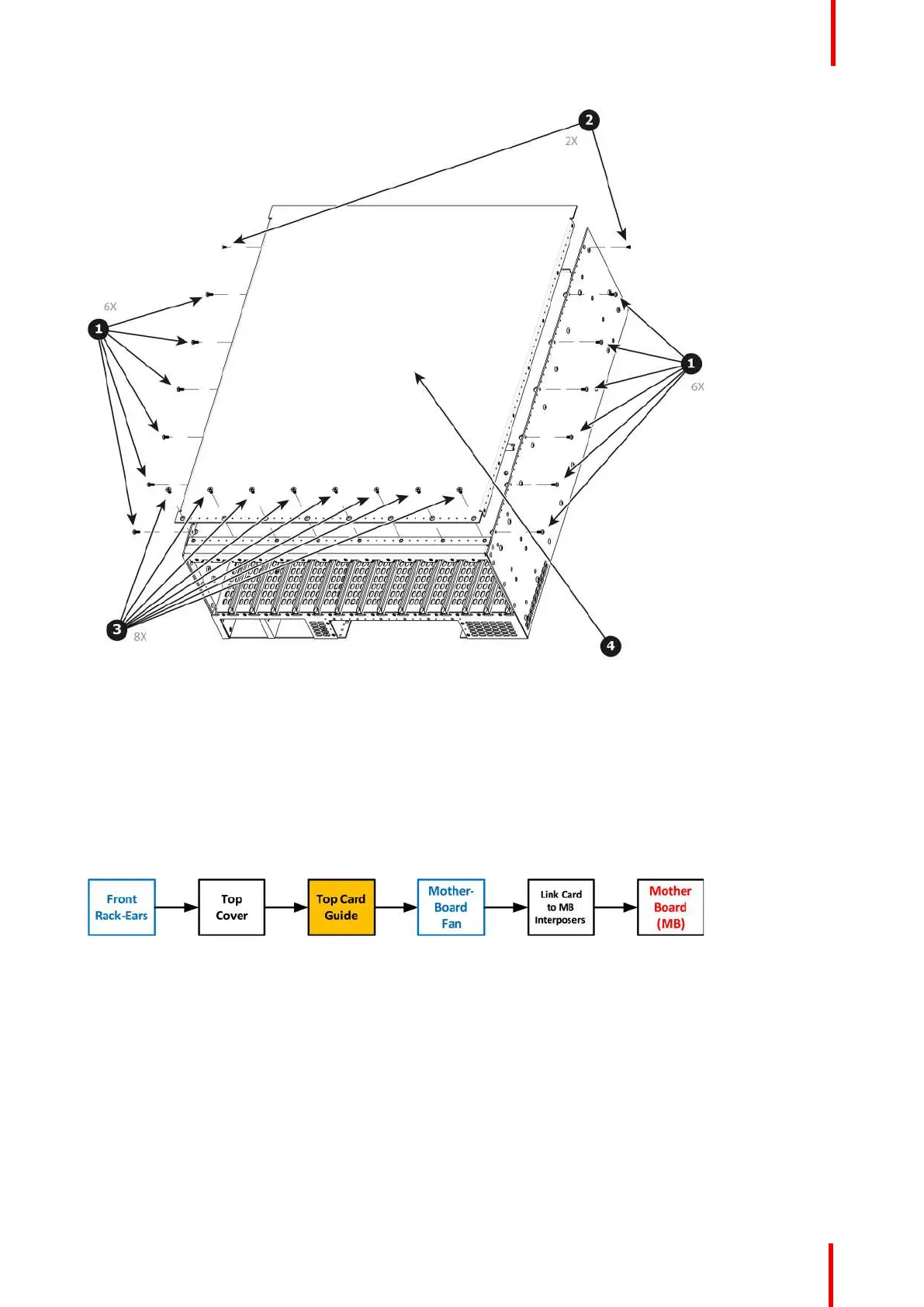

Image 14-98
How to install Top Cover
To install the Top Cover follow the same procedure in the reverse order.
14.35 Top Card Guide
Flow chart
Image 14-99
Necessary tools
1 x Phillips Screwdriver #2
How to remove Top Card Guide
1. Remove the 18 screws from the two sides (8 in each side, 6-32x0.25) that are located towards the bottom of
the unit.
2. Remove the card guide cover by gently pulling it away from the E2.
E2 Maintenance
