Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices54
4.1 Front panel
About front panel

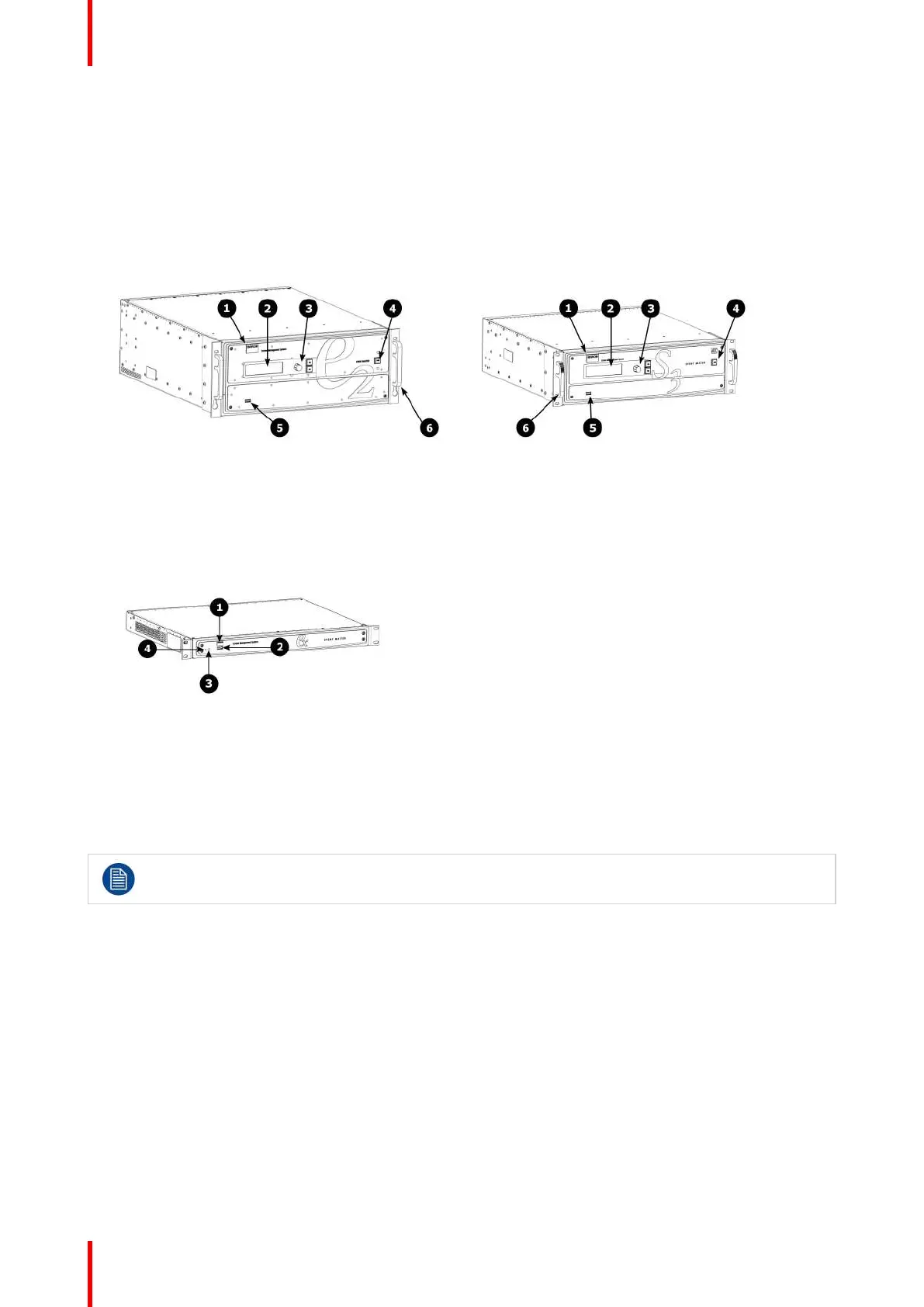

See Image 4-1 for an illustration of the front panel of Event Master E2 (and E2 Jr.) and S3–4K (and S3–4K Jr.)
series processors. See Image 4-2 for an illustration of the front panel of the Event Master EX processor.
Image 4-1: E2 and S3 series front panel
1 Barco logo
2 Display screen
3 Menu navigation buttons
4 Power ON/OFF button
5 USB port
6 Chassis handles
Image 4-2: EX front panel
1 Barco logo
2 USB 2.0 port
3 Power light
4 Recessed reset switch
Chassis Handles
Two Chassis Handles are provided for ease of installation and transportation.
When transporting the chassis by its handles, do not set it down with the rear connectors towards
the ground. If you do, you may damage the rear connectors.
Display screen
The 4-line x 24-character screen shows all Event Master processors menus, sub-menus, and messages. The
display is dimmable.
At system startup, or when no menu buttons are selected, the screen displays the Status Menu. The following
illustration shows a sample Status Menu. For information about the contents of this menu, refer to the chapter
titled “Front Panel Menu orientation”, page 83.
Hardware orientation
