9.1 Event requirements
Description
Inputs for the event are provided from a Windows PC, two AJA KiPROs file recorders, an Apple Macbook and
two video cameras.
Several outputs are required as follows:
• Two program outputs for the projectors dedicated to the Main screen. Two PIPs are displayed that are
equal in size and are side-by-side. Two looks are desired:
- One look displays the two video clips simultaneously from the KiPROs.
- The other look shows the PowerPoint and the stage camera.
- Background will be provided from a PC dual-head card.
• Single Screen Site Screen: Displays the videos from two KiPROS and two cameras. The images are
always full screen and transition on screen at 0.5 sec.
• A DSM monitor is required for camera adjustments.
• Two 2 monitors for multi-viewing.

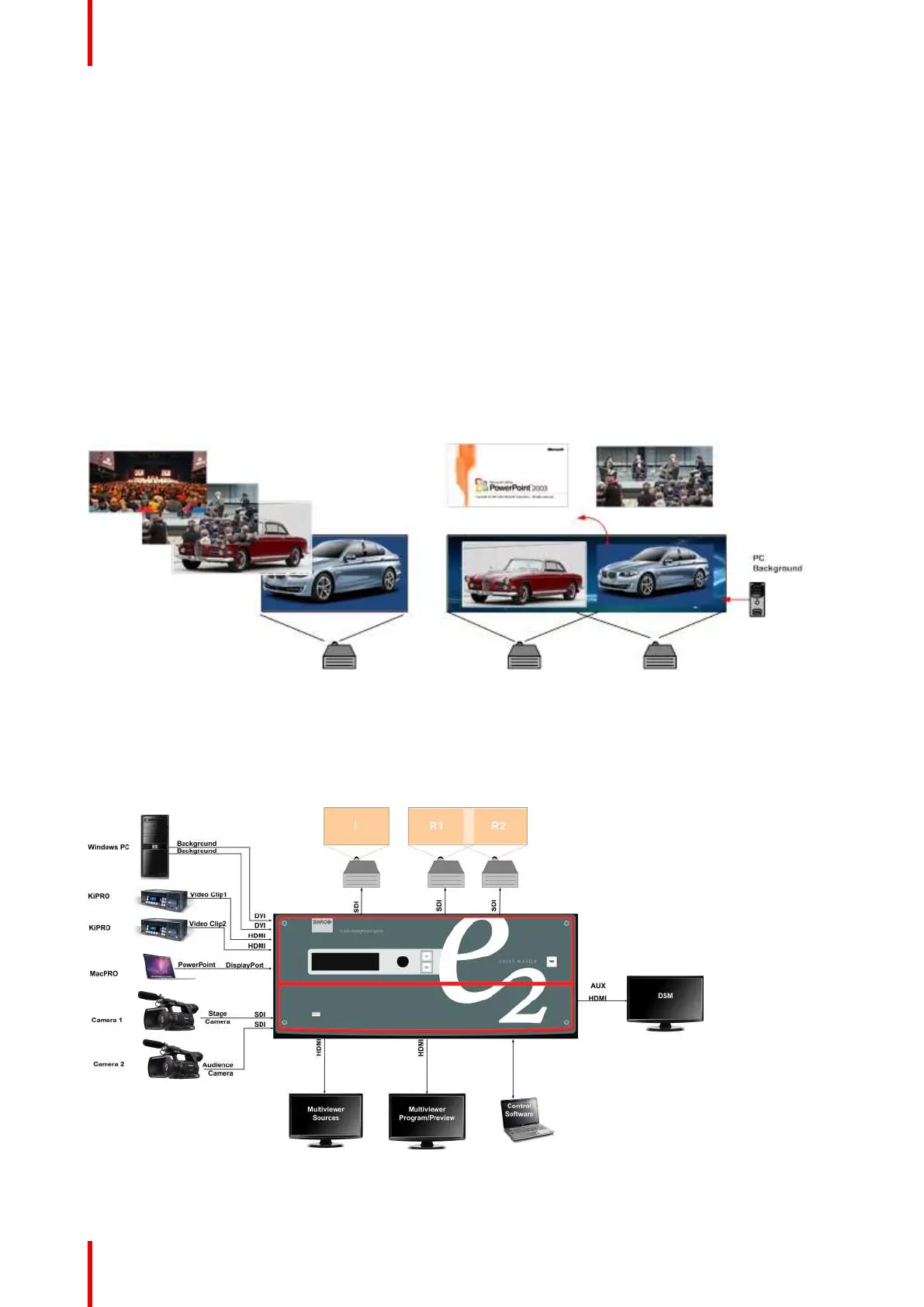

Image 9-1
9.2 Preliminary
Application Diagram
Image 9-2
General operation example
