Image 10-9
1 Button
2 LED
Backlight color for display
Applies to an entire row of displays.
• Background Source = Green backlight.
• Cue = Cyan backlight.
• Preset = White backlight.
• Source = Yellow backlight.
• User Key = Magenta backlight.
A Red backlight is reserved for LOS (Loss Of Signal).
10.9 Touchscreen
General
The touchscreen is a 10 point multi touch HD (1920x1080) screen. It offers direct interaction with the Toolsets
UI. Most notably the console setup page that works both as the assign page and a “virtual controller” allowing
for button interaction.
10.10 Destinations buttons
Overview

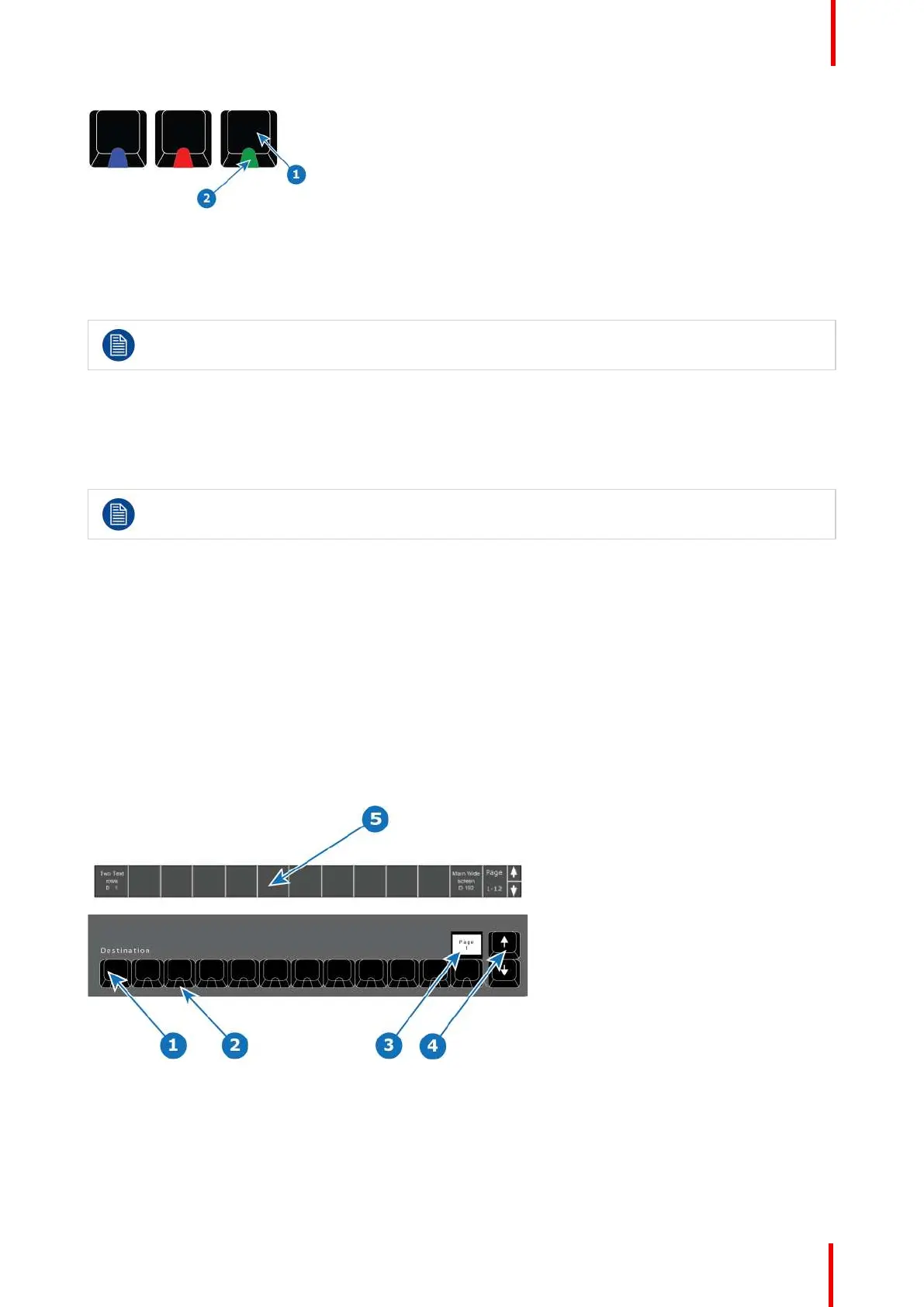

Image 10-10
1 12 destinations buttons.
2 Blue LED.
3 Current page display.
4 Arrow buttons (Page change: up and down).
5 Names of destinations displayed at the bottom of the screen.
Controller Orientation
