R5905948 /12 Event Master Devices468

Image 15-39

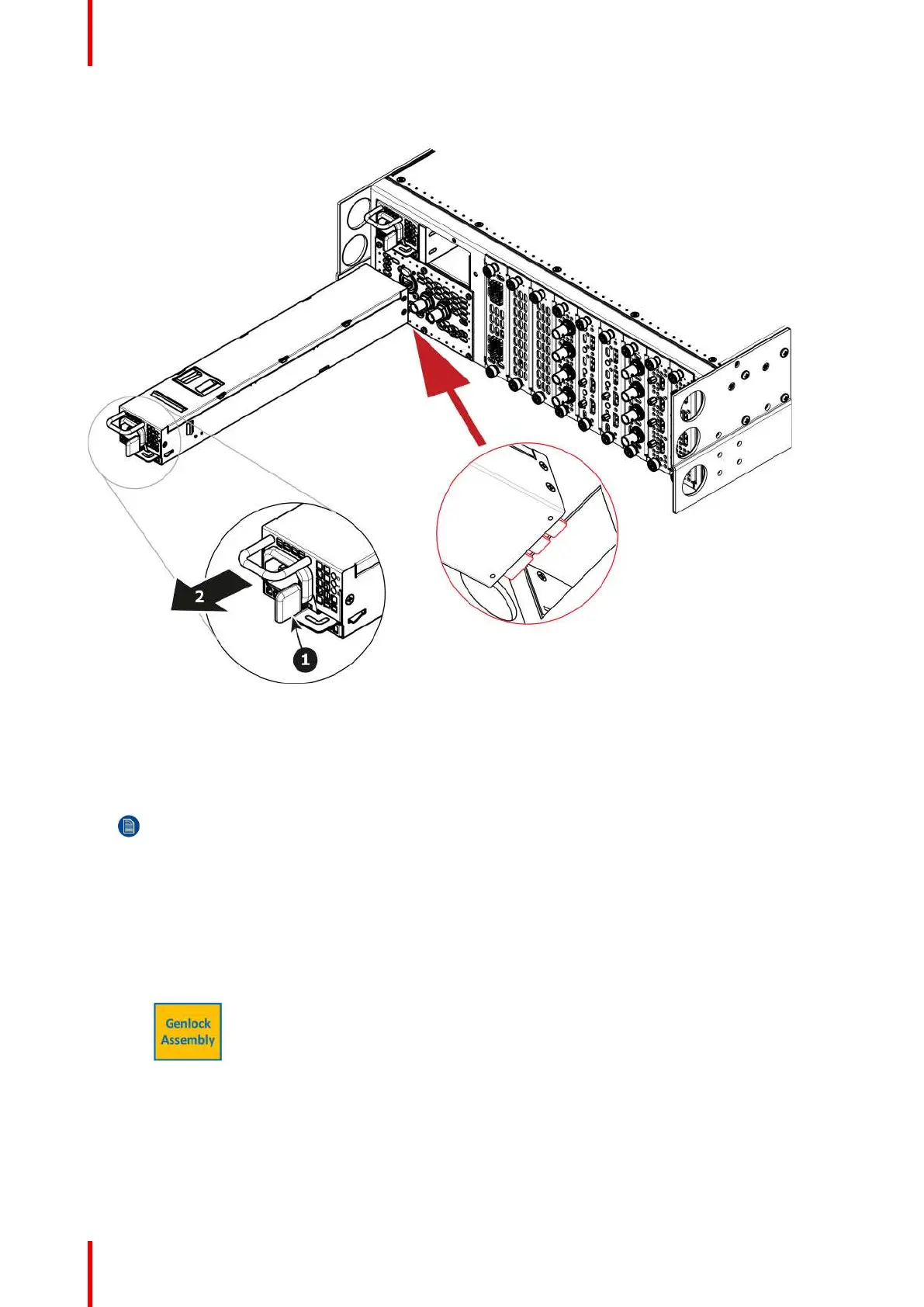

2. Pull the Power supply out of its slot by pulling on the handle.

How to install Power Supply

1. Insert the Power Supply into the slot.

Note: The card connector (back edge) should be at the bottom of the power supply as shown in the

drawing.

2. Push the power supply completely inside the slot. Apply a little pressure by using the handle until the power

supply is fully inserted.

15.18 Genlock Assembly

Flow chart

Image 15-40
