6.15 Configuration Menu > Adjustment > Output
Configuration
General
In the Output menu users can assign output connectors to configurations and adjust signal parameters to
match the display devices connected to the unit.
Output Card arrangement
On the E2 model, the output cards occupy slots 11 through 13 and right justified to slot 13.
On the S3–4K model, the output cards occupy slots 7 through 8 and right justified to slot 8.
If there is an empty output slot, all output cards to the left of that empty slot will show as RED in the GUI. Red
indicates that although the cards will operate properly, outputs from these cards will not be available at the
Multiviewer.

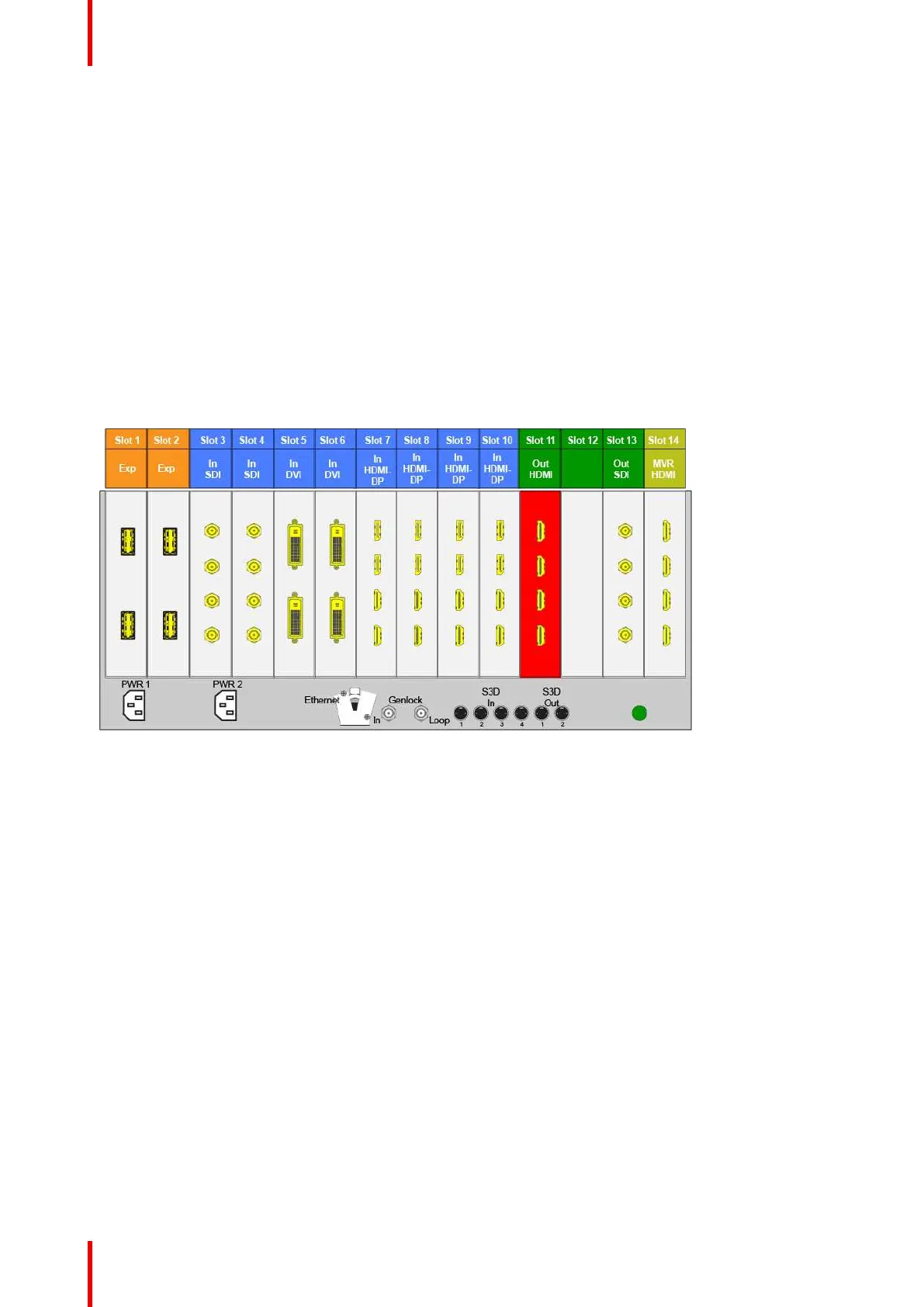

Image 6-19: E.g. E2 with an empty output-card slot
If the card with the connectors that are part of an output configuration is missing, the output configuration in
the configuration list will be grayed out.
Also, if there is an existing output configuration but the card in the slot is of different type, then again the
configuration will be greyed out.
Output Connector Grouping
The connectors can be grouped together to define a 3D* , 4K or Videowall configuration. For example, a
projector that requires 2 DVI connectors to pass 3D Left and Right eye signals. Also 4 SDI connectors can be
configured as a 4K output in order to connect to a 4K projector.
There are several rules that apply when defining an output configuration:
1. Each Output connector can only be assigned to one output configuration.
2. Outputs in an output configuration must be of the same type AND in the same slot or in adjacent slots. For
example, there cannot be a HDMI connector and an SDI connector in the same output configuration.
3. Max connectors for an output configuration = 4.
4. Once output connectors are assigned to the same output configuration, all settings for the output
connectors will be synchronized.
5. If an output connector is not assigned to an output configuration,
- Output settings cannot be adjusted on that connector.
- The connector cannot be assigned to a destination
Examples of 4K Valid Outputs:
