• 4 x SDI 1920x1080
• 4 x HDMI 1920x1080 or 2048x1080 on 1 card
• 4 x HDMI 1920x1080 or 2048x1080 two cards
• The top 2 x HDMI at 1920 x 2160 or 2048 x 2160 at max 60P
• One of the top HDMI at 3840 x 2160 or 4096 x 2160 at max 30P

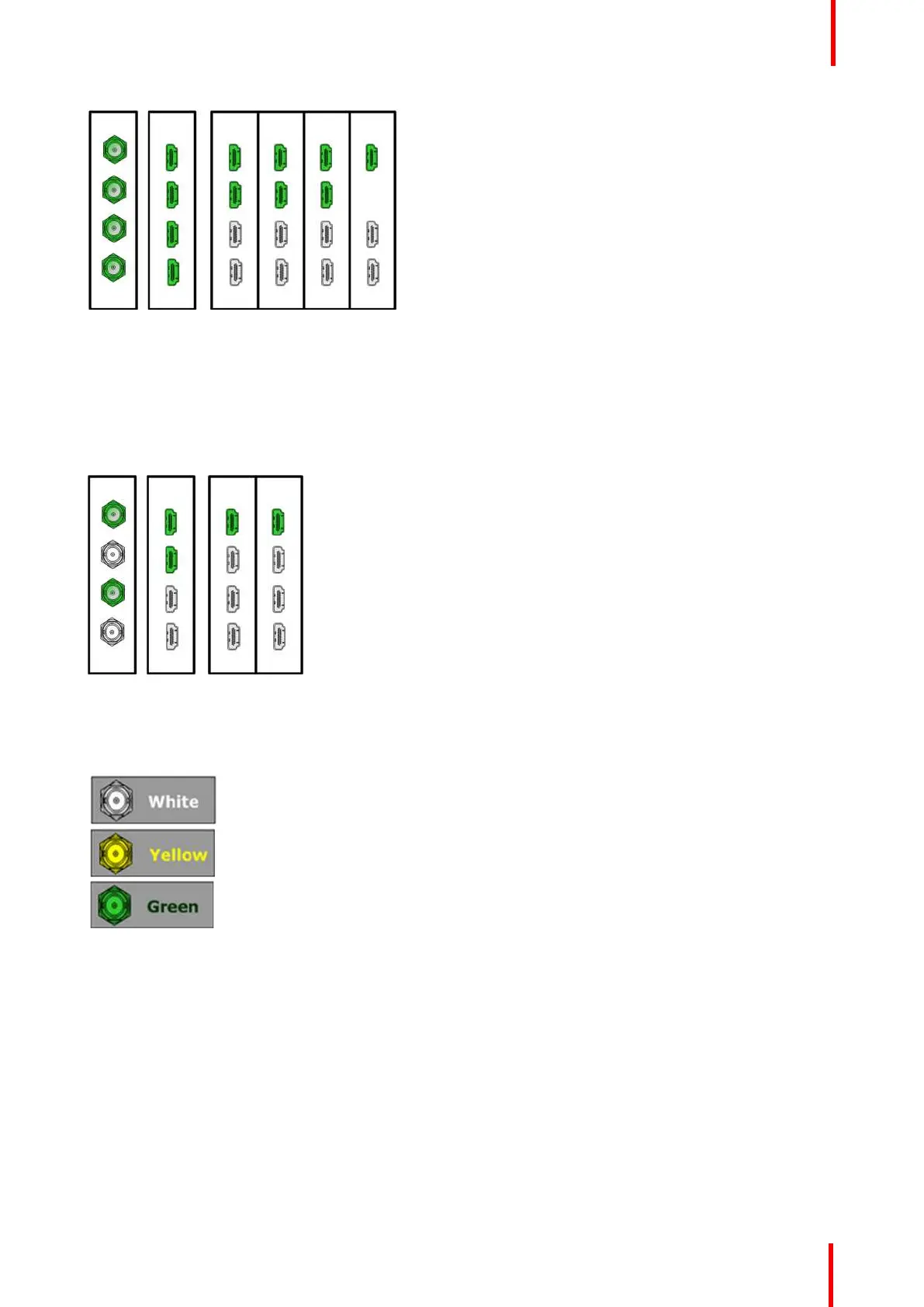

Examples of valid 3D Outputs *:
Image 6-21
(*) Future software release
Output connector colors
Not added to system as grouped connector or single
connector
Assigned to any output configuration
Assigned to a screen or auxiliary destination
Output configuration menu description
Output configuration menu is accessed by clicking on the Output tab.
