This menu provides:
• Auto add all Output(s): A button to automatically
allocate all unassigned output connectors to
Output configurations.
• + Add Single Output: A button to manually
allocate all selected output connector(s) to an
Output configuration.
• + Add Multiple Output(s):A button to manually
allocate more than one connector to an individual
Output configuration per connector.
• Delete Outputs: A button to delete unused or
obsolete Output(s).
• A list of all the Outputs already created on the
system (e.g. Output1 and Output2).
How to Auto add Outputs
The “Auto add all Output (s)” button allows all 2K outputs that are not already assigned to an output
configuration to automatically assign to individual output configurations. Output connectors that are already
assigned to output configurations will not be affected. The picture below shows what occurs when the button is
pressed. Since there are 12 output connectors not assigned, all 12 Output configurations are automatically
assigned.

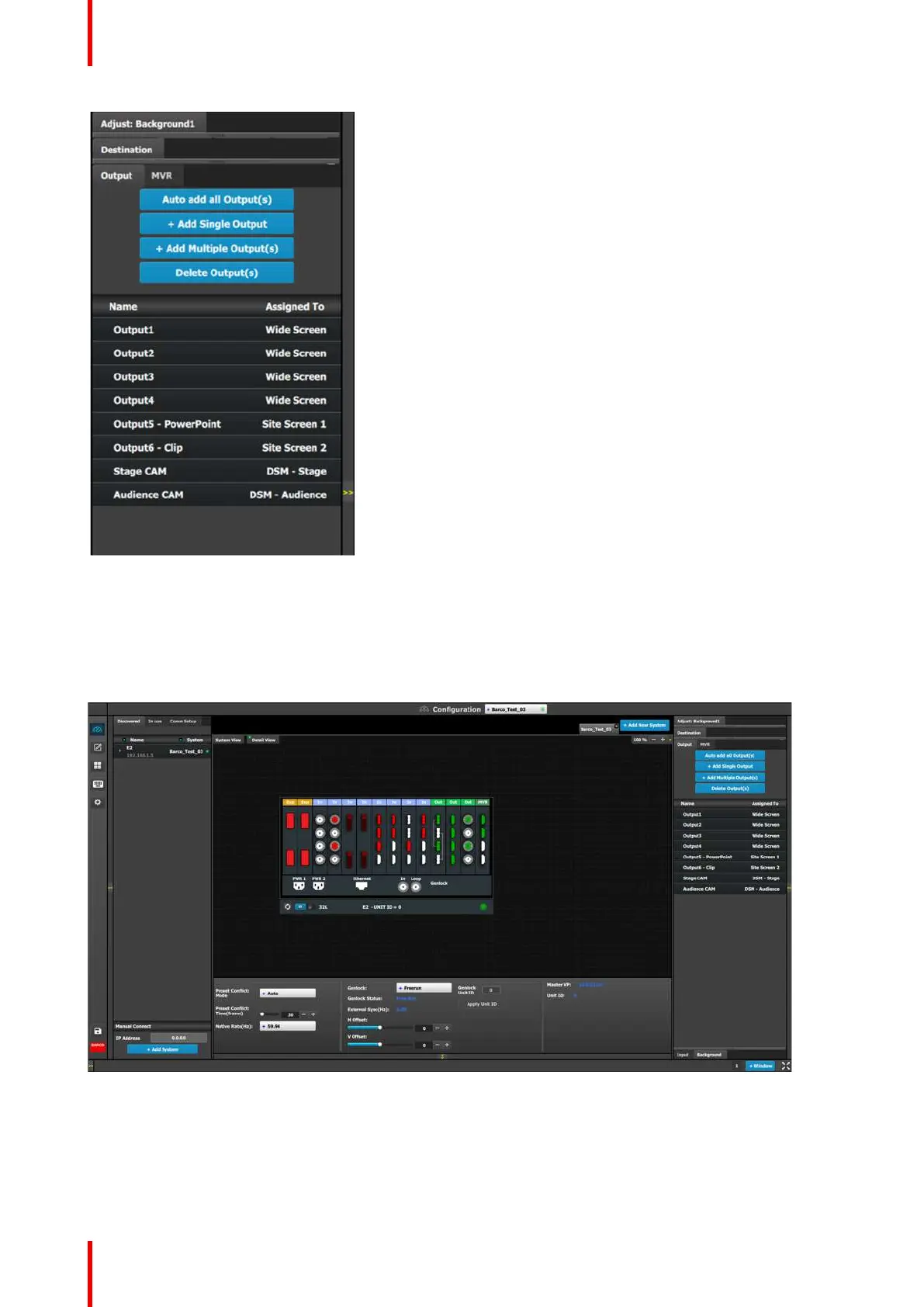

Image 6-22: Configuration menu, Adjustment area, Output
Since the software assigns automatically only 2K outputs, Dual link or 4K outputs need to be configured
manually. See How to add output section below.
The unit will query the connected device on its output for a preferred EDID and try to assign that as the output
resolution and frame rate. If no devices are connected, a standard HD resolution with the native rate of the
EMP is assigned as frame rate.
