Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 73
◦ 4,096x2,160/ 23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R half) or 4x HDMI
(quadrants)
◦ 4,096x2,160/ 50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI (quadrants)
- EDID version 1.3 compatible
- HDCP version 1.4 compatible
4.11 Quad HDMI 2.0 Output Card
General
The Quad HDMI 2.0 output card has four 19-pin HDMI connectors, which can support a HDMI video signal.
Upgrade the E2/S3/EX software version to 6.2 or higher before using the quad HDMI 2.0 output
card.
The figure below illustrates the Quad HDMI 2.0 output card’s rear panel connectors:

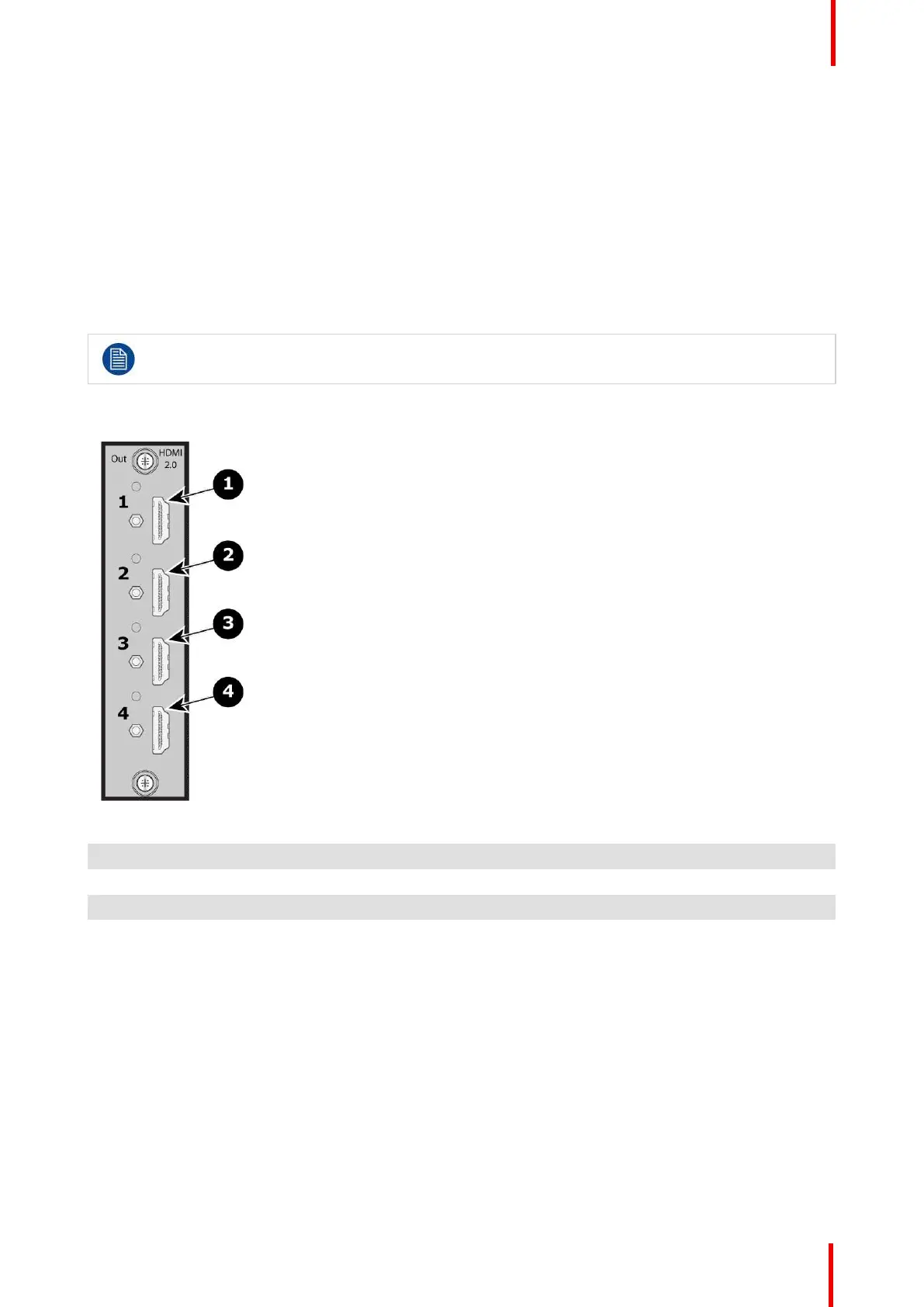

Image 4-16: Quad HDMI 2.0 Output Card Rear Panel
1 HDMI 2.0 connector —HDMI 1
2 HDMI 2.0 connector —HDMI 2
3 HDMI 2.0 connector —HDMI 3
4 HDMI 2.0 connector —HDMI 4
Features
• Process up to 4 signals independently
• 4x 19–pin HDMI connector (Type A)
Specifications
• HDMI per 2.0 specifications
• Supported format:
- up to UHD@60p 4:2:2 12 bit
- 4 high-speed (Dual Link Type) outputs or 2 UHD@60p outputs per card
