R5905948 /12 Event Master Devices 333

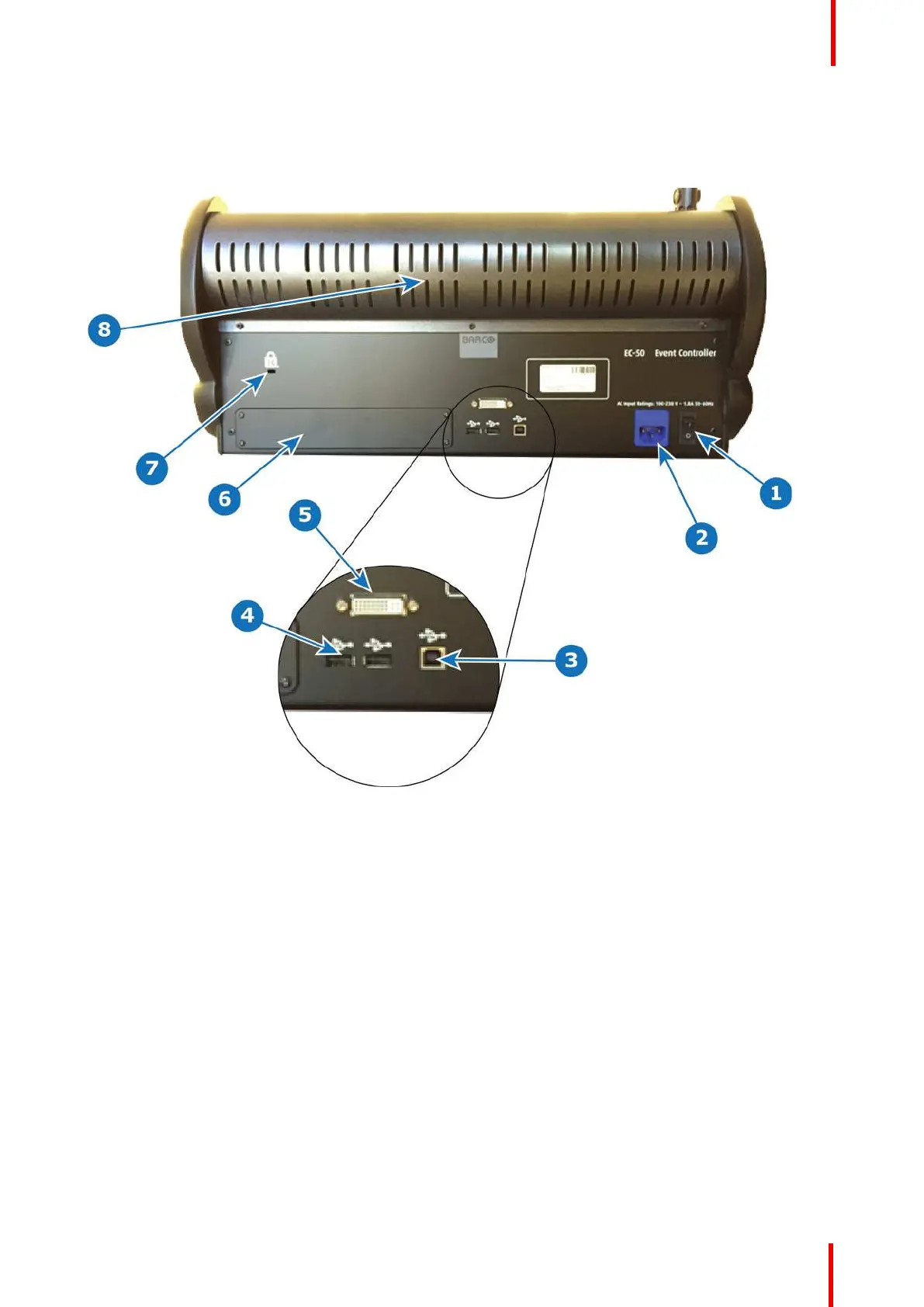

10.5 EC-50 backside overview
Overview
Image 10-5
1 Power switch
2 Power receptacle
3 USB B connector for connection to Host
system
4 2x USB A Connectors for USB peripherals,
such as mouse and keyboard
5 DVI Input connector for a standard DVI video
signal
6 Optional accessory location for future
expansions
7 Kensington Lock attachment point
8 Red effects light (located behind rear vent
holes)
Controller Orientation
