10.1 General description
General
Event Master controllers are dedicated hardware consoles specifically designed to support the Event Master
series processors, devices, and systems created from several of them. They run the Event Master Toolset
Software (EMTS) and the EC-200 on an industrial operating system with optimized hardware. They include
tactile operation style with buttons and touchscreen displays, allowing for easy and direct control of the Event
Master series processors..
There are three models of Event Master controller:
• EC-30 (compact controller).
• EC-50 (small controller).
• EC-200/EC-210 (large controller).
The EC-30 is the most compact version of the EC-series Event Master controllers. As an extension of the
EMTS, the EC-30 provides essential selections for sources, presets, layers, and destinations. The EC-30
connects as a USB peripheral to an existing Event Master control computer.
The EC-50 is a small form factor, stand-alone control surface that also incorporates a 15-inch full HD touch
screen. Its button layout is the same as the left side of the EC-200/EC-210 controller, and it has the same
functions as the left side of the EC-200/EC-210. The EC-50 requires a USB host connection to a computer
running the EMTS.
The Event Master EC-200/EC-210 controller is a dedicated hardware console specifically designed to support
Event Master series processors and devices. It runs the EMTS on a purpose built, internal computer and can
connect directly to the Event Master devices on the network.
Main components overview

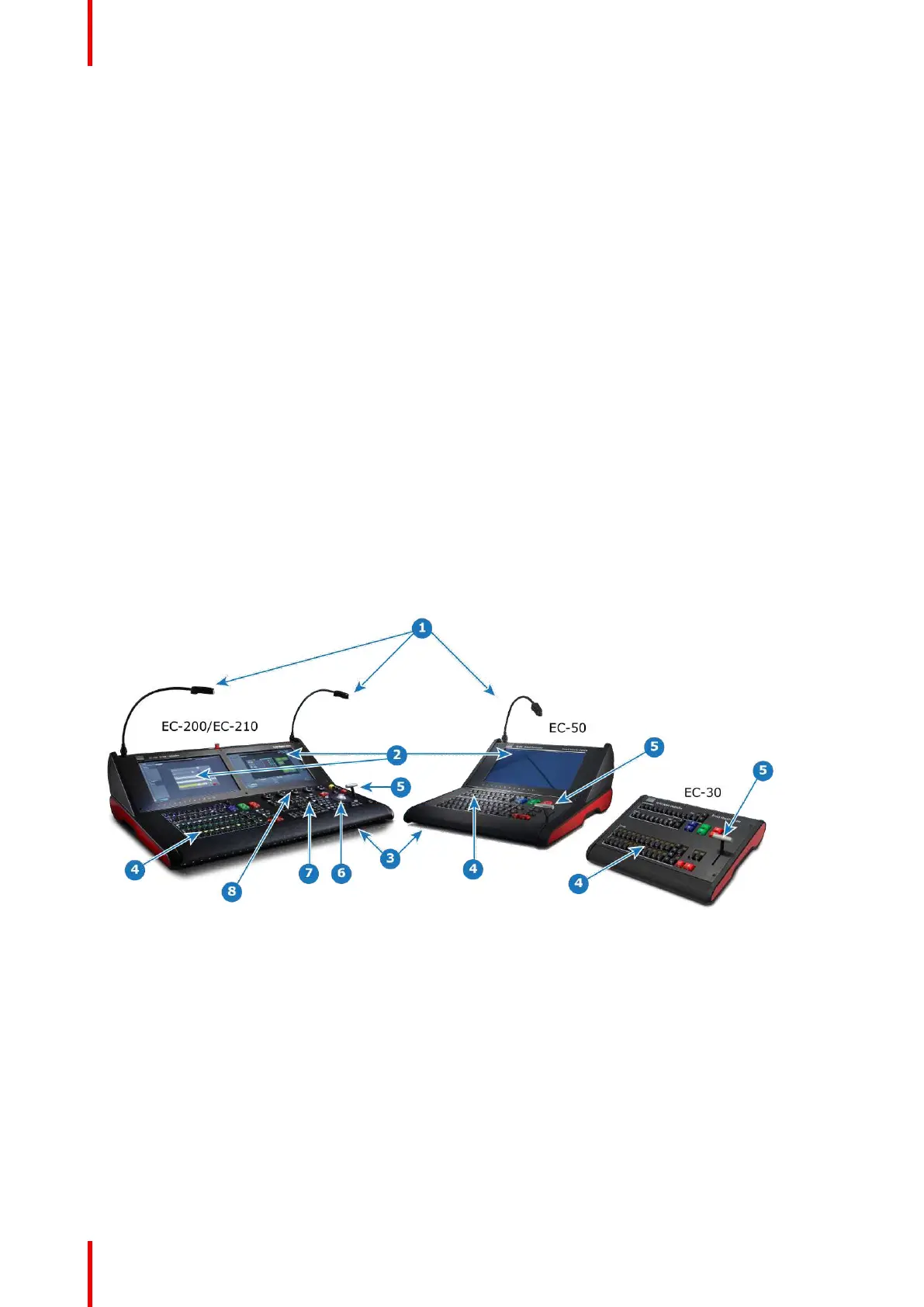

Image 10-1: Controller main components overview
EC-200/EC-210 large
controller
EC-50 small controller
EC-30 compact controller
1 2x script lights (flexible
support)
1x script light (flexible
support)
NA
2 2x Touchscreens 1x Touchscreen NA
3 Work light on front face Work light on front face NA
4 User assignable presentation
buttons
User assignable presentation
buttons
User assignable presentation
buttons
5 T-bar T-bar T-bar
6 Trackball and ring NA NA
Controller Orientation
