R5905948 /12 Event Master Devices450
R9004762 CXP Cable 1x 5M cable
R9004763 CXP Cable 2x 3M cables
R9004764 CXP Cable 2x 5M cables
15.4 Rear I/O, Link and VPU Cards

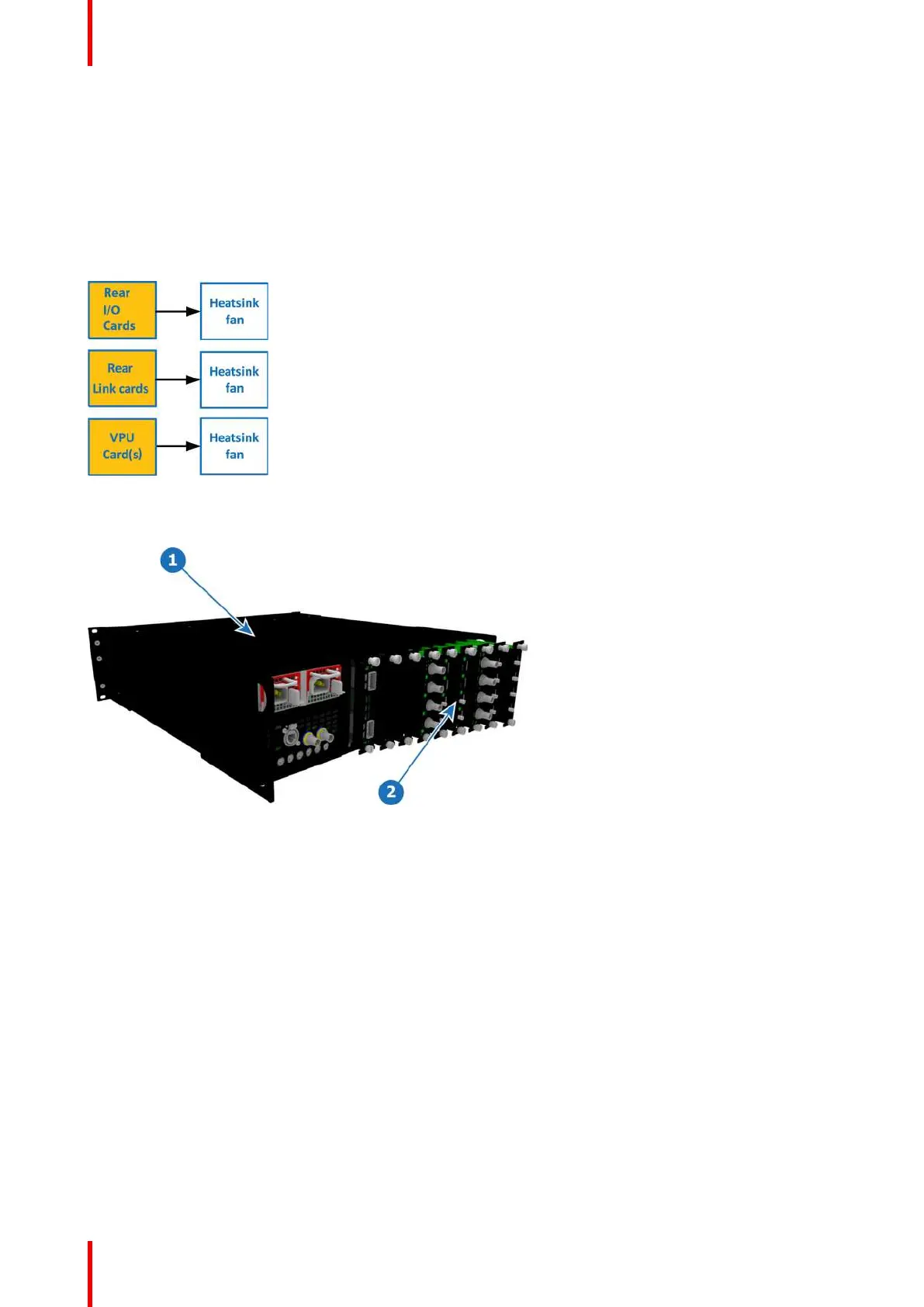

Flow chart
Image 15-3
Overview
Image 15-4
1 Chassis
2 I/O, Link and VPU cards
Concerned parts
R9004740 DVI Input
R9004741 SDI Output
R9004742 SDI Input
R9004743 HDMI Output
R9004744 DP/HDMI Input
R9004745 DVI Output
R9004746 Link Card
R9004758 VPU card S3
R9004765 Quad DP 1.2 Output
Board
R9004785 Tri-Combo Input
R9004786 Tri-Combo Output
R9004791 Quad HDMI Input Board
