When a new battery is installed, the user need to place a sticker on the inside of the metal plate
(Bottom Panel) that indicates when the battery was last replaced. The absence of sticker means the
battery has never been replaced. In this case the S/N sticker can be used for the reference date.

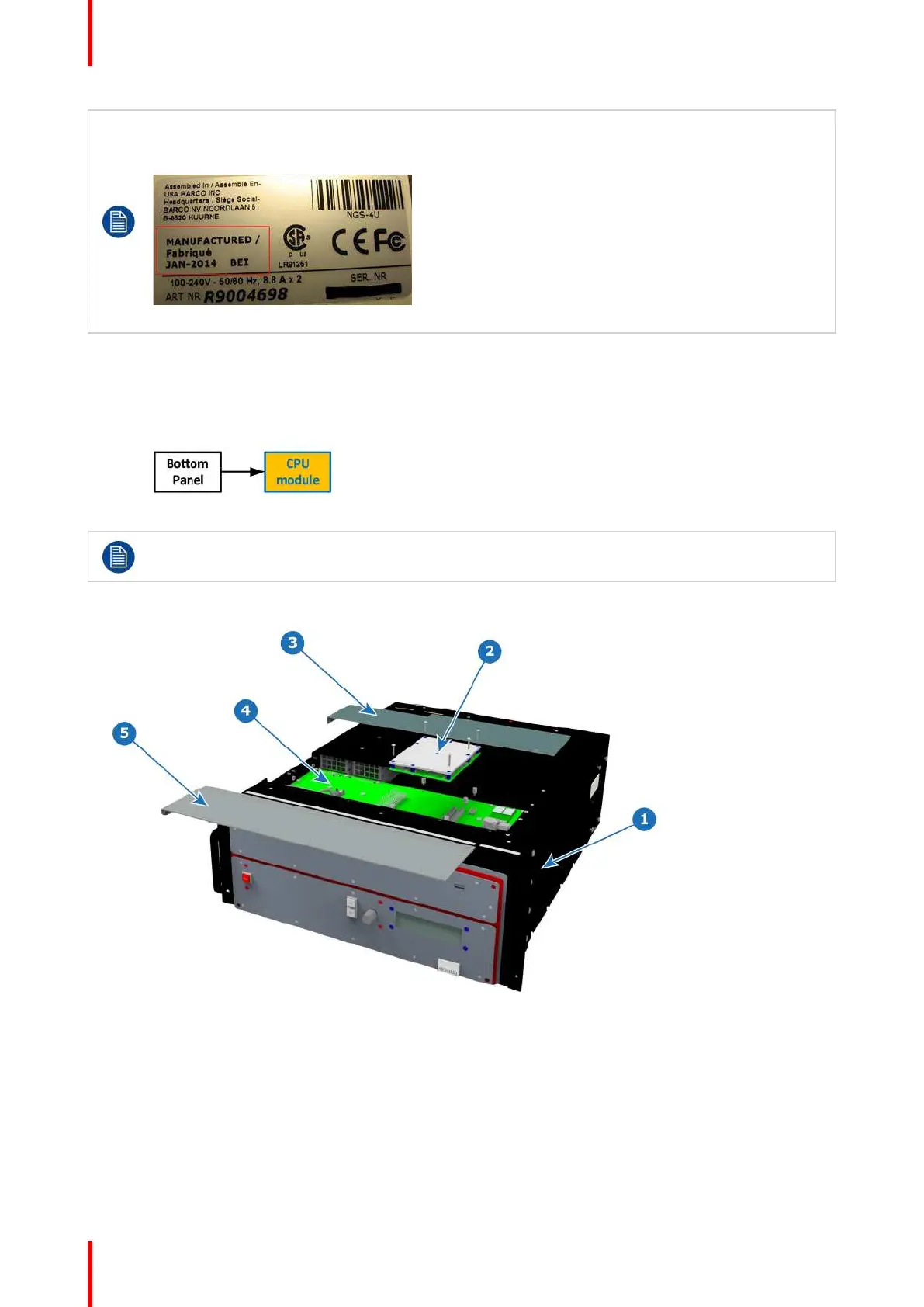

Image 14-52
14.20 CPU Module
Flow chart
Image 14-53
Before you proceed removing the CPU module you need to remove the Bottom Panel as outlined in
the related procedure.
Overview
Image 14-54
1 Chassis
2 CPU Module
3 Bottom Panel Part 1
4 System Card.
5 Bottom Panel Part 2
Concerned parts
R767264K CPU module
E2 Maintenance
