R5905948 /12 Event Master Devices 389
Note: There are 14 card slots. The first slot on the left is slot 1 and the last slot on the most right
position is 14.
2. Loosen and unscrew the top and bottom thumbscrews that are holding the card to the chassis.
3. Gently pull the card out of its slot.
Tip: You may need to wobble it a little bit up or down to loosen it from the card guides as you are
pulling out.

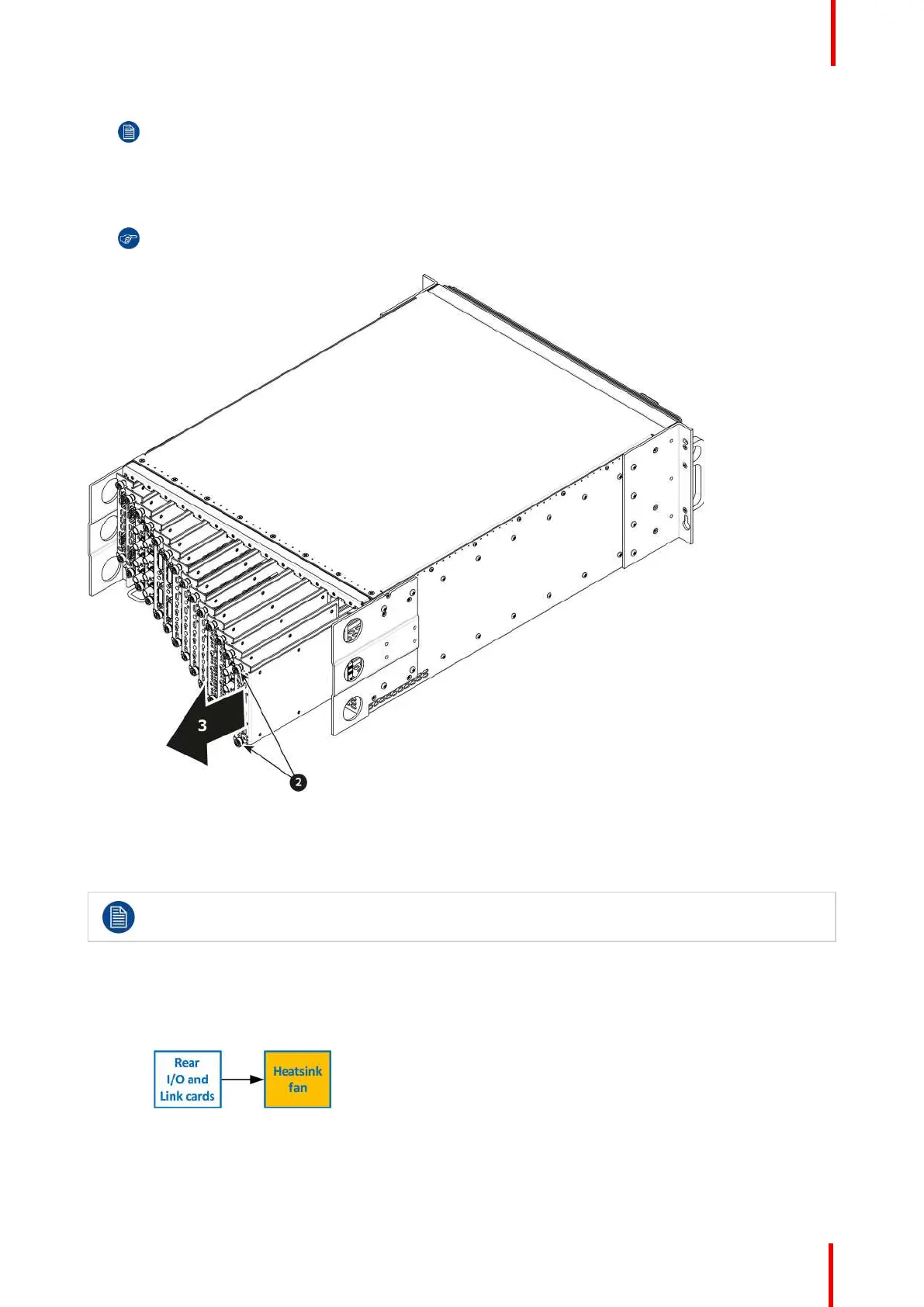

Image 14-5
How to install a card
To install a card follow the same procedure in the reverse order.
Apply a little pressure on the card until it is fully inserted in the back plane connector.
14.5 Rear I/O, VPU and Link card Heatsink Fan
Flow chart
Image 14-6
E2 Maintenance
To Next Page
