R5905948 /12 Event Master Devices398

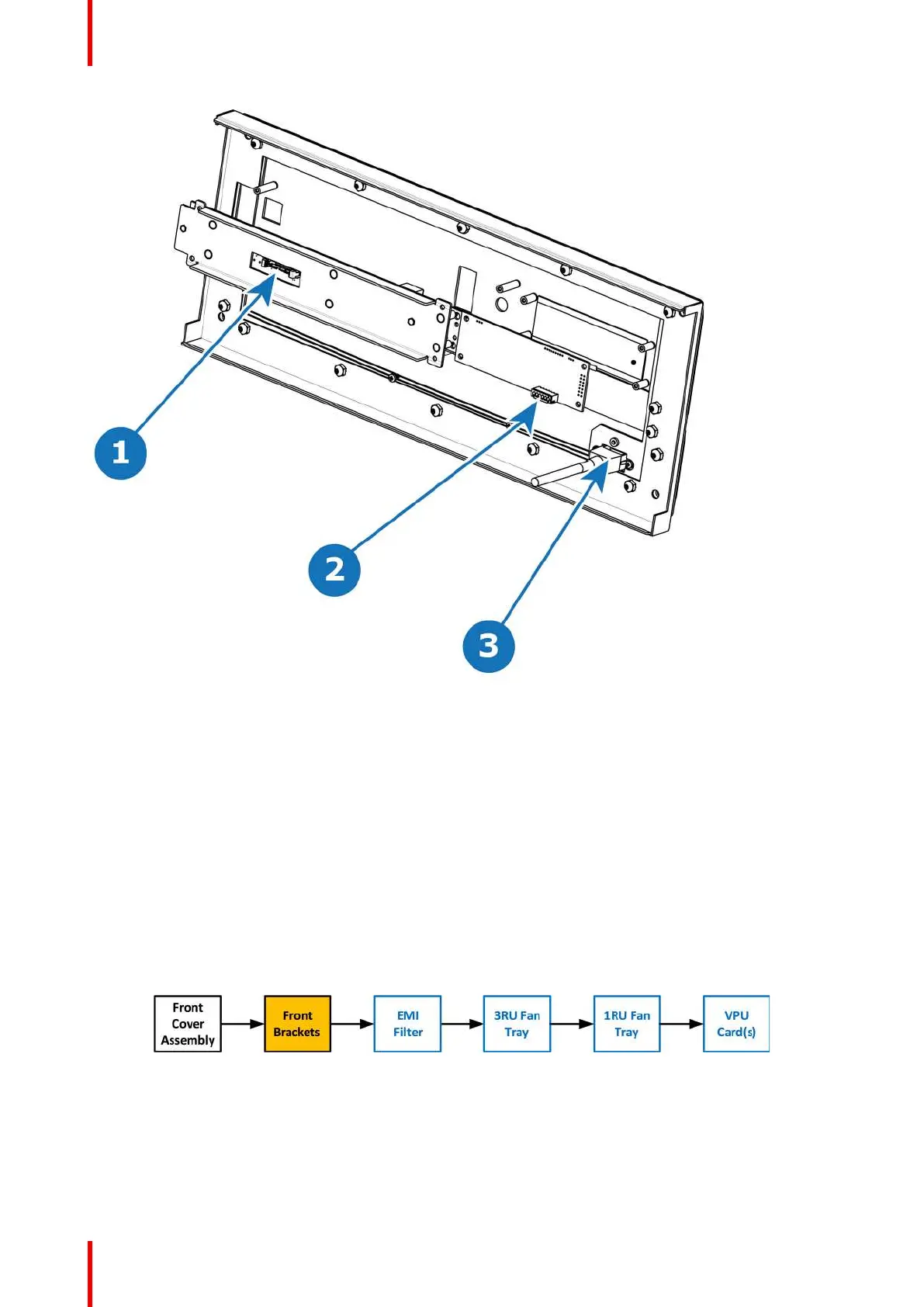

Image 14-21
1
Front Panel Connector
2
VFD Connector
3
USB Connector
3. Pull the latches away from connectors and gently pull the flat Front Panel away.
4. Remove cables as outlined in the related procedures (VFD, USB and Front Panel connectors).
How to install the Front Cover Assembly
To install the Front Cover Assembly follow the same procedure in the reverse order.
14.8 Front Brackets
Flow chart
Image 14-22
Necessary tools
None.
E2 Maintenance
