R5905948 /12 Event Master Devices 549
HDMI
• Per HDMI 1.4a specification
• On HDMI connector (Type A )
• Formats up to 2,560 × 1,600 at 60 Hz and 3,840 × 1,200 at 60 Hz (30 bits)
• 4K/UHD Supported:
- 3,840 × 2,160/23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R
half) or 4x HDMI (quadrants)
- 3,840 × 2,160/50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI
(quadrants)
- 4,096 × 2,160/23.98/24/25/29.97/30 input via 1x HDMI, 2x HDMI (L and R
half) or 4x HDMI (quadrants)
- 4,096 × 2,160/50/59.94/60 input via 2x HDMI (L and R half) or 4x HDMI
(quadrants)
• EDID version 1.3 compatible
• HDCP version 1.4 compatible
SDI
• SD/HD/3G SDI on BNC connector
• Formats:
- SD Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution)
- HD Formats: HD-SDI per SMPTE 274M, 296M, 2048
- 3G Formats: 3G-SDI per SMPTE 424M, Barcolink
• 4K/UHD Supported:
- 3,840 × 2,160/23.98/24/25/29.97/30 input via 4x HD-SDI (quadrants)
- 3,840 × 2,160/50/59.94/60 input via 4x 3G-SDI (quadrants)
- 4,096 × 2,160/23.98/24/25/29.97/30 input via 4x HD-SDI (quadrants)
- 4,096 × 2,160/50/59.94/60 input via 4x 3G-SDI (quadrants)
A.25 Standard connector pinouts
DisplayPort connector pinouts

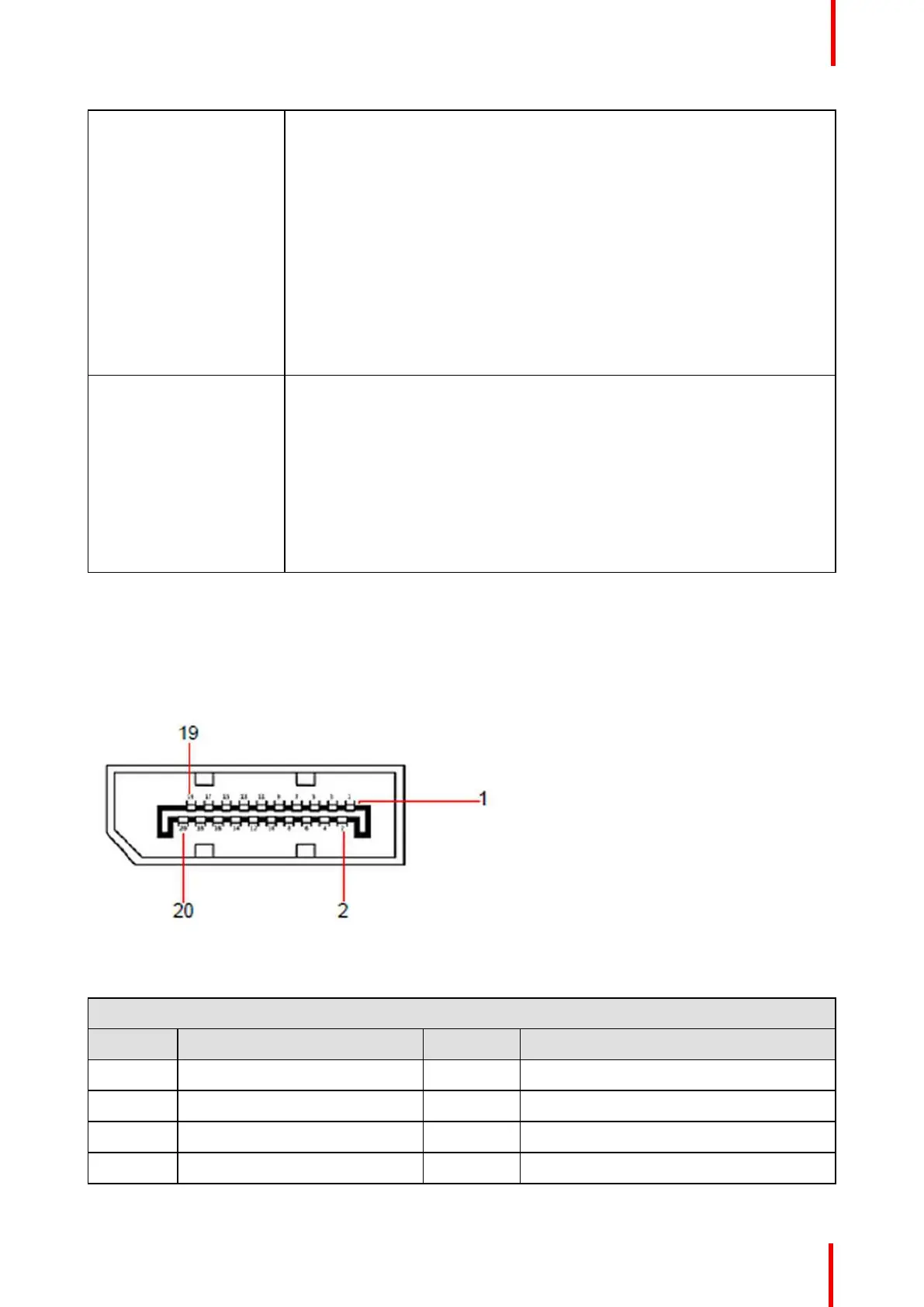

The following figure illustrates the DisplayPort connector.
Image A-1: DisplayPort connector
The following table lists the DisplayPort connector pinouts.
DisplayPort connector
Pin
Signal
Pin
Signal
1 ML_Lane 0 (p) 11 GND
2 GND 12 ML-Lane 3 (n)
3 ML_Lane 0 (n) 13 CONFIG1 (connected to Ground)
4 ML-Lane 1 (p) 14 Config2 (connected to Ground)
