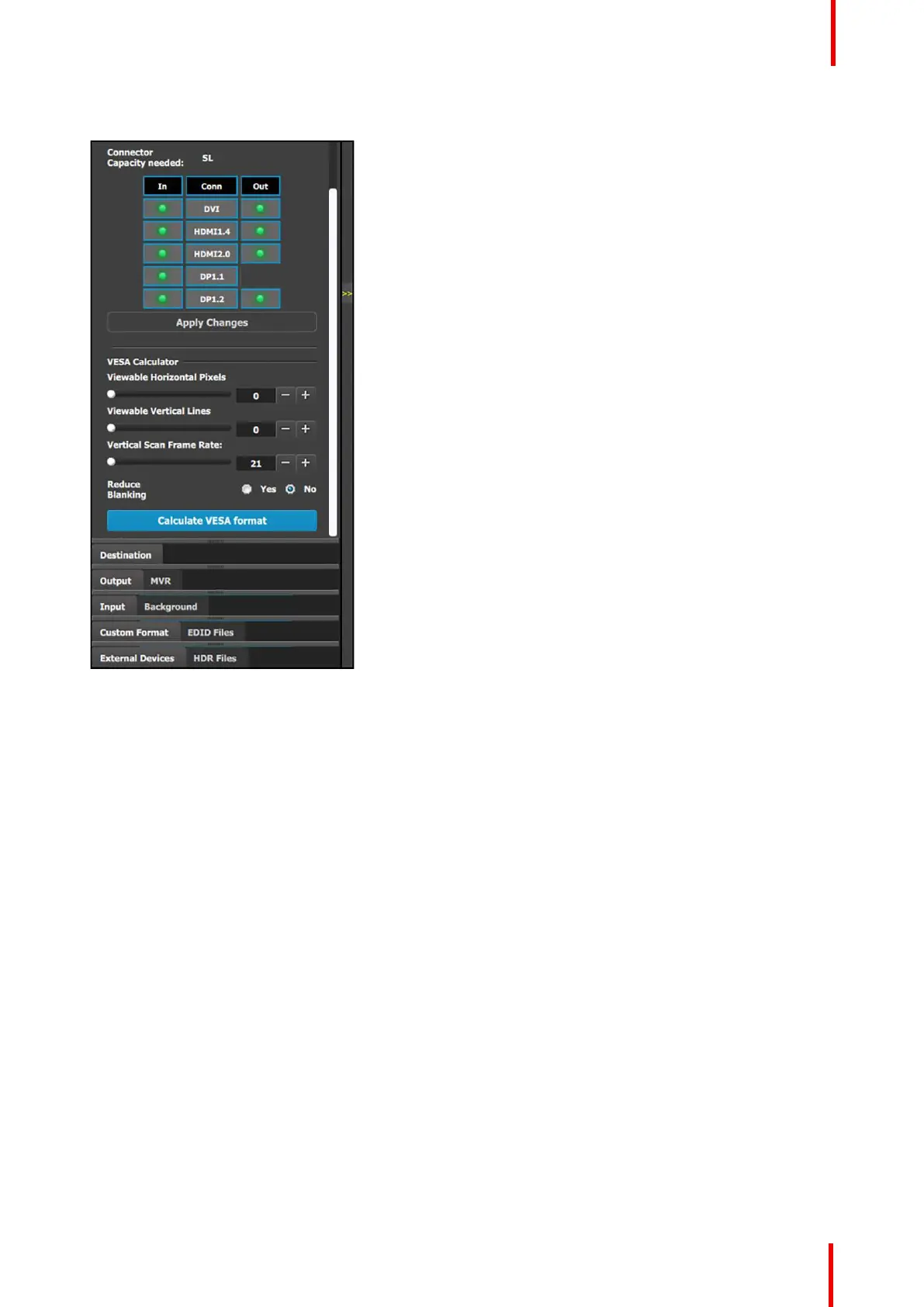

Custom Format Adjust tab – bottom half
This bottom half of this panel provides the VESA
calculator.
• Viewable Horizontal Pixels: The slider ranges
from 0 to 4096.
• Viewable Vertical Lines: The slider ranges from 0
to 4096.
• Vertical Scan Frame Rate: The slider ranges
from 21 Hz to 120 Hz.
• Reduce Blanking: The choices are “Yes” or “No.”
If “Yes” is chosen, a further dialog box allows a
choice of Reduced Blank Timing Versions.
• The Apply Changes button applies the changes to
the custom format.
6.19 Configuration Menu > Adjustment > External
Devices Configuration
General
In the External Devices configuration menu users can add external devices to a configuration and assign
commands to those external devices.
EM GUI orientation
