apply as in the Input definition: The connectors need be on the same card (or adjacent cards) and be of the
same format.
Backgrounds can be created from all input connector types, and as many as you have available connectors.
Backgrounds can also be configured from Dual Link and 4K capacity input connectors, forming a background
of one or several 3840x1080 or higher resolutions.

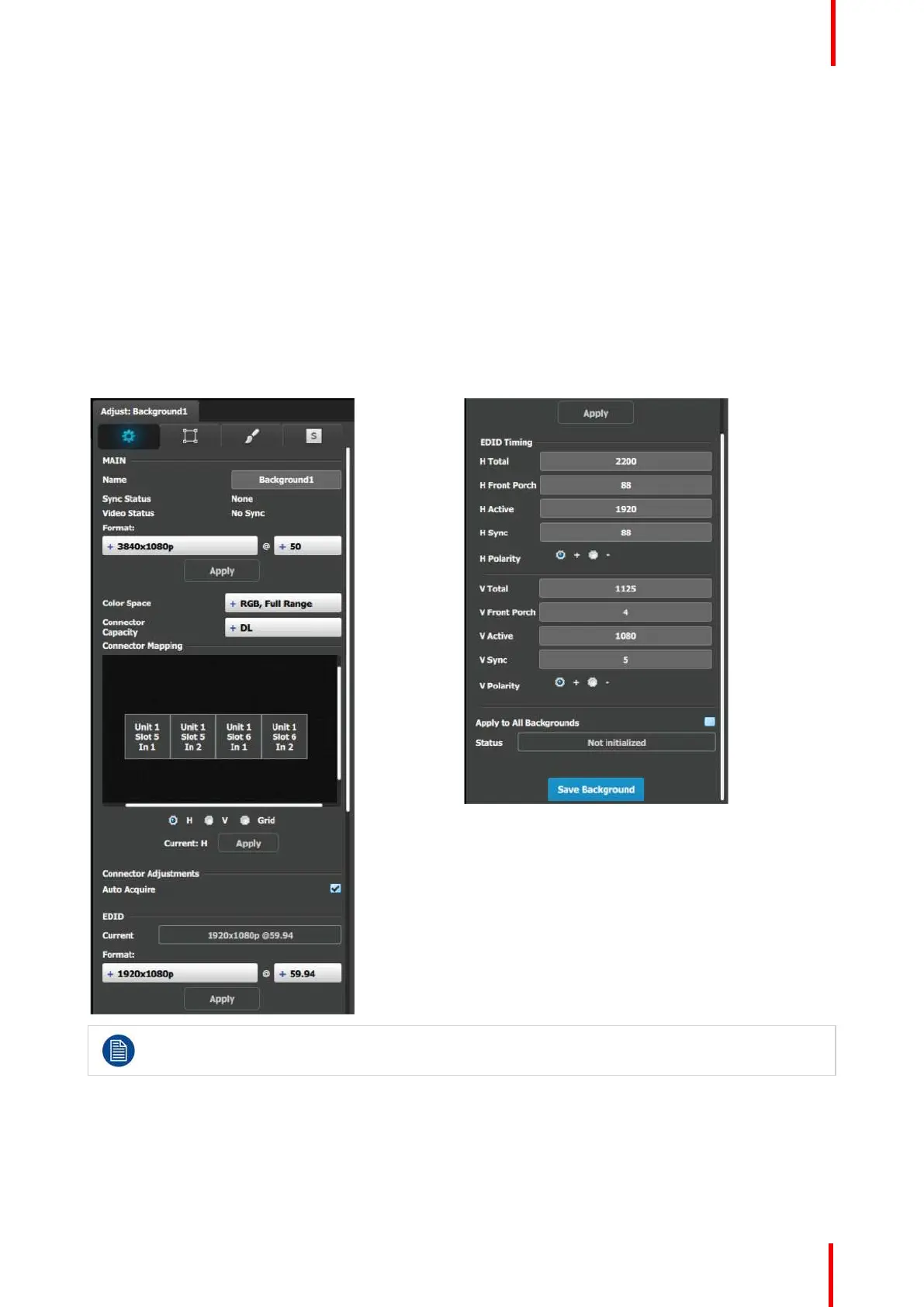

Background Adjustment panel description
If the selected background is composed by more than one input connector, the adjustment menu will include a
diagram of the configuration.
The diagram defaults to a horizontal configuration. If a vertical configuration is desired, the user clicks in the
circle next to the “V” and then the Apply button.
The Grid (early) or the H by V (later) dialog is used for a background conflating two or more inputs.
Background resolutions must match the overall output resolution of the Destination for which they are created.
Please note that connector assignments for the backgrounds cannot change from what is shown in
the diagram. The system wiring needs to reflect the same order
