Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices134

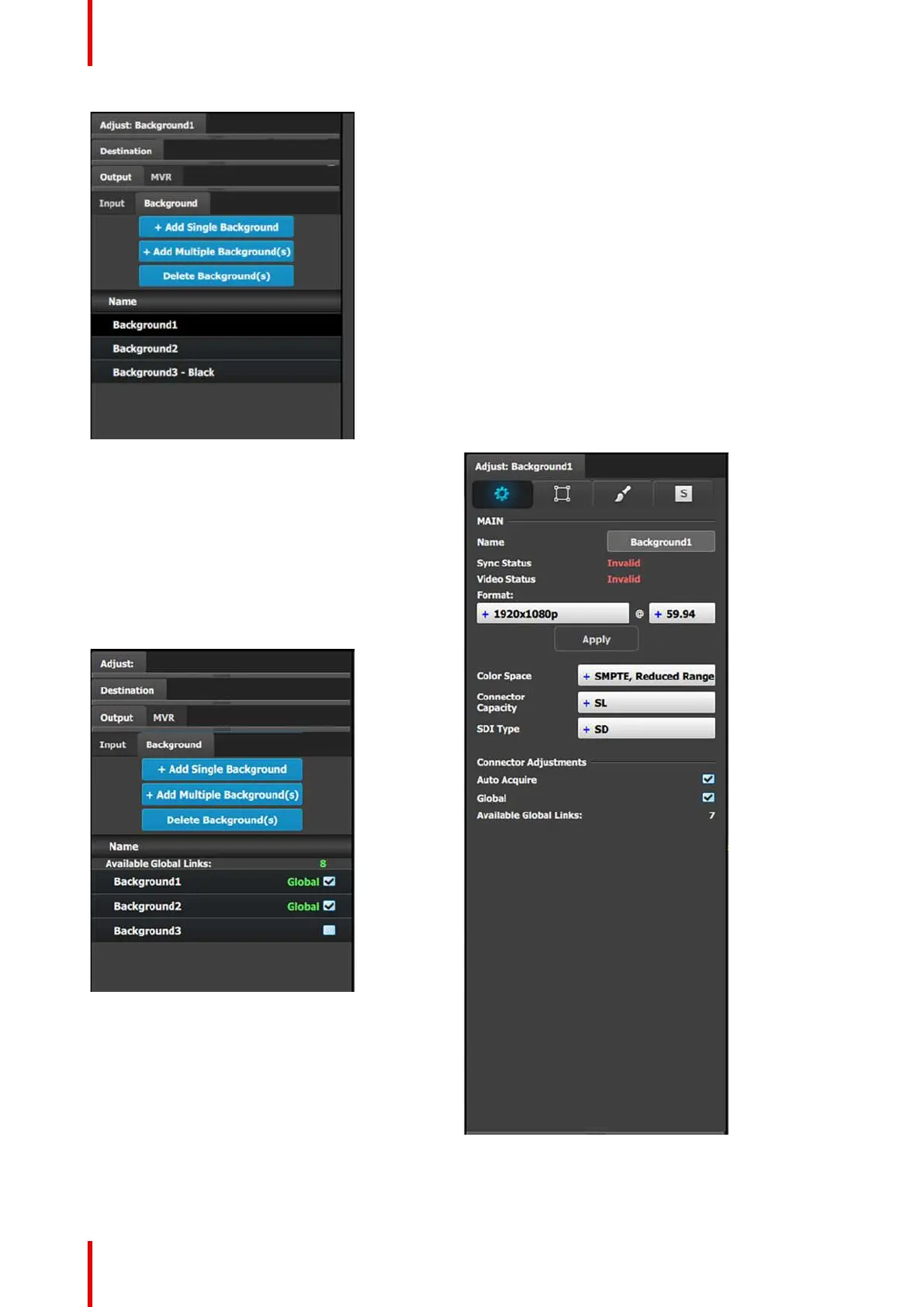

This menu provides:
• + Add Single Background: A button to manually
allocate selected Input connectors to a
Background configuration.
• + Add Multiple Background(s): A button to
manually allocate more than one Input connector
to multiple Background configurations. Each single
connector is configured as an individual
Background.
• Delete Backgrounds: A button to delete unused
or obsolete Backgrounds.
• A list of all the Backgrounds already created on the
system (e.g. Background1 and Background2).
Note: Users can now link more than two E2s, or more
than two S3–4Ks in a single system. In this
configuration, only input expansion is supported.
Users can select up to 48 SL inputs for linked E2
systems and 24 SL inputs for linked S3–4K systems to
be marked it as a "Global Input." Global Input
checkboxes are available in the Configuration page,
under the Input and Background tabs for inputs.
Backgrounds can also be designated as “Global
Inputs” by checking the "Global" checkbox on the
Adjust panel for the Background.
One of the differences between Inputs and backgrounds is in the number of connectors that can be assigned
to each one. As it was presented in the previous section, an input can be defined from 1, 2 or 4 connectors. A
background channel, however, can be defined by any number of connectors between 1 and 8. The same rules
EM GUI orientation
