R5905948 /12 Event Master Devices494

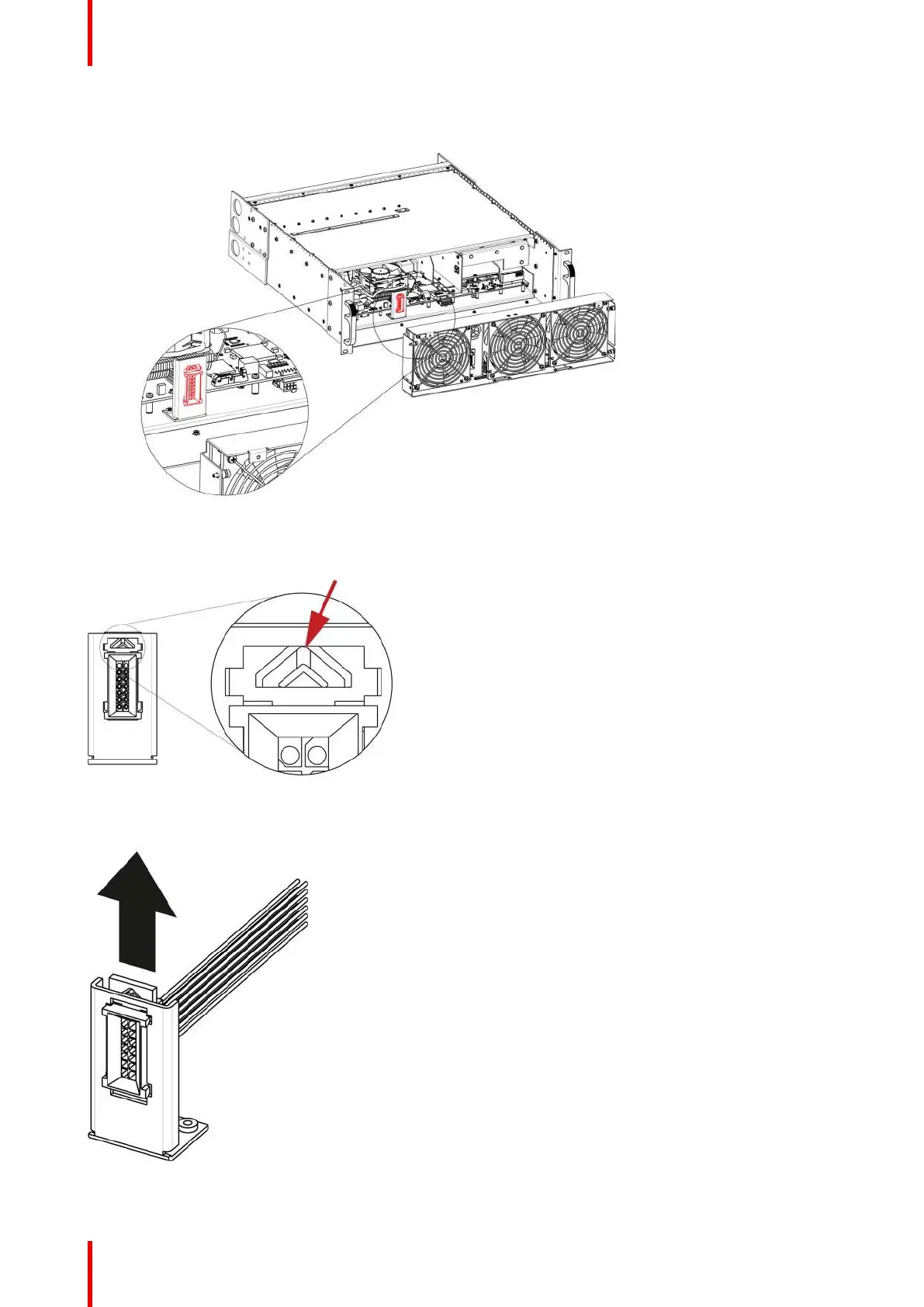

2. Locate the 3RU cable connector that is exposed after the 3RU fan tray is removed. The connector is attached
on a metal bracket that is vertically mounted in the chassis.
Image 15-88
3. Locate the snap lock on the top of the connector and push it back to release the connector from the bracket.
Image 15-89
4. Push the connector up until the slots in the metal bracket align with the flanges on the connectors.
Image 15-90
S3 Maintenance
