R5905948 /12 Event Master Devices434

Image 14-84

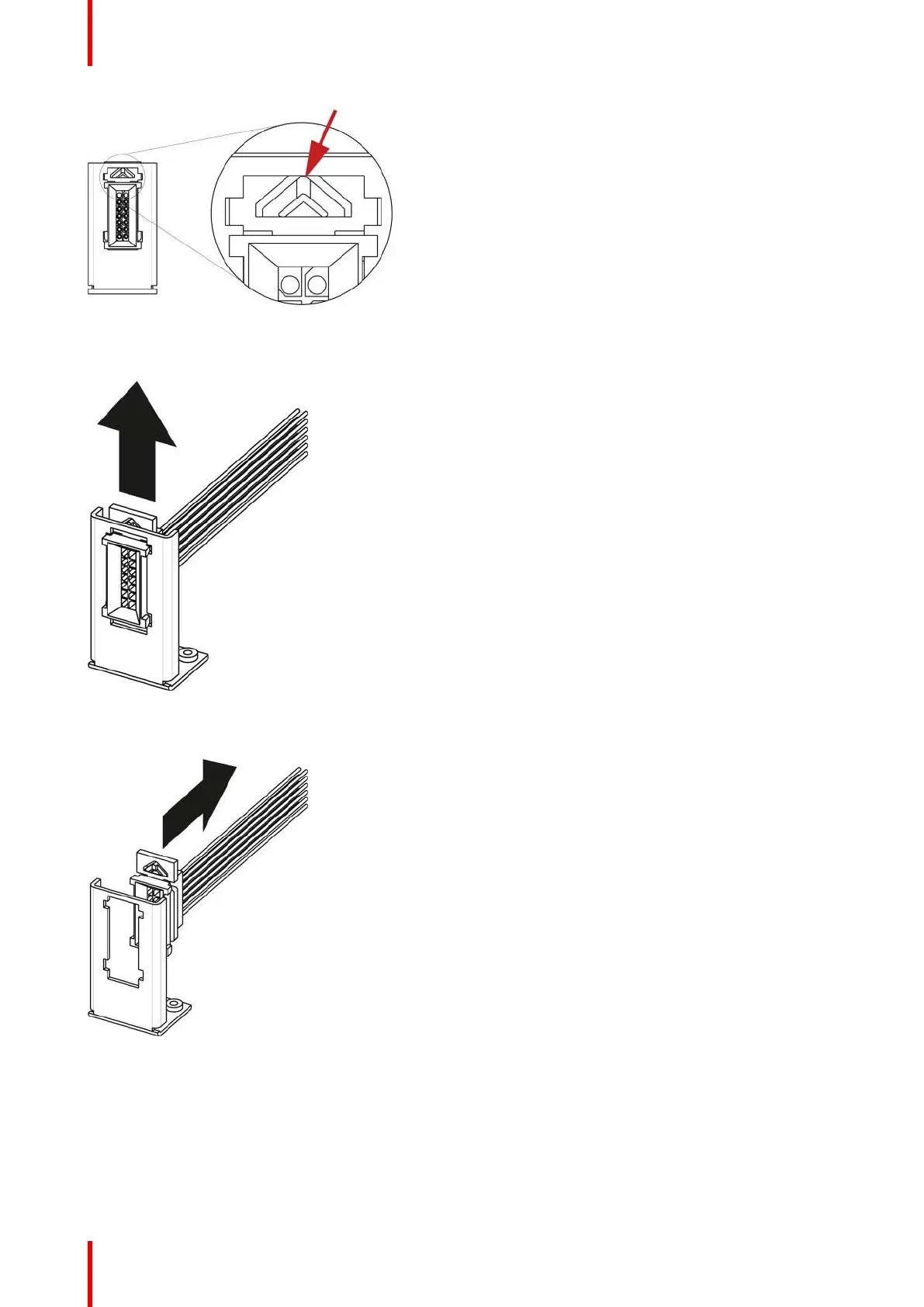

4. Push the connector up until the slots in the metal bracket align with the flanges on the connectors.

Image 14-85

5. Gently pull the 3RU cable assembly away from the bracket.

Image 14-86

6. Turn the unit upside-down and remove the bottom panel.

7. Locate the 3RU cable that is plugged on the System-Power board.
