R5905948 /12 Event Master Devices 361

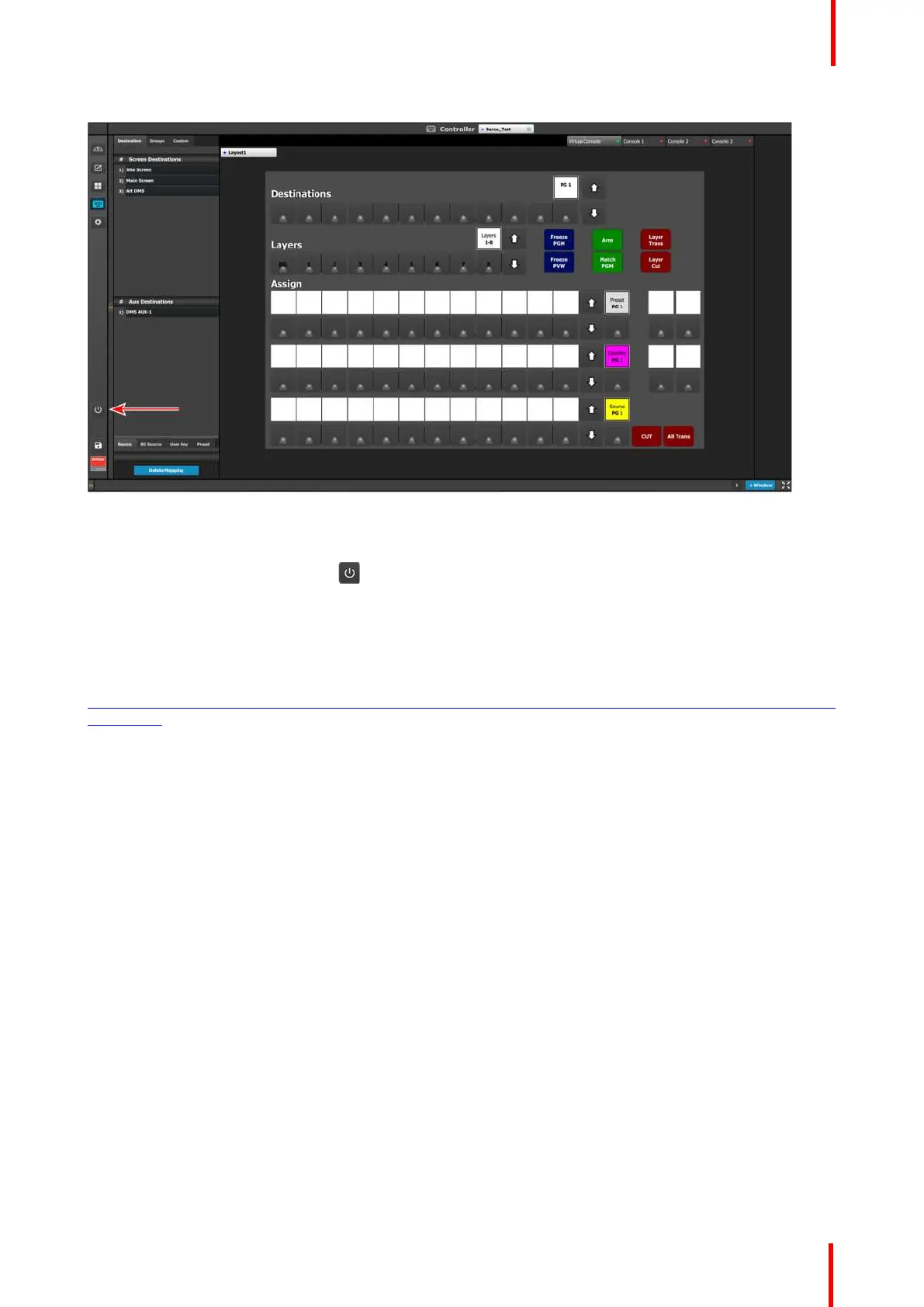

Image 12-2: Soft-Off button on the EC-200/EC-210 GUI
To shut down the EC-200/EC-210 console …
1. Click on the power-off soft button
in the Menu navigation bar.
2. Select PowerOff in the confirmation window.
The user must power cycle the main (hardware) switch to power on the console. There is no soft PowerOn
button.
For more information on the power-off soft button and SSD recovery, see “InfoT-1325: SSD Recovery on the
EC-200 Controller” on the Technical Downloads tab of the EC-200 Large event controller web page (URL:
https://www. barco. com/en/Products/Image-processing/Presentation-switchers/Large-event-controller. aspx#!
downloads).
EC-200 power-off
The user must use the power-off soft button on the EMTS GUI to shut down the unit. When the shutdown
sequence is finished, the main power switch, on the back of the unit, may then be moved to the off position
and AC power can be removed. The power supply should be de-energized for at least one minute before re-
applying mains power to the console.
EC-210 power off
The EC-210 may be powered off in the same manner as the EC-200, however, the unit may also be powered
down by use of the power button to the right of the right-hand touchscreen. When the shutdown sequence is
finished, the main power switch, on the back of the unit, may then be moved to the off position and AC power
can be removed. The power supply should be de-energized for at least one minute before re-applying mains
power to the console.
Controller Operation
